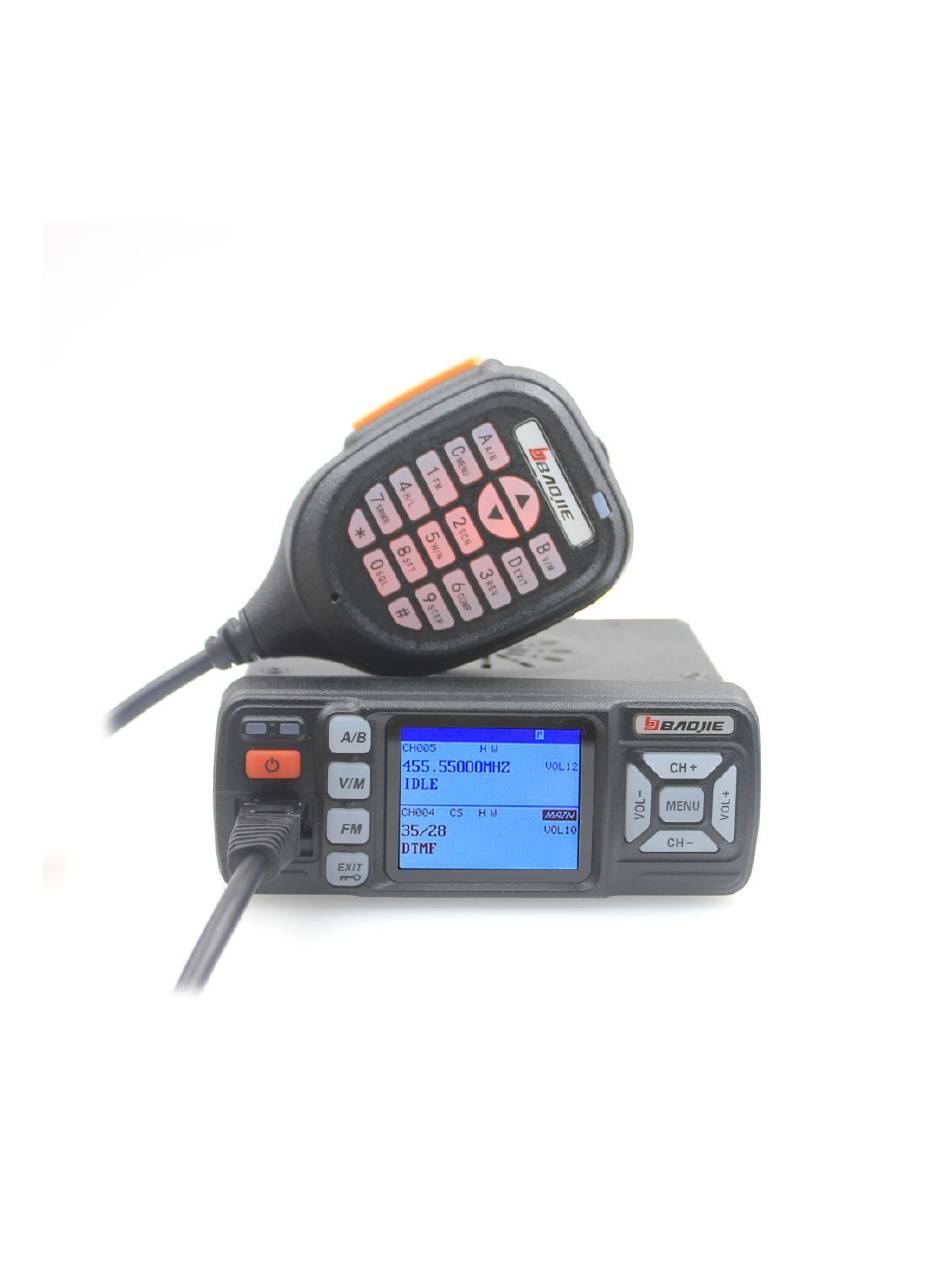

- Page 1 BAOJIE BJ-318 User's Manual...
- Page 2 Copyright (C) 2021 Mark W. Hartong This document is free: you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation, either version 3 of the License, or any later version.
-
Page 3: Table Of Contents
Table of Contents Front Panel Description ......................1 Symbols on the display ........................2 Microphone Handset Controls ....................3 Functions of control buttons ......................4 Changing the Frequency ........................4 Changing the Chanel ........................4 Changing the radio output power "HIGH/MED/LOW" ..............4 Changing the modulation width "W / N"... - Page 4 Figure 8: CHIRP BJ-318 Memories Upper (Lower Memories Similar) ......... 20 Figure 8: CHIRP BJ-318 Basic Settings ..................20 Figure 9: CHIRP BJ-318 VFO A Upper Settings (VFO B Lower Similar) ........21 Figure 10: CHIRP BJ-318 Power-on and Frequency Limits ............21 Figure 12: CHIRP BJ-318 Codes and DTMF Group ...............
-
Page 5: Front Panel Description
Front Panel Description Figure 1: BJ-318 Front Panel 1. "ON / OFF" Power. 2. Microphone Jack and Programming Cable Jack 3. VFO Receiver: "A or B" (“A” Top, “B” Bottom) 4. Operating Mode: "V / M" (V= frequency / M = memory channel). -
Page 6: Symbols On The Display
12. Increase the speaker volume. "VOL +". 13. Receive signal indicator - "RX". 14. Transmit signal indicator - "TX". Symbols on the display Symbol Meaning MAIN Active Receiver CTCSS subtone on receive (If CTCSS is included in transmission, it is indicated only during transmission) DCS subtone on receive (If DCS is included in transmission, it is indicated only during transmission) -
Page 7: Microphone Handset Controls
Symbol Meaning Low transmit power (LOW) Volume Keypad lock enabled. (Turn off by long pressing the [EXIT] button on the front panel of the station) Table 1: Display Options When transmitting the display screen indicates transmitting signal strength and when receiving, the screen indicates receiving signal strength. -
Page 8: Functions Of Control Buttons
1. "PTT" -/ Release to end to transmission. 2. Selecting the VFO Receiver: "A-B" 3. Switching Operating Modes: "V / M" (frequency / channel). 4. "MENU" Mode Selection. 5. "EXIT" from menu. 6. Increase the channel number or frequency "CH -". 7. -
Page 9: Changing The Modulation Width "W / N
5. Save the selection by pressing the [MENU] button. When high power is selected, the “H” indicator will appear on the screen, when mid power is selected, the “M” indicator will appear on the screen, and when low power is selected, the “L” indicator will appear on the screen. -
Page 10: Changing The Step Of The Frequency Transition "Step
3. Save the selection by pressing the [MENU] button. When you set the shift, the "+" or "-" indicator will appear on the screen, respectively. The shift value is set in menu 15 OFFSET. Changing the step of the frequency transition "STEP" Note! The function works only in frequency mode. -
Page 11: In Frequency Mode
2. Using the [▼] [▲] buttons, you can change the "direction" of scanning on the fly. Scanning stops on the channel in which a signal is present and continues if the signal stops. You can forcibly continue scanning by pressing one of the [▼] [▲] buttons. Stop scanning by pressing the [EXIT] button. -
Page 12: Front Panel Menu Operation
3. By buttons [▼] [▲] select the desired memory cell, confirm the selection by pressing [MENU]. Front Panel Menu Operation 1. To enter the menu, press the [MENU] button twice, the display will show the name of the menu item, and to the right its number. 2. - Page 13 Menu Function Name Function Description Values Number transmission (reverse codes). T-DTMI1 Transmits preset DTMF OFF - codes are not code transmitted. DTMF1 - DTMF8 - one of eight Codes transmitted by preset DTMF codes is pressing the [PTT] transmitted D1 + ANI - D2 + button.
- Page 14 Menu Function Name Function Description Values Number Used in conjunction with menu item 15 OFF SET OFFSET The value of the offset Values 00.000 to 90.000 MHz. of the transmit frequency from the Used in conjunction with receive frequency. menu item 14 SFT. STEP Frequency Step Possible values: 2.5 / 5 / 6.25 /...
-
Page 15: Personal And Group Call
Menu Function Name Function Description Values Number DTM-TM The interval between Possible values: 50/100/150 / digits in the DTMF 200mS message Note: During DTMF sending, voice input from the microphone is blocked Sets the SQL squelch Possible values: SQL1-SQL9, value. Recommended value is SQL 1 RPT (REV) Switching on the... -
Page 16: Group Call To Specific Stations
Group call to specific stations For example, the group contains stations with ANI codes: 12345, 12789, 23888. You can only make a call to stations whose ANI code begins with 12. To do this, press the [PTT] key and type [1] [2] [*] [*] [*] on the microphone keypad. In this case, the call will not sound in the station with ANI-code starting with 23. -
Page 17: Master Control Id Code
Master Control ID Code Master code. Used to activate control codes. Alarm Code Alarm code. Upon receipt of this code, the receiving remote station outputs an alarm signal to the speaker and the message "ALARM" on the display. If the ANI code is received together with this code, then it is also displayed on the display. -
Page 18: Current State
To activate, press the [PTT] button, while holding it, dial the code for resetting the locks (# 22) and then the master code of the required station (54321). The selected station will go into transmit mode for 7 seconds. and it will be possible to listen to their surroundings through their microphone. -
Page 19: Technical Specifications
Step 7. Set to memory channel Menu > Menu > CH-MEM (17) > arrow to wanted channel # > Menu > Menu > Exit Technical Specifications Frequency range VHF: 136 MHz - 174 MHz UHF: 400 MHz - 480 MHz Emitter class F3E (FM) Antenna impedance... - Page 20 Figure 4: Dimensions...
-
Page 21: Appendix A: Standard Components
Appendix A: Standard Components Items Quantity Body Hand Microphone Rack Power Cord Screws and Microphone Clip Instruction... -
Page 22: Appendix B. Chirp Programing
Thus, CHIRP is versioned by the date on which it was created. The latest build available should be used. An experimental driver has been created for CHIRP specific to the BJ-318. It is based on the BJ- 218 and LT725UV driver and is integrated into the CHIRP baseline. This Appendix discuss the BJ-318 unique aspects of CHIRP. - Page 23 An unmodified copy of the downloaded radio image should be saved before programing. Figure 6: CHIRP BJ-318 Download Instructions (Upload Similar) The BJ-318 sequence for both upload and download is the same. Figure 7: CHIRP BJ-318 Specific Information...
-
Page 24: Bj-318 Menu Options
BJ-318 Menu Options Figure 8: CHIRP BJ-318 Memories Upper (Lower Memories Similar) Figure 9: CHIRP BJ-318 Basic Settings... - Page 25 Figure 10: CHIRP BJ-318 VFO A Upper Settings (VFO B Lower Similar) Figure 11: CHIRP BJ-318 Power-on and Frequency Limits...
- Page 26 Figure 12: CHIRP BJ-318 Codes and DTMF Group...
-
Page 27: Bj-318 Limitations
VFO mode or front panel Upper Screen Color BJ-318 screen colors can be set. Sky Blue and Black appear the same Lower Screen Color BJ-318 screen colors can be set. Sky Blue and Black appear the...
