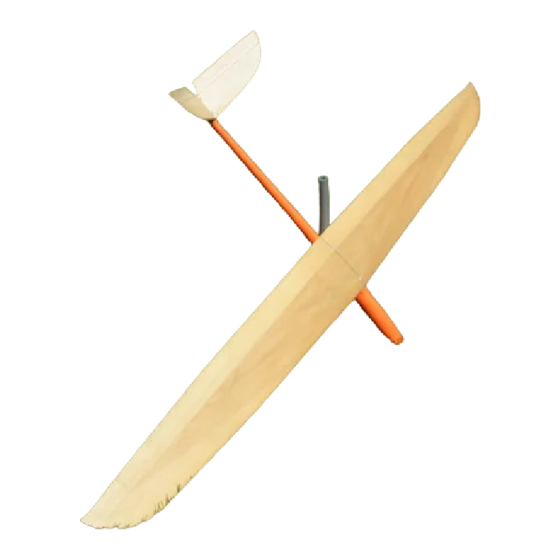

Blejzyk RC IGI 2,2 M Quick Start Manual

Welcome and congratulations on your purchase. We hope that our product will provide you

with many enjoyable flying hours as well as be a pleasure to build.

Please treat this manual as a guide only. Your own modifications to the building process are

welcome.

We believe that the following steps are essential in achieving a success with the model:

Before commencing with the assembly read the entire manual.

Trial fit all parts.

All glued parts (and their mating components) should be sanded using 240 sandpaper.

This applies mainly to all plywood reinforcements in fuselage, tow hook and inner nose

cone.

Accurately and neatly finished models usually fly better.

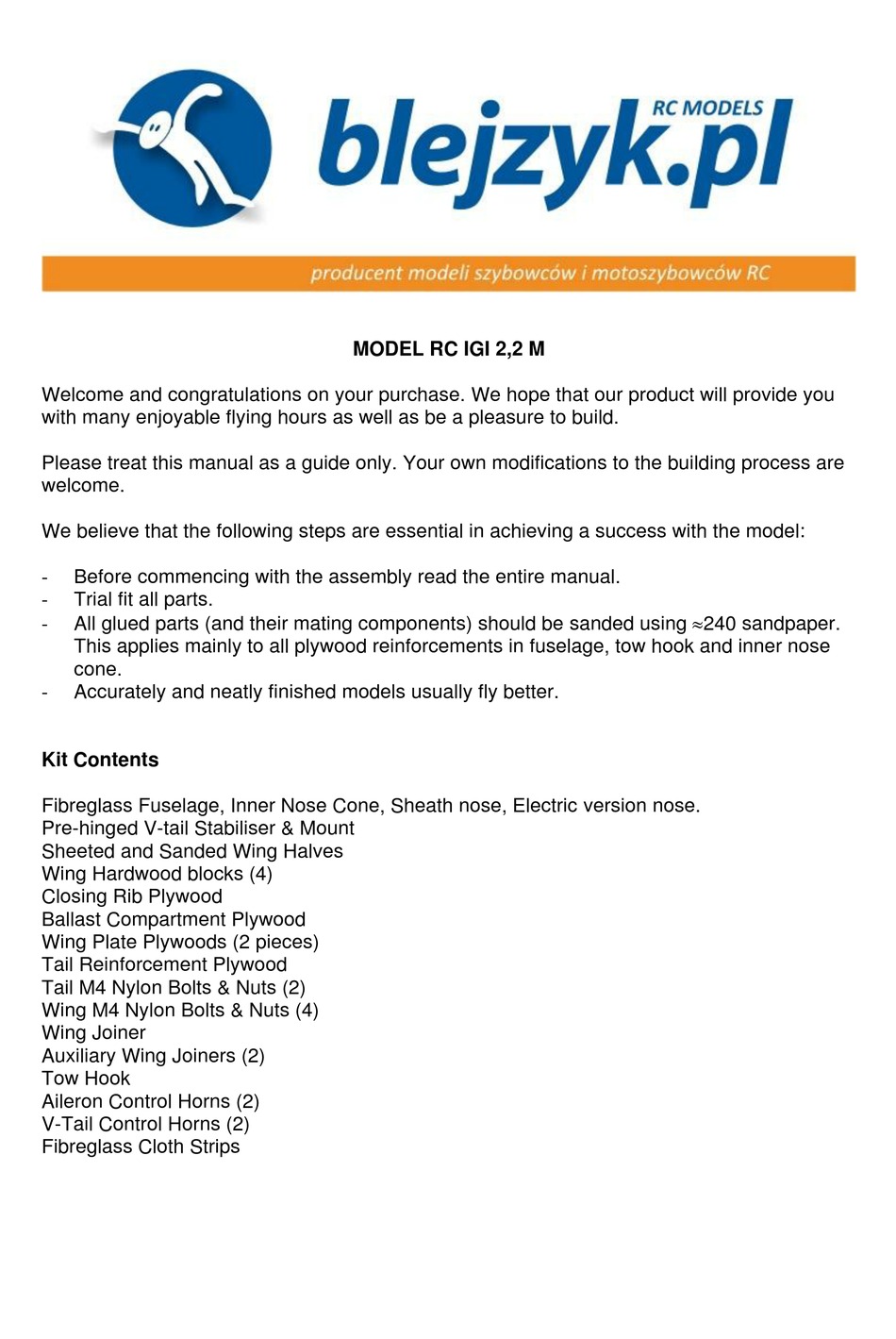

Kit Contents

Fibreglass Fuselage, Inner Nose Cone, Sheath nose, Electric version nose.

Pre-hinged V-tail Stabiliser & Mount

Sheeted and Sanded Wing Halves

Wing Hardwood blocks (4)

Closing Rib Plywood

Ballast Compartment Plywood

Wing Plate Plywoods (2 pieces)

Tail Reinforcement Plywood

Tail M4 Nylon Bolts & Nuts (2)

Wing M4 Nylon Bolts & Nuts (4)

Wing Joiner

Auxiliary Wing Joiners (2)

Tow Hook

Aileron Control Horns (2)

V-Tail Control Horns (2)

Fibreglass Cloth Strips

MODEL RC IGI 2,2 M

Table of Contents

Do you have a question about the RC IGI 2,2 M and is the answer not in the manual?

Page 1 MODEL RC IGI 2,2 M Welcome and congratulations on your purchase. We hope that our product will provide you with many enjoyable flying hours as well as be a pleasure to build. Please treat this manual as a guide only. Your own modifications to the building process are welcome.
Page 2 Wings The wing joining system for this model consists of a steel joiner bar and a brass joiner box. The steel joiner bar is permanently glued into one wing, while the brass joiner box is permanently glued into the other wing, see Figure 1. Blank-off one end of the brass box with a flat piece of fibreglass soaked in resin.
Page 3 Assemble the wing halves together and mark the position of the hardwood blocks on the skin, as per the general arrangement drawing. Remove the foam to the depth of the hardwood blocks and shape the blocks to achieve a loose fit. Cut the wing closing ribs from the supplied ply.
Page 4 FUSELAGE Cut a hole in the wing seating so that a receiver can be inserted. Glue the wing seating plates using 5min epoxy. The wing seating plates can be shaped to a slight V angle to accommodate the wing dihedral. Assemble the wing halves and drill 4mm holes in the fuselage (and wing seating plates) using the wing holes as guides.
Page 5 Glue the motor mount using epoxy and carbon fibre tows. Trim the inner nose cone to suit the motor/reduction gear shape. TAPE CUT TO SUIT MOTOR Figure 2 BLEJZYK wishes you many enjoyable flights with your IGI model. Made in Poland by:...
