Summary of Contents for Phoenix Mecano DEWERT OKIN IPROXX SM

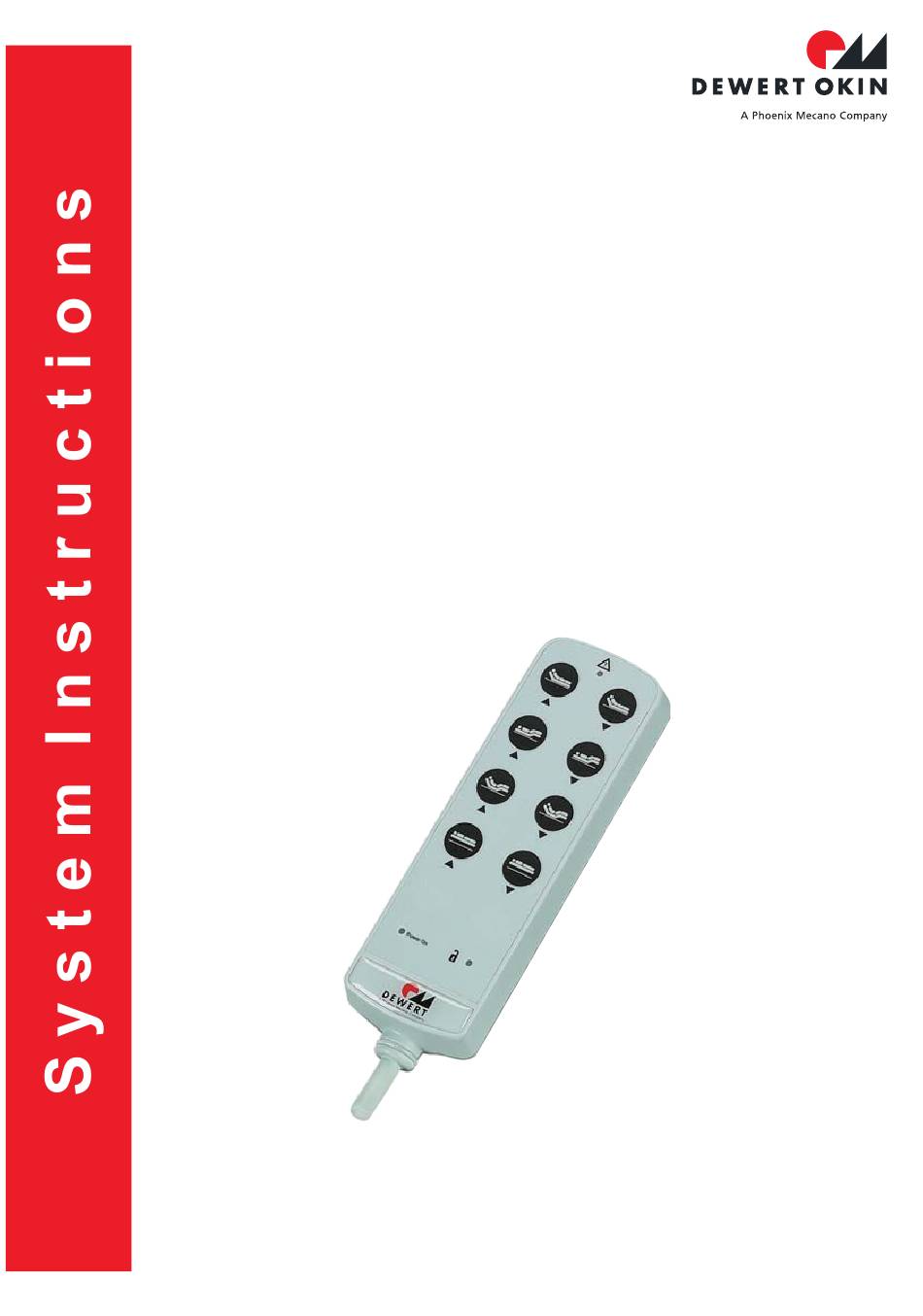

- Page 1 System Instructions Handset ® IPROXX SM/SM+/SMP Issue 02/2013 02/2013 ID No. 56170...
-
Page 2: Table Of Contents
® IPROXX SM/SM+/SMP Contents General Information..................page 2 Designated Use................... page 3 ® Key Configuration IPROXX SM..............page 4 ® Function of the Locking Device IPROXX SM..........page 4 ® Function Diagram IPROXX SM..............page 5 Function of the Display................page 5 ®... -
Page 3: Designated Use
In order to guarantee single-fault protection you can lock the actuator movements via the integrated locking device. In doing so, the motor circuits are disconnected by electromechanic switch elements. turn the locking switch to mode "locked", check this by activating the adjustment key, if locking is activated but movements will still be possible please exchange handset for a new one Information on battery power... -
Page 4: Key Configuration Iproxx Sm
® IPROXX SM/SM+/SMP ® Handset IPROXX SM Key Configuration ® Example: Handset IPROXX SM with 9 adjustment keys. Function LED Backrest down Footrest down Reset down Back+footrest Stroke adjustment up down Antitrendelenburg Power On Mode LED Power-ON LED Lock symbol ®... -
Page 5: Function Diagram Iproxx Sm
® Function Diagram IPROXX SM Putting into operation Connect the handset to the DEWERT system. Mode locked Socket wrench turned to andset is completely locked. Power On Mode LED doesn’t glow . Power-ON LED glows dimly Mode released green Socket wrench turned to handset adjustment functions are released. - Page 6 ® IPROXX SM/SM+/SMP ® Handset IPROXX SM+ Key Configuration ® Example: Handset IPROXX SM+ with 10 adjustment keys. Function LED Backrest down Footrest down Reset down Back+footrest Stroke adjustment up down Trendelenburg Power-ON LED Power On Antitrendelenburg Lock symbol Mode LED ®...
- Page 7 turning the socket wrench to the symbol the adjustment functions on the handset can be released for the nursing staff / . These functions vary depending on the model (Mode released). care personnel The Mode LED next to the lock glows yellow , the Power-ON LED glows brightly...
-
Page 8: Function Of The Display
® IPROXX SM/SM+/SMP Function of the display Function LED - LED glows green when a key is pressed, visual display of first-error security. Power-ON LED - LED glows constantly when mains / battery voltage available Battery-powered operation (mains voltage not available) glows only when key is pressed with battery charging circuit... -
Page 9: Key Configuration Iproxx Smp
® Handset IPROXX SMP Key Configuration ® Example: Handset IPROXX SMP with 10 adjustment keys. Function LED Backrest down Footrest down Status LED Reset down Back+footrest down Stroke adjustment up Trendelenburg Power-ON LED Power On Power On Antitrendelenburg ® Back of IPROXX SMP handset Rotary lock Socket wrench Back of handset... - Page 10 ® IPROXX SM/SM+/SMP Function of the locking device ® turning the socket wrench on the back of the IPROXX handset 4 modes can be released or locked. To put the handset into operation, connect it to a DEWERT control unit or a DEWERT drive with integral control PCB.
-
Page 11: Function Diagram Iproxx Smp
® Function Diagram IPROXX SMP Putting into operation Connect the handset to the DEWERT system. Mode locked Socket wrench turned to handset is completely locked. Status LED doesn’t glow Power-ON LED glows dimly Mode released Socket wrench turned to the adjustment functions on the handset can be released for the nursing staff / care personnel Status LED... -
Page 12: Function Of The Display
® IPROXX SM/SM+/SMP Function of the display Function LED - LED glows green when a key is pressed, visual display of first-error security. Power-ON LED glows constantly when mains / battery voltage available Battery-powered operation (mains voltage not available) glows only when key is pressed with battery charging circuit flashes yellow... -
Page 13: Trouble-Shooter's Guide
Trouble-shooter’s Guide to Detect and Eliminate Faults The following table has been developed to help you detect and eliminate common faults. If you come across a fault that is not listed here, please contact your supplier. Problem Possible Cause Remedy Mode LED / Lock LED - Fault in the handset - Contact your supplier/... - Page 14 ® IPROXX SM/SM+/SMP Cleaning ® IPROXX handset was designed so that it would be easy to clean. Its smooth surfaces simplify the cleaning process. 1 Be sure to disconnect the handset cable from the drive or control unit before you start cleaning.
- Page 15 EC Declarations Declaration of Conformity In compliance with Appendix IV of the EU EMC Directive 2004/108/EC In compliance with Appendix VI of the EU RoHS Directive 2011/65/EU The manufacturer: DewertOkin GmbH Weststraße 1 32278 Kirchlengern Germany declares that the following product ®...
- Page 16 DewertOkin GmbH Weststraße 1 32278 Kirchlengern, Germany Tel: +49 (0)5223/979-0 Fax: +49 (0)5223/75182 http://www.dewertokin.de Info@dewertokin.de 02/2013 ID No. 56170...
