Revision OSTYK42102030 Quick Start Manual

4
D R.250
LED 4
LED 3
SW1
SW2
LED 5
SW3
C
SW4
ANTENNA WIRE - 18IN 24AWG
STRANDED WIRE WITH BLACK
PVC INSULATION.
WRAP AS SHOWN
DIGIKEY P/N 609-3900-ND
B
Inputs/Outputs:
1. Power input – Gnd (19), 12 OR 24VDC (18)
2. Output to Operator – Sig (5), Ground (6), 24VDC (7)
3. INSIDE switch Input – (1/2)
4. OUTSIDE Switch Input – (3/4)
5. Switch to manually transmit RF signal to operator (SW3) with LED5
6. Switch to learn/reset INSIDE RF button (SW1) with LED3
7. Switch to learn/reset OUTSIDE RF button (SW2) with LED4
8. RF signal from INSIDE activate button (RF1)
9. RF signal from OUTSIDE activation button (RF2)
10. Fire panel - (8/9)
11. Access Control – In, COM, Out (10/11/12)
A
12. Lock connector – NO, COM, NC (13/14/15) with LED2
13. Signal Delay selector switch (SW4)
14. Sensor – (GND, 24VDC, COM, OCC, SSS, ODS) – (20/21/22/23/24/25)
15. Antenna – the interface module will have an antenna for receiving signals.
(The antenna can be extended outside the metal enclosure for improved signal reception.)
16. Audible beeper for programming feedback
17. Disable Outside Pushbutton (26/27)

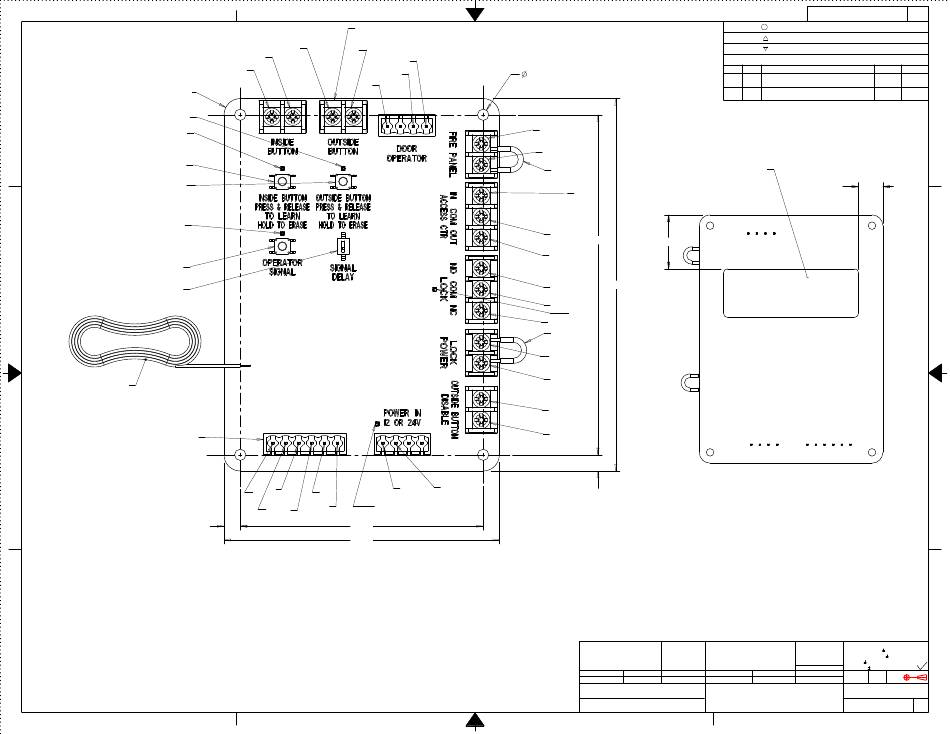

THIS IS A Pro/E GENERATED DRAWING/ALL CHANGES TO THIS DRAWING MUST BE MADE AT THE Pro/E SYSTEM.
