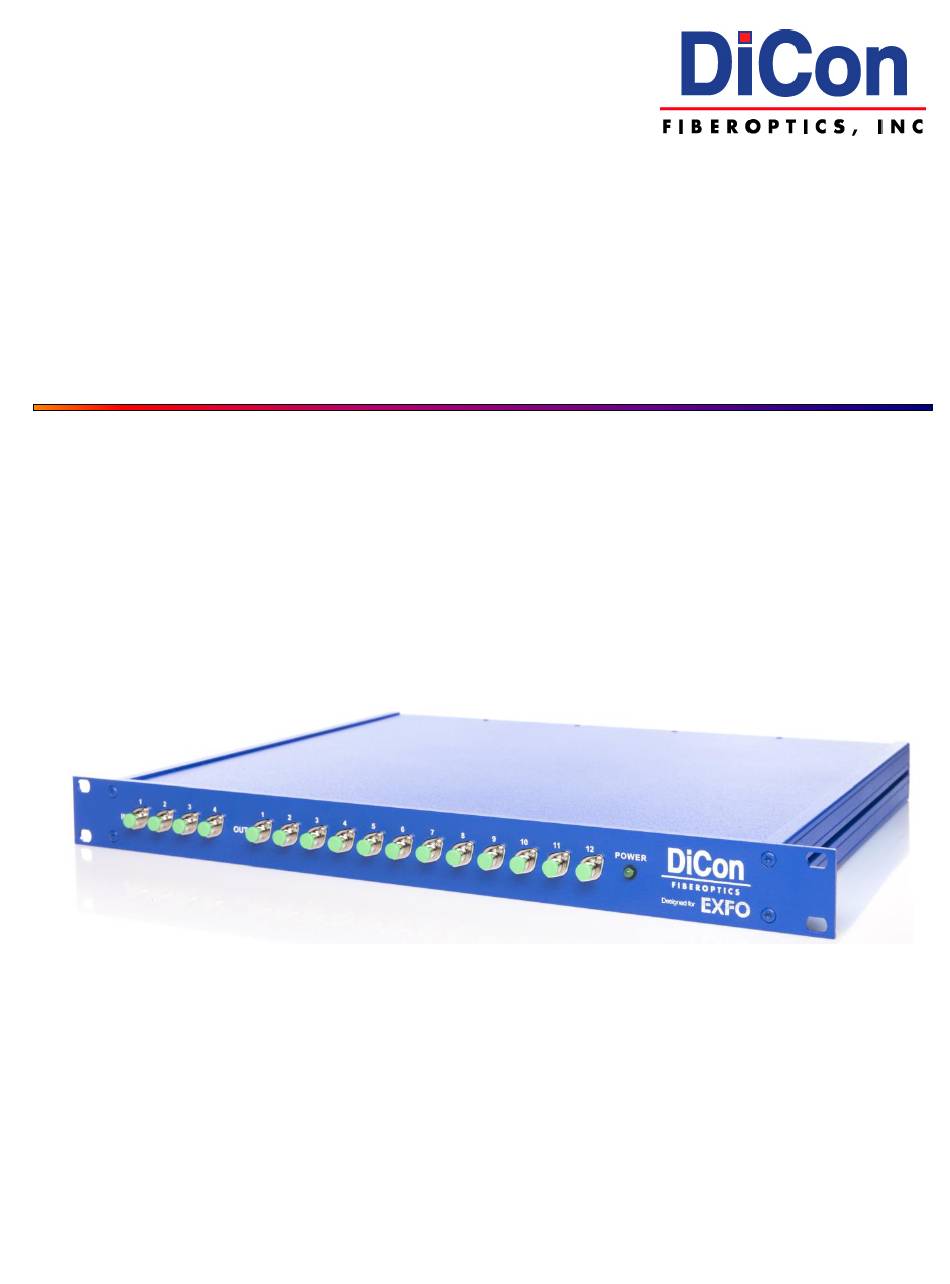

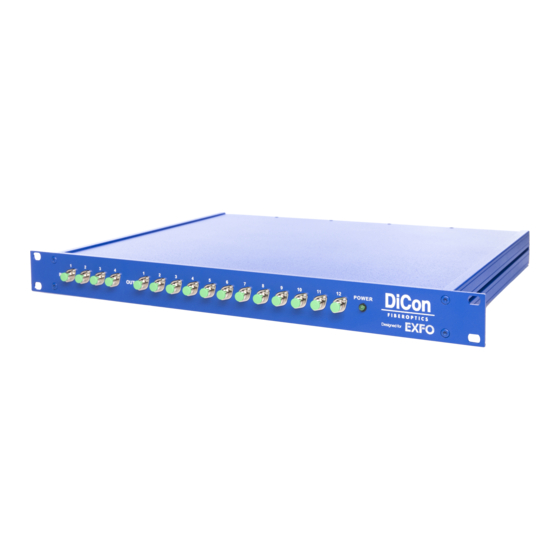

- Page 1 MXS-9100 Optical Switch Rackmount (Hardware Revision B) Operation Manual...
- Page 2 DiCon reserves the right to correct technical and typographical errors in this manual at any time, without prior notice. In no event shall DiCon be liable for errors in this manual or for any damages arising out of, or relating to, this manual.
- Page 3 “Goods made in the United States; enter as American Goods Returned (‘AGR’)” and state the reason for the return to the United States. DiCon will refuse all returns that are not properly documented. All risks of any such refused shipment are the sole responsibility of Buyer.
-
Page 4: Table Of Contents
PECIFICATIONS ............................6 QUIPMENT ATINGS ........................7 ECHANICAL PECIFICATIONS MxN Matrix, MXS-9100 Chassis Size ....................7 Singlemode 1xN, MXS-9100 Chassis Size ..................... 7 Multimode 1xN, MXS-9100 Chassis Size ....................7 – 1U ........................8 ECHANICAL IMENSIONS – 2U ........................9... -
Page 5: Safety Information
MXS-9100 Optical Switch Rackmount Operation Manual Safety Information General Safety Information WARNING ➢ Do not install or terminate fibers while a light source is active. Never look directly into a live fiber and ensure that your eyes are protected at all times. -
Page 6: Product Overview
Available as a MxN matrix optical switch, or as an array of multiple 1xN optical switches, the MXS-9100 is the perfect solution for sharing centralized instruments or automated tests in manufacturing. Electrical Specifications... -
Page 7: Mechanical Specifications
MXS-9100 Optical Switch Rackmount Operation Manual Mechanical Specifications Chassis Size Rating Height: 43.65 mm 483 mm (19”) Width: Depth: 342 mm Height: 88.0 mm 483 mm (19”) Width: Depth: 434.5 mm Height: 177 mm 483 mm (19”) Width: Depth: 434.5 mm... -
Page 8: Mechanical Dimensions - 1U
MXS-9100 Optical Switch Rackmount Operation Manual Mechanical Dimensions – 1U For illustrative purposes an MXS-9100 MEMS 16x16 Matrix Switch is shown (Unit: mm) 91592 Rev. A2 June 21, 2019... -
Page 9: Mechanical Dimensions - 2U
MXS-9100 Optical Switch Rackmount Operation Manual Mechanical Dimensions – 2U For illustrative purposes an MXS-9100 MEMS 32x32 Matrix Switch is shown (Unit: mm) 91592 Rev. A2 June 21, 2019... -
Page 10: Mechanical Dimensions - 4U
MXS-9100 Optical Switch Rackmount Operation Manual Mechanical Dimensions – 4U For illustrative purposes an MXS-9100 MEMS 96x96 Matrix Switch is shown (Unit: mm) 91592 Rev. A2 June 21, 2019... -
Page 11: Panel Labeling - 1U
Panel Labeling – 1U Front Panel Labeling Screw Heads INPUT Connectors OUTPUT Connectors Power Status Mounting Brackets For installation in a rack For illustrative purposes labeling shown for MXS-9100 MEMS 16x16 Matrix Switch Rear Panel Labeling 91592 Rev. A2 June 21, 2019... -
Page 12: Panel Labeling - 2U
Front Panel Labeling Power Status LED INPUT Connectors OUTPUT Connectors Mounting Brackets For installation in a rack For illustrative purposes labeling shown for MXS-9100 MEMS 32x32 Matrix Switch Rear Panel Labeling Rocker Switch Toggle to turn Ethernet RJ45 unit on and off... -
Page 13: Panel Labeling - 4U
Power Status LED Front Panel Labeling INPUT Connectors OUTPUT Connectors Mounting Brackets For installation in a rack For illustrative purposes labeling shown for MXS-9100 MEMS 96x96 Matrix Switch Rear Panel Labeling Rocker Switch Ethernet RJ45 Toggle to turn Connector unit on and off... -
Page 14: Items Included In Shipping Box
MXS-9100 MEMS Rackmount Optical Switch • Power Cords, one each for use in the following: o North America (DiCon P/N: 50302-000 or equivalent) o Europe (DiCon P/N: 5040095-001 or equivalent) o UK (DiCon P/N: 5040096-001 or equivalent) o Japan (DiCon P/N: 50303-001 or equivalent) o China (DiCon P/N: 50304-001 or equivalent) •... -
Page 15: Remote Operation
The MXS-9100 can be controlled remotely over the network via the Ethernet interface. NOTE: The MXS-9100 has an integrated Perle IOLAN DS1 Device Server to enable network access to the native RS232 interface of the switch module inside the chassis. For simple setups, follow the steps described below. -
Page 16: Communicating With The Mxs-9100
NOTE: Once the Perle Device Server has an IP, it can be configured. The default serial configuration is set at the factory and should not be changed. The DeviceManager program should normally be used only to find and set the IP address of the MXS-9100. Changing the serial configuration may cause communication problems. -
Page 17: Command Conventions
MXS-9100 Optical Switch Rackmount Operation Manual Command Conventions The MXS-9100 remote commands are described below. Command Interface Notes • Tokens enclosed in square brackets [] represent input parameters. Replace these tokens with data specific to the task. • Portions of commands that are lowercase are optional. The uppercase portions are required. -
Page 18: Scpi Commands
MXS-9100 Optical Switch Rackmount Operation Manual SCPI Commands SCPI Command Set SCPI Command Description :ROUTe[1…n]:CLOSe This command will park the indicated input to the off position. This command will open the selected input port, setting it back to the position it :ROUTe[1..n]:OPEN... - Page 19 MXS-9100 Optical Switch Rackmount Operation Manual ROUTe[i]:CLOSe This command positions input channel i to the park position. In the park position there is no optical continuity. Examples: ROUT4:CLOS Closes input channel 4. ROUTE5:CLOS Closes input channel 5. ROUT2:CLOSE Closes input channel 2.
- Page 20 MXS-9100 Optical Switch Rackmount Operation Manual ROUTe[i]:SCAN [output] This command sets input channel i to the specified output channel. Example: ROUT4:SCAN 5 Sets input channel 4 to output channel 5. ROUT1:SCAN 2 Sets input channel 1 to output channel 2.
- Page 21 MXS-9100 Optical Switch Rackmount Operation Manual ROUTe:SCAN:OUT? [n] This command will return the input channel for any given output, [n]. Examples: If output channel 1 is connected to input channel 2, this ROUTe:SCAN:OUT? 1 command will return 2. If output channel 2 is connected to input channel 4, this ROUTE:SCAN:OUT? 2 command will return 4.
- Page 22 MXS-9100 Optical Switch Rackmount Operation Manual STATus? This command returns the module status string according to table below. Table 1. Module Status Description Status Value Description UNINITIALIZED The module is not initialized. INITINPROGRESS The module initialization is in progress. READY The module is ready.
-
Page 23: Ieee 488.2 Commands
MXS-9100 Optical Switch Rackmount Operation Manual IEEE 488.2 Commands *CLS Clear Status. This command clears the Standard Event Status Register and the Status Byte Register. *ESE [mask] Standard Event Status Enable. This command assigns the value of mask to the Standard Event Status Enable Register. - Page 24 MXS-9100 Optical Switch Rackmount Operation Manual *OPC Operation Complete. This command sets the Operation Complete (OPC) bit of the Standard Event Status Register when all pending device operations are complete. Note that the Operation Complete Query (*OPC?) is fundamentally different from the Operation Complete command (*OPC).
-
Page 25: System Commands
MXS-9100 Optical Switch Rackmount Operation Manual *STB? Query Status Byte. This query returns the contents of the Status Byte Register. The Status Byte is defined in the table below. See Section IEEE488.2 Status Registers for more details. Table 3. Status Byte Register... - Page 26 MXS-9100 Optical Switch Rackmount Operation Manual WL n Command is for matrix switches larger than 16x16 Set Wavelength Calibration. Sets the wavelength calibration for matrix switches larger than 16x16. ‘n’ is variable with three possible values: 0 = 1310 nm...
-
Page 27: Ieee488.2 Status Registers
MXS-9100 Optical Switch Rackmount Operation Manual IEEE488.2 Status Registers The MXS-9100 supports four status registers. Table 4. IEEE488.2 Status Registers Acronym Name Description Event Status Enable Register Event flags that trigger ESB in the Status Byte Register. This register is user-set. -
Page 28: Handling Fiberoptic Components And Cables
MXS-9100 Optical Switch Rackmount Operation Manual Handling Fiberoptic Components and Cables Fiber optic components require special handling. Follow these guidelines when handling the cables and connectors. Handling Fiber Optic Cables To avoid cable damage and to minimize optical loss, follow these guidelines when handling fiber optic cables. -
Page 29: Storing Optical Connectors
MXS-9100 Optical Switch Rackmount Operation Manual Storing Optical Connectors All switches that include optical connectors are shipped with dust caps covering those optical connectors. Optical connectors should remain covered at all times when the instrument is not in use. Cleaning Optical Connectors Clean any exposed connector using a cleaning kit supplied by the connector manufacturer or high-grade isopropyl alcohol and a cotton swab. - Page 30 DiCon Fiberoptics, Inc. 1689 Regatta Boulevard Richmond, CA 94804 Phone: (510) 620-5200 Fax: (510) 620-4100 Email: info@diconfiberoptics.com Web: www.diconfiberoptics.com...
