Summary of Contents for Geerpres UVAIRO 600

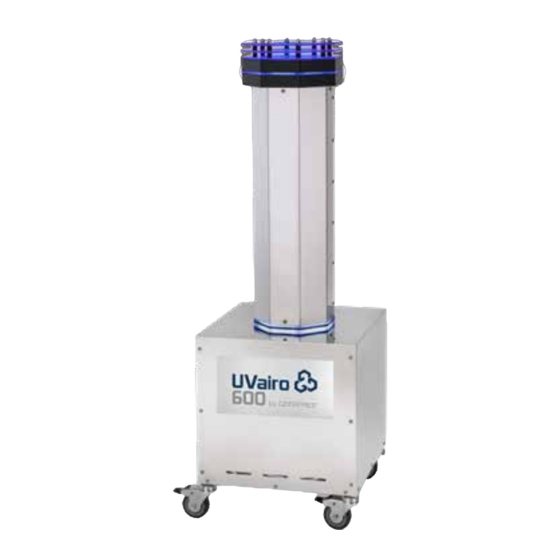

- Page 1 UVAIRO 600 SERVICE MANUAL UV-C Air Sanitizers...
-
Page 2: Table Of Contents
ABLE OF ONTENTS INTRODUCTION Preface Parts Ordering SAFETY WARNINGS Personnel Safety Operations Safety Maintenance Safety OPERATIONS System Overview UV-C Lamps Air Infeed Power Supply CLEANING Cleaning Notes Lamp Cleaning MAINTENANCE Changing the Lamps Changing the Air Filter Changing the Power Supply Fuse Service Parts List Preventative Maintenance... -
Page 3: Introduction
The information contained or disclosed by this document is considered proprietary by Geerpres. This document, items, and information contained or disclosed herein shall not be used, copied, or reproduced in whole or in part, nor shall the contents be... -
Page 4: Safety Warnings
SAFETY WARNINGS Read all Safety & Precaution statements throughout this manual. Personnel Safety Operations Safety All powered equipment can and will be dangerous to you if not operated properly. Be certain you are familiar with this machine and its functions before you operate it or perform any maintenance on it. Failure to follow safety precautions could result in serious personal injuries, including the possibility of the loss of life, equipment damage, or failure, and may void the warranty on your machine. -
Page 5: Maintenance Safety
Personnel Safety (continued) Maintenance Safety Safety Glasses Make certain UV-C light safety glasses are always worn when servicing this equipment. Anytime you are working on or around the UVairo Air Sanitizer, UV-C safety glasses MUST BE WORN! Always wear safety glasses when performing maintenance on this machine. Machine Cleanliness After performing maintenance procedures, make certain all tools and equipment are removed from the machine area before resuming operations. -
Page 6: Operations
OPERATIONS System Overview UVC Lamps Power Supply, Fuse, On/Off Switch Air Filter UVairo 600 Air Sanitizer Overview... -
Page 7: Uv-C Lamps
System Overview (continued) UV-C Lamps The UV-C lamps are extremely powerful and should be treated with appropriate caution. Refer to the safety section for precautions. UV-C light can kill micro-organisms when they are exposed to it for enough time. The rate at which micro-organisms are killed depends on the wavelength of the light, the intensity of the light, and the exposure time. -
Page 8: Cleaning
Stainless Steel Cleaning Use soft, white cloths and a specific, high quality stainless-steel cleaner to avoid scratching the mirror-like surface and to keep the unit looking clean. Recommend using Geerpres Advantex® Single-Use Microfiber wipes for cleaning. Lamp Cleaning... -
Page 9: Maintenance
MAINTENANCE Changing the Lamps 1. Disconnect the power and allow the unit to cool. 2. Open the top of the unit by unscrewing the four screws. 3. Remove the top cover. Location of Screws Top Lifted Off Continued on the next page. - Page 10 Changing the Lamps (continued) 1. Disconnect the Lamps: a. Firmly grasp a lamp, b. Lift lamp out of its pocket. Do not twist the lamp when pulling out! Sheering of the lamp pins mayoccur! CAUTION! Firmly Grasp the End of a Lamp 2.
- Page 11 Changing the Lamps (continued) 1. Once the lamps have been replaced, reattach the cover and tighten the 4 screws. 2. Plug the unit back in. 3. Turn on the power switch. 4. Visually inspect: Are all lamps lit after 30 seconds? If not, disconnect the machine, remove top, and inspect the lamp connections.
-
Page 12: Changing The Air Filter
Changing the Air Filter Lock two wheels. On opposite side of big air filter opening, there are a few thin openings. Use a thin, firm object (like a ruler or credit card) to press on the filter and push it out a couple inches so that it can be removed from the other side. -
Page 13: Changing The Power Supply Fuse
Changing the Power Supply Fuse Tucked between the On/Off switch and the power cord plug-in is a fuse insert. Unplug the cord from the wall and from the machine, pry open the fuse insert from inside the power cord plug-in, and replace the fuse. -
Page 14: Service Parts List
Service Parts List Geerpres Item Kit Qty Part # UV-C Lamp 560600UV Filters 560600F6 Caster 560600C4 Annual Service Kit - 4 Lamps and 12 Filters 560600SV Preventative Maintenance Monthly Maintenance Air Filter: Inspect Inspect the air filter at least monthly and change as necessary. - Page 15 EVS carts, steel wringers, and seamless buckets have been the ® industry standard in environmental services including hospitals, cleanroom/critical environment, food service, education, military and more. Today, Geerpres ® expanded to include patented self-dispensing microfiber applicators, disposable mops and wipes that virtually eliminate cross-contamination concerns, and a durable powder-coated EVS cart line.
