- Page 1 Disassembly Guide October 5, 2021 Disassembly Guide Sky Glass September 2021...
-
Page 2: Table Of Contents
Disassembly Guide October 5, 2021 Table of Contents Important Safety Precautions ............................2 Disassembly tools ..................................3 Exploded diagram with subassemblies ........................... 4 Summary of subassemblies ..............................5 Disassembly procedure ................................. 6 Remove stand ......................................6 Remove Rear Cover ....................................7 Remove wires and boards................................ -
Page 3: Important Safety Precautions

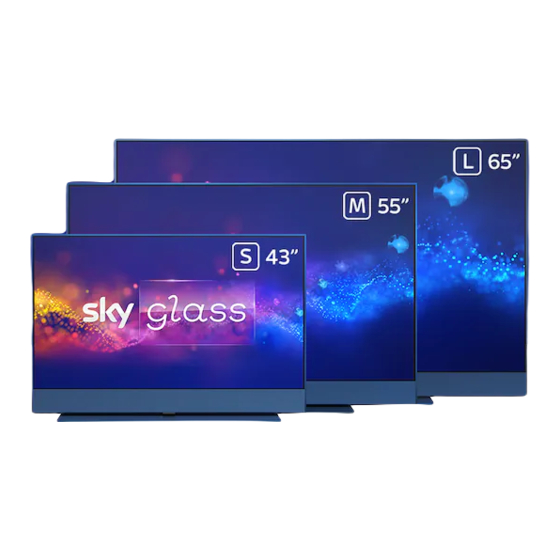

Type: Television Manufacturer: Sky CP Limited, Grant Way, TW7 5QD United Kingdom This document is intended to support recycling and shouldn’t be used for repair. Please note, disassembling electronic equipment can be dangerous and should only be done by professional agents. -
Page 4: Disassembly Tools
Disassembly Guide October 5, 2021 2 Required tools Tool Image Phillips Screwdriver Spacer Screwdriver C/D Disassembly Tool Gloves or soft cloth Solder sucker/Desoldering Tool Soldering iron Hex wrench/Allen key... -
Page 5: Exploded Diagram With Subassemblies
Disassembly Guide October 5, 2021 3 Exploded view (with subassemblies) -
Page 6: Summary Of Subassemblies
IR Board 5.3.2 assembly BT Module 368GAAWA695WNC Module 5.3.8 Webcom WIFI Module 368GAAWA694WNC Module 5.3.8 Webcom 378G0030329A00005Y Tymphany - Sky Speaker_Top consigned 378G5DB5327A00005Y Tymphany - Sky Woofer consigned Bezel_BTM P27B901001400000LX Aluminium alloy 517GAM1C601ZWL Printed circuit board Mic Board 5.3.5 Sky consigned... -
Page 7: Disassembly Procedure
Disassembly Guide October 5, 2021 5 Disassembly procedure Remove stand To remove the stand from the main unit, place the TV face down on a flat surface and remove the highlighted screws (x4). -
Page 8: Remove Rear Cover
Disassembly Guide October 5, 2021 5.2 Remove Rear Cover Where the screws have just been removed (underneath the stand), are 4 spacers. These can be removed by hand. Next, use the Philips screwdriver to remove the screws (x3) (below, left) then locate and remove all screws (x22) on the bottom of the unit (below, right). -
Page 9: Remove Wires And Boards
Disassembly Guide October 5, 2021 5.3 Remove wires and boards 5.3.1 Board identification The circuit boards are: Driver Board Power Board Main Board T-Con Board Mic Board IR Board Key Board... -
Page 10: Disassemble The Ir Board
Disassembly Guide October 5, 2021 5.3.2 Disassemble the IR Board Remove the mylar film (left) and unplug LVDS wire (right). Unlock cork (x4) (circled, right) to release the IR Board kit. To separate the Lens, Hook, Lens_Light_Sensor, and IR Board, unplug the wire and remove screws. -
Page 11: Disassemble Wires
Disassembly Guide October 5, 2021 5.3.3 Disassemble wires Remove all tape marked in red in the diagram below. Then unplug the 10 wires marked in the diagram below. -
Page 12: Disassemble Bkt_Stand
Disassembly Guide October 5, 2021 5.3.4 Disassemble BKT_Stand Remove the foam, then the screws (x8) on the bracket found underneath. 5.3.5 Disassemble Mic Board Remove the screw (x1) highlighted in yellow below, and the screws (x4) located on the board (highlighted red), before unplugging the wire (bottom) to separate the Mic Board from the panel. -
Page 13: Disassemble Key Board
Disassembly Guide October 5, 2021 5.3.6 Disassemble Key Board To separate the Key Board, first remove the piece of tape, then the screws (x2) on the board, before unplugging the wire. -
Page 14: Disassemble Driver Board
Disassembly Guide October 5, 2021 5.3.7 Disassemble Driver Board Remove the screws (x5) to separate the Driver Board. 5.3.8 Disassemble WIFI and BT Module Remove the tape (marked red) by hand. Separate WIFI and BT pin by soldering iron. -
Page 15: Disassemble Main Board
Disassembly Guide October 5, 2021 5.3.9 Disassemble Main Board Unplug the FFC cables from the main board. Remove the highlighted screws (x10) to separate the Main Board from the body. -
Page 16: Disassemble Power Board
Disassembly Guide October 5, 2021 5.3.10 Disassemble Power Board Remove the highlighted screws (x7) to separate the Power Board from the body. Separate the Electrolyte Capacitors (x10) (marked blue) with a soldering iron. -
Page 17: Panel Disassembly
Disassembly Guide October 5, 2021 5.4 Panel disassembly Remove the mylar film (x2) by hand. Remove screws (x2) and wire (x2) (marked red below) to remove T-con board. -
Page 18: Weee Annex Vii Parts
Disassembly Guide October 5, 2021 6 WEEE Annex VII parts LCDs TV using Light Emitting Diode (LED). Requirements according to ANNEX VII of DIRECTIVE 2012/19/EU on waste electrical and electronic equipment (WEEE) Materials and components with hazardous content LCDs may contain hazardous substances like Lead and Brominated Flame Retardants (BFRs) which are covered by exemptions under the RoHS directive. - Page 19 Disassembly Guide October 5, 2021 Necessary information according to ANNEX VII of DIRECTIVE 2012/19/ on waste electrical and electronic equipment (WEEE) Batteries can easily be removed from the remote control or printed circuit board assembly, once the back cover of the remote control or product has been removed.
- Page 20 Disassembly Guide October 5, 2021 The panel consists of several plastic sheets which can be processed. A final consideration is that of the backlight which must be removed prior to processing. These may be present along the bottom, or either side of the display as a strip of lights.
