Anigmo AD-300 Quick Start Manual

Touchless dimmer
Touchless dimmer with 300W output
Model AD-300
Important notes
CAUTION:
Read and understand these instructions before
1.
installing the device. Before installing this unit,
disconnect power at the circuit breaker or remove
fuse to avoid shock or damage to the unit. This
device is intended for installation with local
regulations. It is recommended that a qualified
electrician perform this operation
2. Do not install in combination with standard 3-Way
switches or third-party remote (slave) unit.
Use only in combination with Anigmo AE-S
remote (slave)unit.
Installation of this switch in the proximity of strong
3.
EM interference such as (and not limited to)
electrical welding machines, inadequately shielded
power supplies, radars, etc. could cause inadvertent
switch activity.
This switch may not be used in any application in
4.
which the inadvertently changing the switch state
could create a situation where personal injury, death
or property damage may occur.
This unit requires a neutral connection
5.
6. Do not exceed the maximal rated current of the unit
Warranty
All products sold or distributed by Anigmo or any of
its subsidiaries are guaranteed to be free from defects
in materials and workmanship for the period of 5 years.
This warranty shall extend to the original end
purchaser only. Anigmo, at its option, shall repair or
replace any Anigmo product within the Terms of
Warranty expressed herein, which fails to meet the
product's specifications.
This warranty does not extend to product failures or
defects caused by, or associated with, but not limited
to; failure to install or maintain correctly, unsuitable
physical or operating environment, accident, force
majeure, hazard, misuse, electrical supply,
unauthorised repair, modification or alteration.
Anigmo will not accept any liability or responsibility
under the terms of warranty expressed herein for,
but not limited to; negligence, loss of profit or data or
damages either material or personal. Mandatory
liability shall be restricted to the sum equal to the
purchase of the product.
This product may be protected by following patents
US 7.531.921, EP 2.038.906, US20090284182,
US 8.339.062, EP 2.292.078
Load Rating
Mode 1
Max. load 300W
120W for LED, CFL
Min. load 0W
Load type LED,CFL,
incandescent, halogen,
Low voltage
halogen (electronic)
Neutral wire Connect Neutral wire
* Minimum load in multi-location connection should be increased
by 20W for each AE-S unit

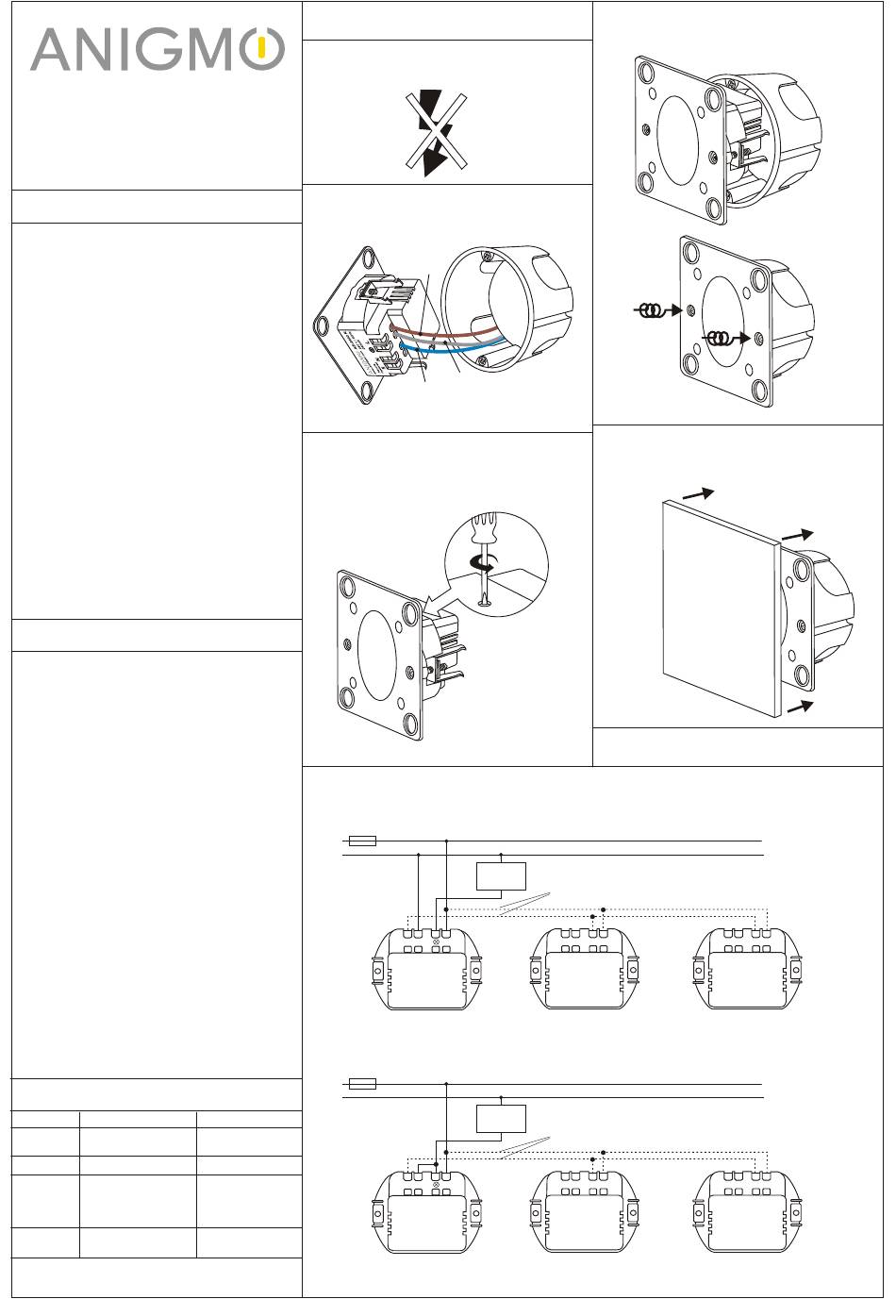

INSTALLATION
1. WARNING: Turn power OFF at circuit breaker
or remove the fuse
2. Connect wires as shown. Refer to wiring
diagrams.
* Neutral lead connected only in Mode 1
3.
Before installing the unit into a wall box, set the
desired sensor range if needed.
NOTE: The unit is supplied with its sensing range
set to maximum ( about 10 cm).
WIRING DIAGRAM
Dimmer operational mode (MODE1 or MODE2) is selected by appropriate connection
L
N
L
N
Mode 2
300W
40W*
incandescent,
halogen,
Low voltage
halogen (magnetic)
Do not connect
Neutral wire
HOT
LOAD
NEUTRAL*
F
LOAD
S N L
AD-300
MODE 1 (connection with neutral wire)
F
LOAD
S N L
AD-300
MODE 2 (connection without neutral wire)
4. Mount the unit into wall box. Align before tightening
the fixing screws
5. Attach decorative switchplate. Allign magnets on the
back of the switchplate with magnets on the unit
and push.
6. Restore power at the circuit breaker
Optional connection
(for multi-location installation)
S
L
AE-S
Optional connection
(for multi-location installation)
S L
AE-S
S
L
AE-S
S L
AE-S
