ElMod TLS HL Instructions For Assembly And Handling

Instructions for assembly and handling
Please read this document carefully!

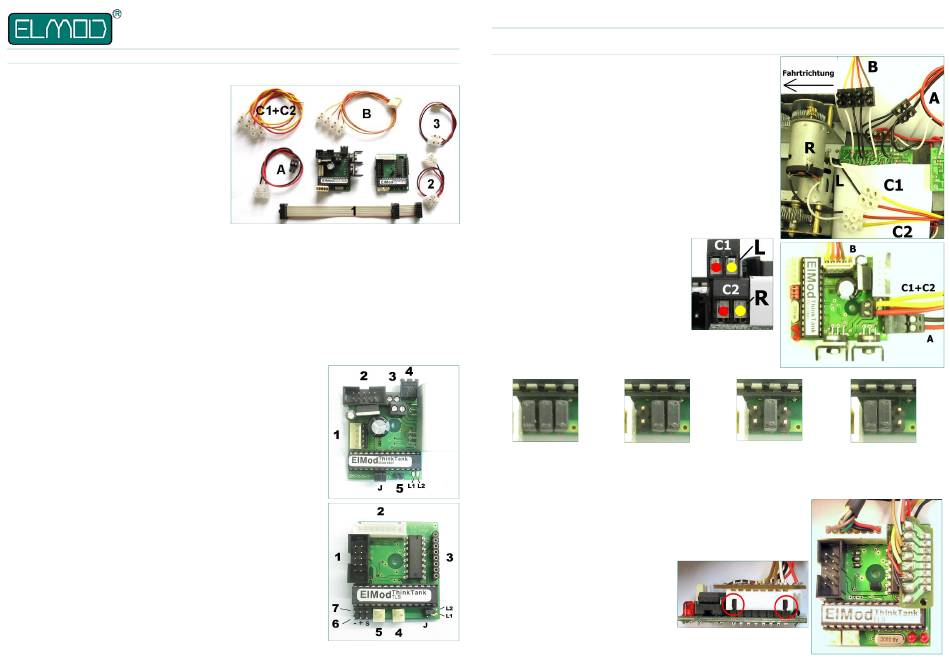

Scope of delivery

• ThinkTank Booster PCB
• ThinkTank TLS PCB
• Power cable A
• data cable B
• Motor cables C1+C2
• EMNet cable 1
• Turret motor cable extension 2
• Optional light cable 3
This manual is also included if modules are
bought separately. Please skip the paragraphs
that do not apply.
No further mixers or controllers necessary.
•
Simulation of mass inertia; acceleration, braking and speed similar to original tanks.
•
Extended control of the turret functionalities and lighting.
•
turret speed in scale to original and arbitrary direction of canon movement.
•
control of several lighting groups
•
connection of muzzle flash and barrel recoil unit
•
Easy extension due to ElMod bus system.
•

Overview of connectors

ThinkTank Booster
1 signal input input
2 EMNet-Connection for other ThinkTank modules (cable 1)
3 motor connector (cable C1 and C2)
4 power supply connection (cable A)
5 connection for brake light (direct connection for up to 2 LEDs.
Minus left)
J jumper for tank model configuration
L1 power LED
L2 command LED
ThinkTank TLS
1 EMNet-Connection (cable 1)
2 signal input
3 supply for turret unit
4 auxiliary light (ex. rear light) (cable 3)
5 optional muzzle flash
6 optional servo connection for horizontal main gun movement.
7 optional servo connection for vertical main gun movement.
L1 power LED
L2 command LED
ThinkTank Booster / TLS HL

Functionalities

Assembly and connection of the ThinkTank Booster

Faulty wiring may cause permanent damage to the electronics! If anything is unclear, please
look at our FAQ or write an email to us!
• Cut the power supply cable for the HL circuit board and
connect cable A. Booster and the built-in circuit board
must be supplied with power.
• Cut the four motor cables in the middle.
• Cable B has to be connected with the two cable ends
which lead away from the control circuit board. The order
of connection must be followed precisely: starting at the
edge of the circuit board, yellow-orange-red-brown.
• Each of the cables C have to be connected with the
motors.
• Cable C which is connected to the motor driving the LEFT
chain (in direction of motion) is called C1, the other one
C2.
• Keep in mind that the colors of the cables in your tank may
vary! Always connect light-colored
cables with light-colored ones and
dark-colored ones with dark-colored
ones!
• Connect the wires with the ThinkTank
Booster:
• cable A with connector 4
• cable B with connector 1
• cable C1 and C2 with connector 3
• Set the jumpers due to your tank model .
Pure Tank (no simulation of Heng Long Tiger or Panther
mass inertia. Not
recommended.)

Assembly and connection of ThinkTank TLS

• Remove the TLS jumper if you don't want to use barrel recoil unit
of a third-party manufacturer.
• Connect the 8-pin plug of the HL circuit board with connector 2.
• ThinkTank Booster and ThinkTank TLS are connected using the
EMNet cable.
• Connect the 8-pin plug of the turret
with connector 3 of the TLS. PAY
ATTENTION THAT THE
INDICATIONS POINT TOWARDS
THE EDGE OF THE PCB (as
indicated on the photo).
• n case the cables of the turret motor
are too short, you can extend them using cable 2.
Heng Long Pershing or
WSN T-34 (an additional wire set
Walker Bulldog
is required)
