www.exuavrc.com

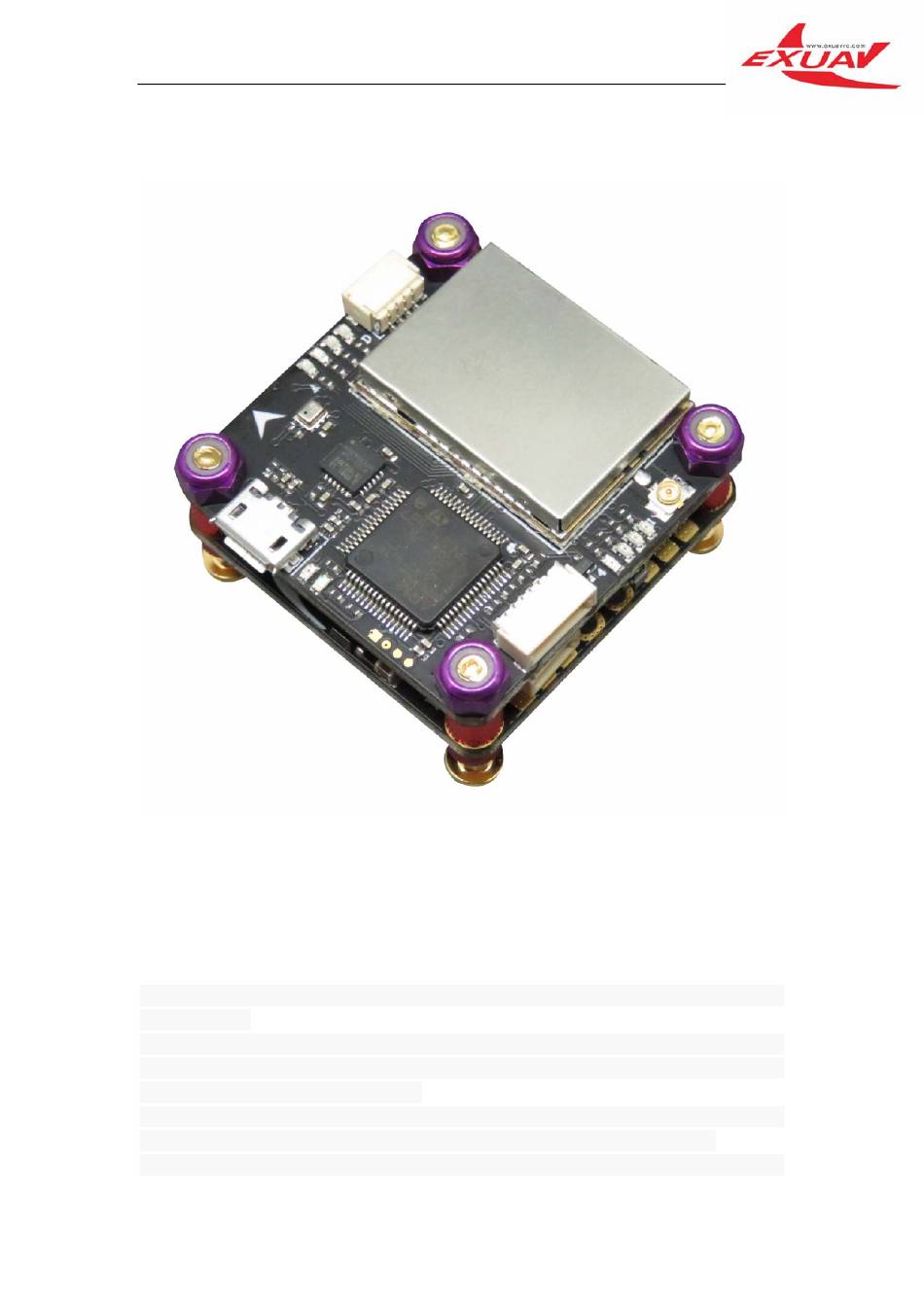

FlyTower F4 Instructions
V1.0
Warning
Instructionsforuse
1, Please install ANT (must be DONE) before debugging or testing VTX（and OSD）, or lead to VTX not
working properly.
2, Please use proper tools to install FlyTower .It is easy to damage the PCB components by using sharp
tools. (warning: Bear in mind that screws do not install too tight between every layer, so as not to
destroy the PCB and electronic components).
3,When debugging and testing flight control Please remove all the propeller; Try not to test indoors, So
as not to cause safety accidents. Install the propeller before a test flight, please check again.
4,Please check and adjust ESC plate welding, thus brings all the losses and problems, or you
Advertisement
Summary of Contents for Exuav FlyTower F4
- Page 1 www.exuavrc.com FlyTower F4 Instructions V1.0 Warning Instructionsforuse 1, Please install ANT (must be DONE) before debugging or testing VTX（and OSD）, or lead to VTX not working properly. 2, Please use proper tools to install FlyTower .It is easy to damage the PCB components by using sharp tools. (warning: Bear in mind that screws do not install too tight between every layer, so as not to destroy the PCB and electronic components). 3,When debugging and testing flight control Please remove all the propeller; Try not to test indoors, So as not to cause safety accidents. Install the propeller before a test flight, please check again. 4,Please check and adjust ESC plate welding, thus brings all the losses and problems, or you ...
-
Page 2: Product Specifications
www.exuavrc.com should face the consequences. 5,Please do not fly your drone near the crowd, for all the losses from the crashed aircraft, you should face the consequences. 6,For your safety, please do not use more than 4s battery, Using more than 4s battery would cause safety risk, we will not undertake any responsibility. 7, Before power on, please check the positive and negative pole again to make sure whether there is a ... - Page 3 www.exuavrc.com ★ Practical ‐ Easy to access connectors ★ Configurable ‐ Choose to use connectors ★ Stackable ‐ Mount our 4 in 1 ESC ★ Compact ‐ Only 36x36x15mm.(Add air‐cooling fin MAX 36*36*20MM) ★ Weight ‐ 28.7 grams and 2 stack boards ★ Professional ‐ Symmetrical, Neat and Tidy and Easy to install in any racing drone ★ 36x36mm board with 30.5mm mounting holes ★ STM32 F405 MCU, Runs Betaflight firmware(supported from v3.0) ★ SD card slot ★ Use MPU6000 as Acc & gyro Over SPI Bus ★ STM32 controls OSD chip over SPI in DMA mode, less CPU using, faster rate ★ ...
- Page 4 www.exuavrc.com 2,FCboardToplayer...
- Page 5 www.exuavrc.com 3,FCBottomlayer ...
- Page 6 www.exuavrc.com How to use the onboard USB port updated firmware in GUI on windows To flash the firmware you have to enter the so called DFU mode. On Windows 10 I had to use a tool called Zadig (download and start it) to be able to switch drivers for DFU mode to work.
- Page 7 www.exuavrc.com • Push BOOT button on the flight controller. • Plug-in the USB cable (the red LED should not be as bright as normally). • Fire up Zadig and hit “Options” and then “List All Devices”. • From the list choose “STM32 BOOTLOADER”. •...
- Page 8 www.exuavrc.com HowtosetS.BUS/PPM/DSMXRCIN...
- Page 9 www.exuavrc.com...
- Page 10 www.exuavrc.com...
- Page 11 www.exuavrc.com OSD setting and ubgrade firmware ...
- Page 12 www.exuavrc.com ESC use and upgrade firmware 1.Open ...
- Page 13 www.exuavrc.com 2, Choose 3, Choose a port ...
- Page 14 www.exuavrc.com 4, Connent USB cable to FlyTower F1 FC Board 5, Connect 6, Connet BAT Power to ESC board 7, Check ESC Information 8, Check Flash Show 9,For more information view ...
- Page 15 www.exuavrc.com 10,Upgrade Flash for ESC 11, Choose ESC Firmware and upgrade VTXuseandsettings 1,VTX key switch Instructions (print on VTX on FC and VTX board has a small error),just follow this picture: ...
- Page 16 www.exuavrc.com Channel switch: short press SK, CH1-CH8 in there group, the current channel lights flash 1HZ ，and short click to jump to the next CH. For example, the current state of CH1, short press SK, CH1 flash. And then press SK, jump to CH2 flash, continue to press SK, CH3 flash. This process to do the cycle of CH1-CH8 (4 lights show the 8 CH channels, detailed description of the following table). 5 seconds later the setting will exit without touching SK. Frequency group switch: long press 2 seconds SK, A-E where the band group slow flash 1HZ, and then click on the SK for a long time, after the release will jump to the next group. For example, the current working state is A group CH1 status. Long press SK two seconds and release the A slow flash 1HZ, and then long by two seconds SK release, jump to B slow flash 1HZ. The second process is same as above. Do A-E polling, note here: (A-B-C-D to indicate that the E band, A-B 2 lights all bright). Similarly, do not touch the SK, 5 seconds after the automatic exit settings. Follow up will launch 60 channel BC, CD, AC, AD, BD channels, etc. 4, Power switch: fast short press SK two, then A-E frequency group under the condition of full bright light, quick press at two under SK, then began to switch power, the corresponding power is 25mW 200mW 400mW frequency light: bright 1 is the minimum power, bright 2 is a medium power, the 3 is ...
- Page 17 www.exuavrc.com Detailchannelandfrequencytable ： CH11brightlights 5865 CH11brightlights 5733 CH22brightlights 5845 CH22brightlights 5752 CH33brightlights 5825 CH33brightlights 5771 BandA BandB CH44brightlights 5805 CH44brightlights 5790 Abright Bbright CH51，2brightslight 5785 CH51，2brightslight 5809 lights lights CH62，3brightslight 5765 CH62，3brightslight 5828 CH73，4brightslight 5745 CH73，4brightslight 5847 CH81，2，3，4brightslight 5725 CH81，2，3，4brightslight 5866...
