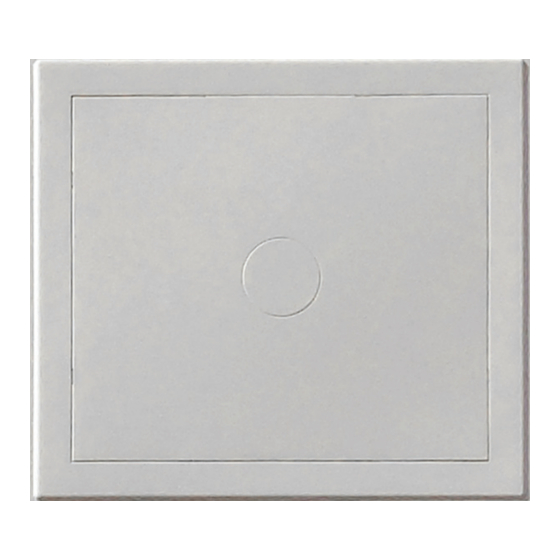

04MM-HMH01
HIDDEN MEDIA HUB
THE SIMPLEST DATA CABLING SOLUTION
Your number one choice in residential and
commercial buildings
Pack Includes:
1
Recessed Hub
Slim Line Frame
2
Lid
3
Cable Cover
4
4
5
INSTRUCTIONS
Floating Clip ( x 4 )
5
6
A Screw ( x 4 )
7
B Screw ( x 4 )
8
C Screw ( x 4 )
1
2
3
6
7
8
Warnings and Cautions
»
To be installed by a suitably qualified installer
»
To be installed and / or used in accordance with appropriate
electrical codes and regulations
»
If you are unsure about any part of these instructions,
consult a qualified installer
Important Instructions:
»
Read and understand all instructions. Follow all warnings
and instructions marked on the product
»
Do not use this product near water - eg. near a bathtub,
wash basin, sink, a wet basement or near a swimming pool
»
Never push objects of any kind into this product through
openings, as they may touch dangerous voltages
Safety Instructions:
»
Never install components during an electrical storm
»
Never install components in wet locations unless the
components are designed for such use
»
Never touch uninsulated wires or terminals unless the
wiring has been disconnected at the network interface
»
Each opening must have a device or snap-on cover plate
installed to prevent electrical shock
Exclusive
Australian Distributor
Advertisement
Summary of Contents for Matchmaster 04MM-HMH01
- Page 1 04MM-HMH01 HIDDEN MEDIA HUB INSTRUCTIONS Warnings and Cautions THE SIMPLEST DATA CABLING SOLUTION Your number one choice in residential and » To be installed by a suitably qualified installer commercial buildings » To be installed and / or used in accordance with appropriate...
- Page 2 04MM-HMH01 New Build Installation Renovation Installation 1. WARNING: To avoid fire, shock or death, turn off the 1. WARNING: To avoid fire, shock or death, turn off the power at the circuit breaker or fuse and test the power is power at the circuit breaker or fuse and test the power is off before wiring.
