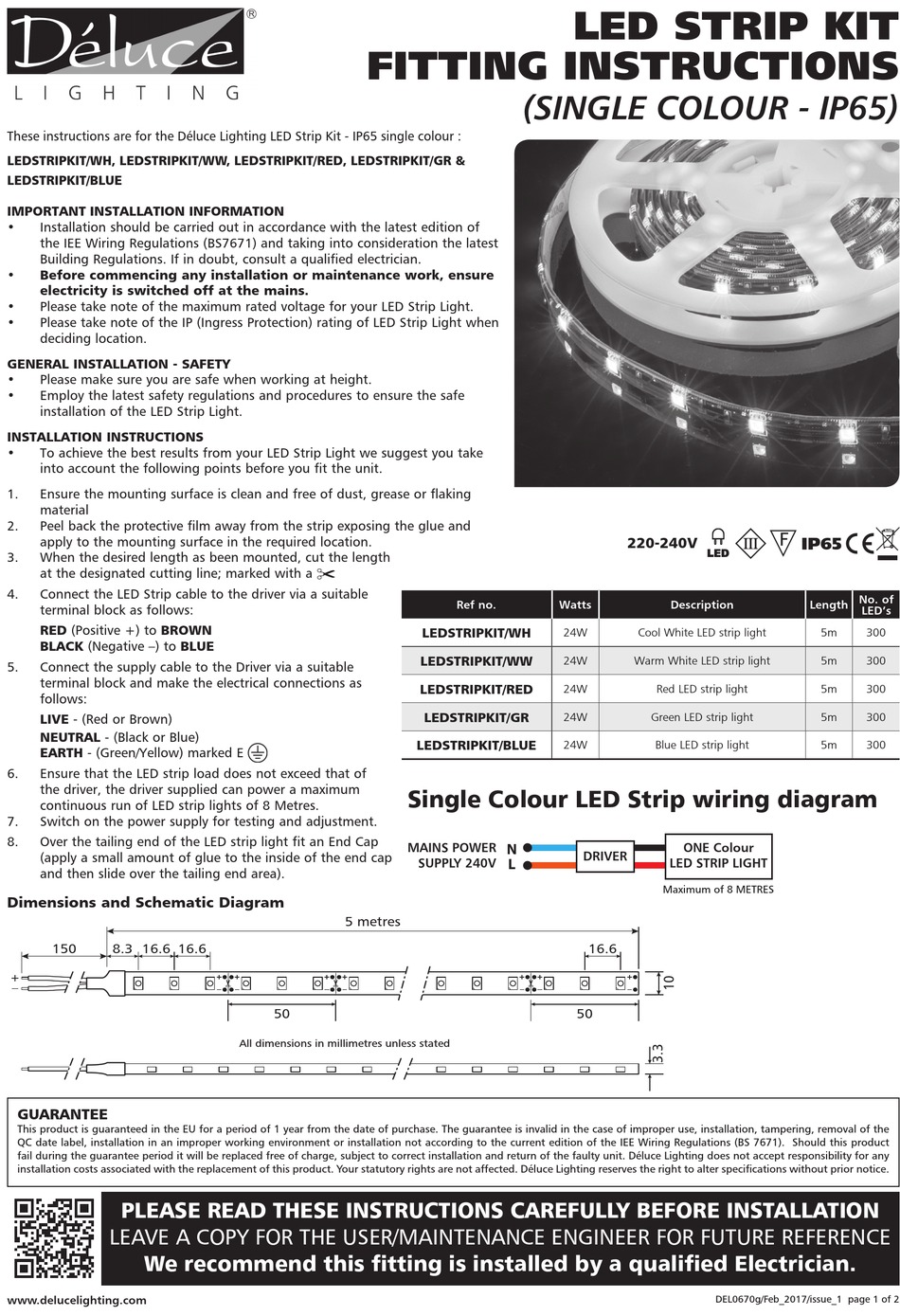

Deluce Lighting LEDSTRIPKIT/WH Fitting Instructions

Led strip kit

Advertisement

These instructions are for the Déluce Lighting LED Strip Kit - IP65 single colour :
LEDSTRIPKIT/WH, LEDSTRIPKIT/WW, LEDSTRIPKIT/RED, LEDSTRIPKIT/GR &
LEDSTRIPKIT/BLUE

IMPORTANT INSTALLATION INFORMATION

Installation should be carried out in accordance with the latest edition of
the IEE Wiring Regulations (BS7671) and taking into consideration the latest
Building Regulations. If in doubt, consult a qualified electrician.
Before commencing any installation or maintenance work, ensure
electricity is switched off at the mains.
Please take note of the maximum rated voltage for your LED Strip Light.
Please take note of the IP (Ingress Protection) rating of LED Strip Light when
deciding location.

GENERAL INSTALLATION - SAFETY

Please make sure you are safe when working at height.
Employ the latest safety regulations and procedures to ensure the safe
installation of the LED Strip Light.

INSTALLATION INSTRUCTIONS

To achieve the best results from your LED Strip Light we suggest you take
into account the following points before you fit the unit.
1.
Ensure the mounting surface is clean and free of dust, grease or flaking
material
2.
Peel back the protective film away from the strip exposing the glue and
apply to the mounting surface in the required location.
3.
When the desired length as been mounted, cut the length
at the designated cutting line; marked with a
4.
Connect the LED Strip cable to the driver via a suitable
terminal block as follows:
RED (Positive +) to BROWN
BLACK (Negative –) to BLUE
5.
Connect the supply cable to the Driver via a suitable
terminal block and make the electrical connections as
follows:
LIVE - (Red or Brown)
NEUTRAL - (Black or Blue)
EARTH - (Green/Yellow) marked E
6.
Ensure that the LED strip load does not exceed that of
the driver, the driver supplied can power a maximum
continuous run of LED strip lights of 8 Metres.
7.
Switch on the power supply for testing and adjustment.
8.
Over the tailing end of the LED strip light fit an End Cap
(apply a small amount of glue to the inside of the end cap
and then slide over the tailing end area).
Dimensions and Schematic Diagram
150
8.3
16.6 16.6

GUARANTEE

This product is guaranteed in the EU for a period of 1 year from the date of purchase. The guarantee is invalid in the case of improper use, installation, tampering, removal of the
QC date label, installation in an improper working environment or installation not according to the current edition of the IEE Wiring Regulations (BS 7671). Should this product
fail during the guarantee period it will be replaced free of charge, subject to correct installation and return of the faulty unit. Déluce Lighting does not accept responsibility for any
installation costs associated with the replacement of this product. Your statutory rights are not affected. Déluce Lighting reserves the right to alter specifications without prior notice.
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION
LEAVE A COPY FOR THE USER/MAINTENANCE ENGINEER FOR FUTURE REFERENCE
We recommend this fitting is installed by a qualified Electrician.
www.delucelighting.com
FITTING INSTRUCTIONS
Single Colour LED Strip wiring diagram
MAINS POWER
5 metres
50
RGB LED Strip wiring diagram
All dimensions in millimetres unless stated
MAINS POWER
LED STRIP KIT
(SINGLE COLOUR - IP65)
Ref no.
Watts
LEDSTRIPKIT/WH
24W
LEDSTRIPKIT/WW
24W
LEDSTRIPKIT/RED
24W
LEDSTRIPKIT/GR
24W
LEDSTRIPKIT/BLUE
24W
N
DRIVER
L
SUPPLY 240V
50
N
SUPPLY 240V
L
DRIVER
WIRELESS
RECEIVER
REMOTE CONTROL
220-240V
LED
Description
Cool White LED strip light
Warm White LED strip light
Red LED strip light
Green LED strip light
Blue LED strip light
ONE Colour
LED STRIP LIGHT
Maximum of 8 METRES
16.6
RGB LED
STRIP LIGHT
DEL0670g/Feb_2017/issue_1 page 1 of 2
IP65
No. of
Length
LED's
5m
300
5m
300
5m
300
5m
300
5m
300
DRIVER
RGB LED
AMPLIFIER
STRIP LIGH
Note: A m
