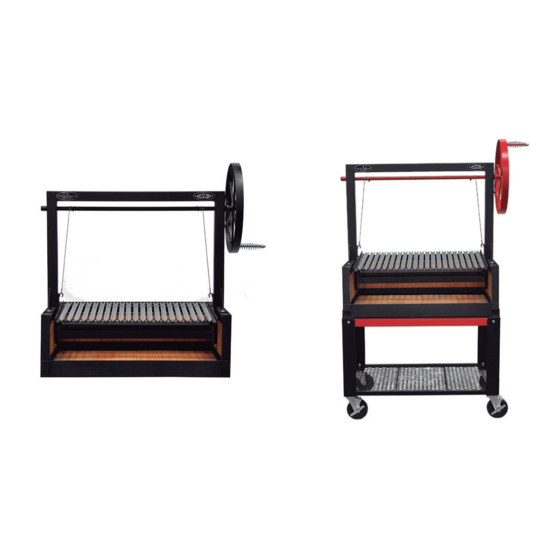

- Page 1 J u n e 1 1 , 2 0 1 9 C e r t i f i c a t e # C 0 4 3 0 4 1 3 - 0 1 ARGENTINE STYLE HAND CRAFTED GRILLS OWNERS MANUAL...
-
Page 2: Table Of Contents
OWNERS MANUAL TABLE OF CONTENTS ARGENTINE GRILLS SERIES FEATURES 5-6-7-8-9 SPECIFICATIONS 10-11-12 ASSEMBLY Rotisserie Safety Care & Maintenance 15-16 HAND CRAFTED GRILLS... - Page 3 SERIES ARG-36DSI ARG-48DSI ARG-60DSI ARG-36DSICRT ARG-48DSICRT ARG-60DSICRT ARG-48DSIBR7030 ARG-60DSIBR7030 ARG-72DSIBR7030 ARG-96DSIBR7030 ARG-48DSIBR7030CRT ARG-60DSIBR7030CRT ARG-72DSIBR7030CRT ARG-96DSIBR7030CRT ARG-36DSIBRB ARG-48DSIBRB ARG-48DSPLBRB ARG-60DSIBRB ARG-60DSPLBRB ARG-72DSPLBRB ARG-36DSIBRBCRT ARG-48DSIBRBCRT ARG-48DSPLBRBCRT ARG-60DSIBRBCRT ARG-60DSPLBRBCRT ARG-72DSPLBRBCRT ARGENTINE GRILLS...
- Page 4 FEATURES Manufactured with Heavy Gauge Steel • Includes firebrick on floor and walls • 70/30 split grate system for Argentine Brasero grills • Thickness - Grill base floor and side walls; Heavy gauge 3/16“ steel • Height Firebox: 12" • Finish: Satin Black •...
-
Page 5: Specifications
SPECIFICATIONS SERIES ARG 36” 48” 60” 36” 48” 60” 45” 57” 69” 45” 57” 69” OVERALL WIDTH (1143) (1448) (1753) (1143) (1448) (1753) INCHES (MM) OVERALL LENGTH 29” 29” 35” 29” 29” 35” INCHES (MM) (736) (736) (889) (736) (736) (889) OVERALL HEIGHT 64”... - Page 6 SPECIFICATIONS 48” 60” 72” 96” SERIES ARG7030BR 57” 69” 81” 105” OVERALL WIDTH (1448) (1753) (2057) (2667) INCHES (MM) 29” 35” 35” 35” OVERALL LENGTH (736) (889) (889) (889) INCHES (MM) 40” 40” 40” 40” OVERALL HEIGHT (1016) (1016) (1016) (1016) INCHES (MM) WEIGHT LBS...
- Page 7 SPECIFICATIONS 48” 60” 72” 96” SERIES ARG7030BR 57” 69” 81” 105” OVERALL WIDTH (1448) (1753) (2057) (2667) INCHES (MM) 29” 35” 35” 35” OVERALL LENGTH (736) (889) (889) (889) INCHES (MM) 64” 64” 64” 64” OVERALL HEIGHT (1625) (1625) (1625) (1625) INCHES (MM) WEIGHT LBS...
- Page 8 SPECIFICATIONS 36” 48” 60” 72” SERIES ARGBRB NON-CART OVERALL LENGTH 45” 66” 78" 90” INCHES (MM) (1676) (1981) (1143) (2286) Deduct 9" for single grate design on 48" & 60" 42" 42” 42” 42” OVERALL (1066) (1066) (1066) (1066) DEPTH INCHES (MM) 42”...
- Page 9 SPECIFICATIONS 36” 48” 60” 72” SERIES ARGBRB CART 45” 66” 78" 90” OVERALL LENGTH (1676) (1981) (1143) (2286) INCHES (MM) Deduct 9" for single grate design on 48" & 60" 42" 42” 42” 42” OVERALL DEPTH (1066) (1066) (1066) (1066) INCHES (MM) 66”...
-
Page 10: Assembly
ASSEMBLY Tools required 3/4” & 7/32” P lace 4 legs into the top f rame using 3/8" bolts and tighten with 7/32" allen wrench. Place the shelf into the angle i ron of the legs . T hread caster bolt t hrough the h ole of shelf and tighten with 3/4"... - Page 11 ASSEMBLY Organize enough helpers Place the firebox into counter top or onto assembled cart. (Heavy - lift properly) Insert flywheel(s) on spindle and hand turn. Chech over each step of the assembly when performed Lock flywheel on spindle with a cotter pin and use pliers to bend.
- Page 12 ASSEMBLY Install brake handle into upright in this sequence as pictured; Position handle- washer - bolt and tighten . To light the grill Use only proper lighting methods. Add charcoal/logs to firebox and light. Be sure to season the grill before first time use.
-
Page 13: Rotisserie
ASSEMBLY Rotisserie equipment will be shipping independently of the grill. Upon receiving, please use the following instructions noted in the manual for the rotisserie installation. DO NOT FOLLOW INSTRUCTIONS THAT COME WITH THE ROTISSERIE. Tools required 1/8” & 3/16” Motor bracket Rotisserie bracket set Hardware for motor bracket Step 1: Assemble both brackets... -
Page 14: Safety
SAFETY IMPORTANT SAFETY WARNINGS READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY BEFORE OPERATING YOUR FIRE PIT, GRILL OR OVEN WARNING • Only use the outdoor cooking equipment on a hard, level, noncombustible, stable surface (concrete, ground, etc.) capable of supporting the weight of the unit. DO NOT use on wooden or other surfaces that could burn. •... - Page 15 BEFORE OPERATING YOUR FIRE PIT / GRILL CURING YOUR GRILL Prior to your first use of the Sunterra Outdoor Cooking Equipment, follow the instructions below carefully to cure your grill. Curing your grill will minimize damage to the exterior finish, as well as rid the grill of paint odor that can impart unnatural flavors to the first meal prepared on your Sunterra Casual Fire Pit &...
-
Page 16: Care & Maintenance
Warranty coverage does not extend to products shipped outside of the continental United States. Sunterra Outdoor Products reserves the right to repair or replace, at the sole option of the manufacturer, any Sunterra Outdoor Products presented to them which they deem to have been defective. Sunterra Outdoor Products also reserves the sole right to distinguish between burnout, rust, misuse, or problems arising from neglect of reasonable and necessary care and maintenance.
