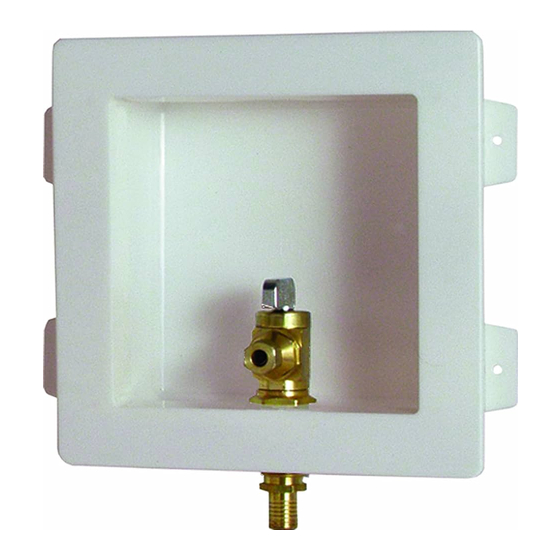

PEX Press Zero Lead Washing Machine and Ice maker Boxes
®
B
D
F
H
A Stud
B Face Plate
C Backing Board Fastened Between Studs
D Valve Outlet
E Solvent Cement Drain Connection
F Viega PEX Press
G PEX Pipe
H Wall Material
Viega LLC, 100 N. Broadway, 6
PI-PF 589094 0415 (PEX Washing Machine and Ice Maker Boxes)

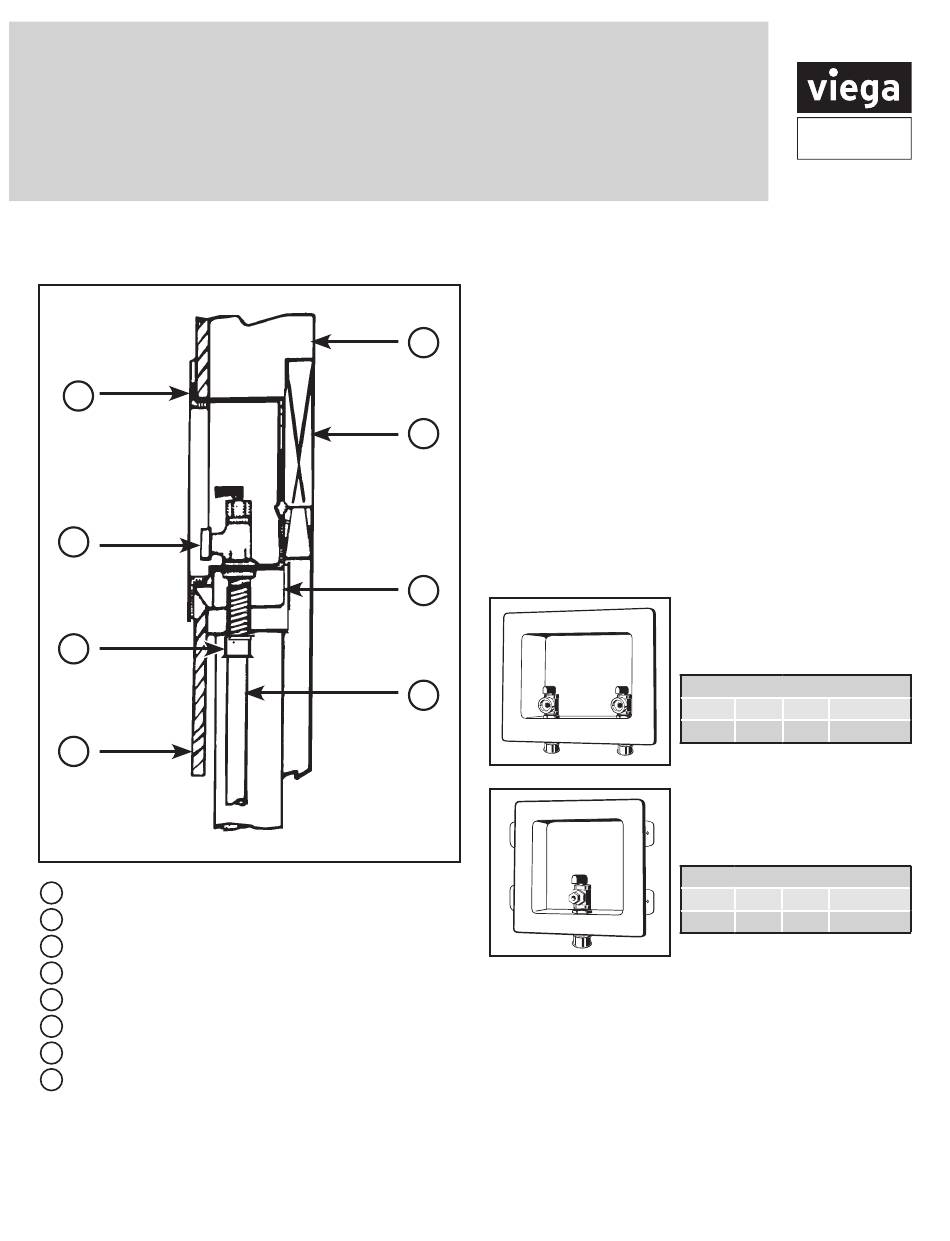

1. Position box between studs at desired height.
2. Ensure that the front edge of the box is flush with wall.
Secure box to a backing board with screws, or to the
A
front of the stud(s) using the nailing ear(s).
3. If necessary, cut or punch opening on bottom of box
for 2" plastic drain pipe and solvent cement pipe
connection on bottom of box (washing machine boxes
C
only).
4. Connect Viega PEX tubing to Viega PEX Press
barb(s) on valve(s) per Viega's PEX Press installation
instructions.
5. Push face plate into box until plate is flush against
wall material.
E
G
Floor • Wichita, KS 67202 • Ph: 800-976-9819 • Fax: 316-425-7618
th
Washing Machine Box Dimensions
Height
Width Depth
Face Plate
6⅝"
7¾"
3"
8¼" x 10⅜"
Ice Maker Box Dimensions
Height
Width Depth
Face Plate
5¼"
5¼"
2½"
6¾" x 6¾"
1 of 4
