Summary of Contents for Zon DAZON 4MT08

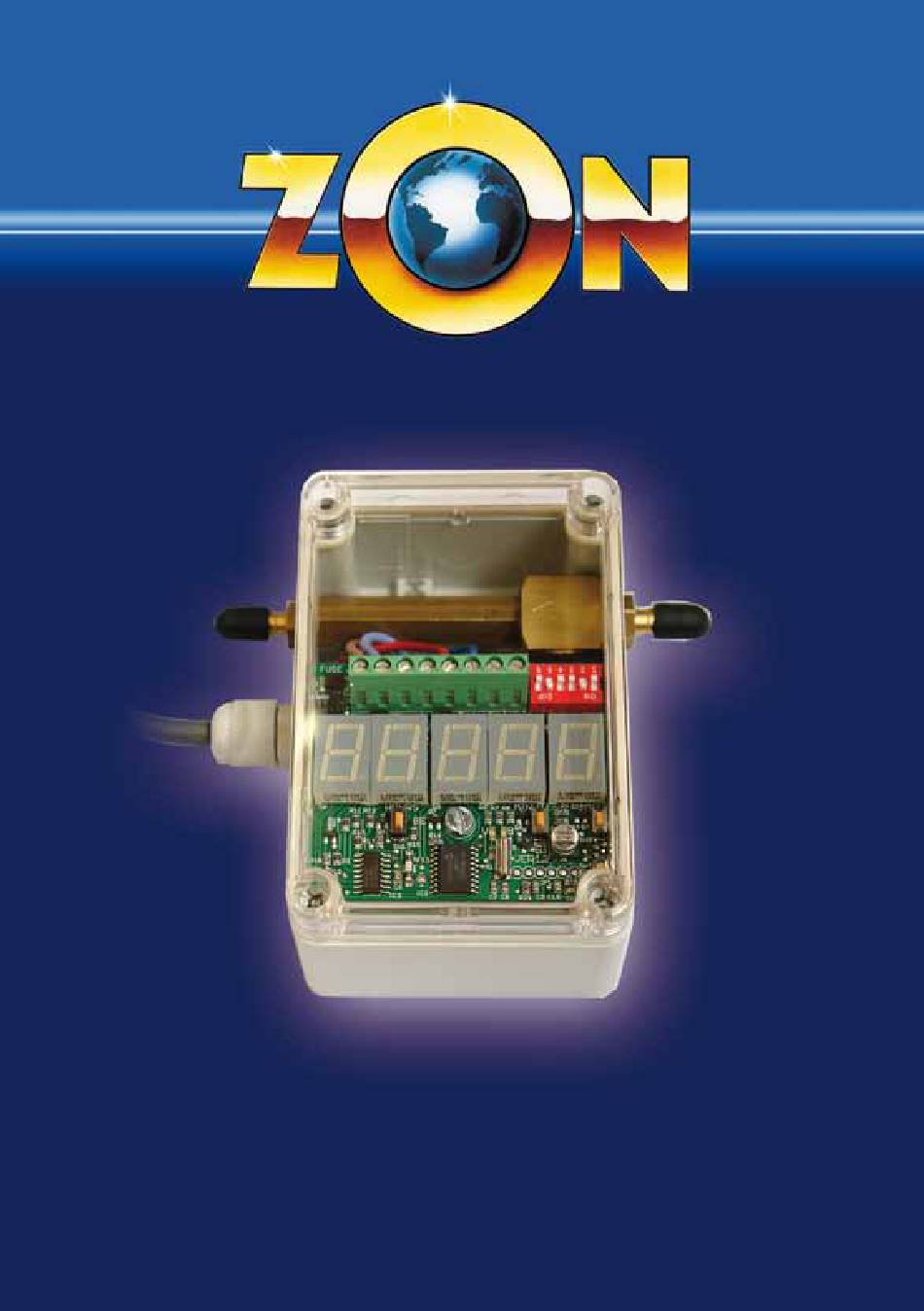

- Page 1 DAZON Zon 4MT08 U s e r M a n u a l Zon 4MT08...

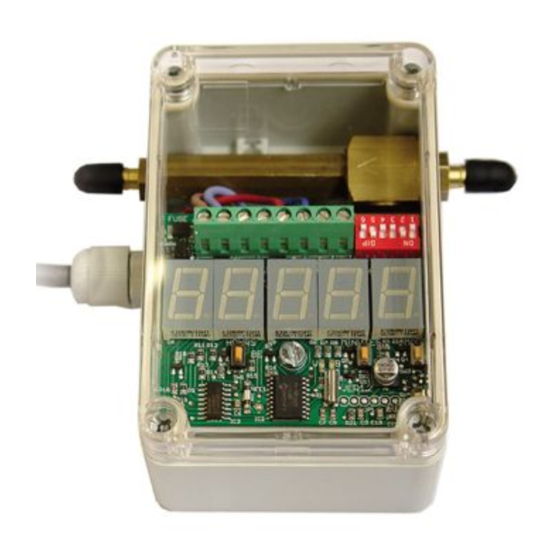

- Page 2 General The conversion kit Zon 4MT08 creates the possibility to convert a fully mecha- nical gas cannon into a semi-electronic gas cannon. The electronic control-unit MT08 makes the propane gas cannon produce 1, 2, 3 or 4 shots series, with approximately 5 seconds between each shot.
- Page 3 After opening the valve of the gas tank always push the red button of the hose fracture protection valve, to make sure an unobstructed gas flow is guaranteed. Pressure regulator Hose fracture protection valve Zon 4MT08...
- Page 4 Connect Connect gas tank to Zon Mark 4 this side to this side Connect the pressure regulator to the gas tank. 10 Connect the battery cable of the control-unit MT08 to a 12V battery. The red or brown wire should be attached to the + of the battery.
- Page 5 The 1-figure display to the right shows the Mode. The 2-figure display in the middle shows the minutes belonging to the displayed mode. The 2-figure display on the left shows the hours belonging to the displayed mode. Zon 4MT08...
- Page 6 Hours Minutes Mode 5-figure display, with 4 push buttons Pushbutton Hours Pushbutton Minutes Pushbutton Mode Pushbutton Reset Setting hours Setting minutes Selecting Mode Reset Dazon bv...
- Page 7 1 and 2. Series Dipswitch 1 Dipswitch 2 1 shot 1 2 3 4 5 6 2 shots 1 2 3 4 5 6 3 shots 1 2 3 4 5 6 4 shots 1 2 3 4 5 6 Zon 4MT08...
- Page 8 5 Configuring the time between consecutive series The time, that has to pass between consecutive shots series, is controlled with dipswitch 3 through 6. These are the possible settings: Interval Dipswitch Dipswitch Dipswitch Dipswitch 1 minute 1 2 3 4 5 6 2 minutes 1 2 3 4 5 6 3 minutes...
- Page 9 Random 10 the time after a shots series is randomly chosen by the control-unit between 1 and 10 minutes. Random 15 the time after a shots series is randomly chosen by the control-unit between 1 and 15 minutes. Zon 4MT08...
-
Page 10: Setting The Current Time
6 Setting the current time When the display is not lit, it will light by pushing one of the push buttons for the Hours, Minutes or Mode and show the current time. When the display is already lit, the current time is displayed at the moment the Mode display is empty. - Page 11 Starting-time period 4 Mode = 8 Ending-time period 4 Hours Minutes Mode Hours Minutes Mode Starting-time period 1 is 6:45 hr Ending-time period 1 is 8:15 hr Starting-time period 2 is 12:10 hr Ending-time period 2 is 13:30 hr Zon 4MT08...
- Page 12 Hours Minutes Mode Hours Minutes Mode Starting-time period 3 is 15:30 hr Ending-time period 3 is 17:15 hr Starting-time period 4 is 19:00 hr Ending-time period 4 is 21:45 hr By pushing the Hours button or the Minutes button, the displayed starting or ending-time can be altered.
- Page 13 V beside it, will light during the time gas is injected into the cannon. The led with the character B beside it, will light when the control-unit activates the electronic ignition (this ignition will only be used on the Zon EL08). Be careful, the explosion will follow in less then 2 seconds!!
- Page 14 Power in, is used for the connection of a 12V battery. The Ignition is not used for the MT08, it is meant for the Zon EL08. To the Valve the magnetic valve, that controls the flow of gas, is connected.
- Page 15 In below example a common push button is connected to the extra IN input. Pushing the button will activate the control-unit immediately and let it generate a series of shots. When finished it will automatically switch back to the confi- gured program. Zon 4MT08...
- Page 16 DAZON bv P.O. Box 5502 Bergerstraat 35 6202 XA Maastricht 6226 BA Maastricht The Netherlands The Netherlands +31 (0)43 362 08 76 info@dazonbv.eu +31 (0)43 363 53 73 w www.dazonbv.eu Dazon bv...
