ZETLab ZET 7152-N-VER.3 User Manual

Seismograph
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SEISMOGRAPH
ZET 7152-N-VER.3
USER MANUAL
LLC "ETMS"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZET 7152-N-VER.3 and is the answer not in the manual?

Questions and answers

Related Manuals for ZETLab ZET 7152-N-VER.3

Summary of Contents for ZETLab ZET 7152-N-VER.3

  • Page 1 SEISMOGRAPH ZET 7152-N-VER.3 USER MANUAL LLC "ETMS"...

  • Page 2: Table Of Contents

    Connecting ZET 7152-N-VER.3 seismograph to PC ..........13 Configuring ZET 7176 interface converter ..............17 Configuring sensors included into the scope of ZET 7152-N-VER.3 ......19 2.6.1 Configuring digital short-period seismometer ZET 7156 .......... 21 2.6.2 Configuring digital accelerometer ZET 7152-N ............22 2.6.3 Configuring off-line recorder ZET 7173 ..............
  • Page 3 Only qualified engineers and technicians can use ZET 7152-N-VER.3. Unboxing, installation and start of ZET 7152-N-VER.3 can be performed by the user or by representative of organization responsible for technical maintenance in accordance with the provisions of the Contract relating to the purchase of ZET 7152-N-VER.3.

  • Page 4: Description Of Zet 7152-N-Ver.3

    VER.3 can be used off-line or within the scope of automated monitoring system for the purpose of seismic and seismological research by means of reflected and refracted waves method and converted waves method. ZET 7152-N-VER.3 can also be used for geotechnical studies. LLC "ETMS"...

  • Page 5: Technical Specifications

    Technical specifications Technical specifications of ZET 7152-N-VER.3 are shown in Table 1.1. Table 1.1 Technical specifications of the Characteristics Values Measuring channels specifications Amount of measuring channels Measuring axis Z is orthogonal to the base and is forwarded towards the lid of the Measuring axes direction seismograph, while axes X and Y –...

  • Page 6: Delivery Scope Of Zet 7152-N-Ver.3

    * - it is allowed to provide a single copy of User Manual for products lot up to 10 pcs. The guaranteed service life is only valid in the case of ZETLAB software updates at least once in two months. The warranty does not apply to the integrated battery of ZET 7152-N-VER.3...

  • Page 7: Construction Of Zet 7152-N-Ver.3

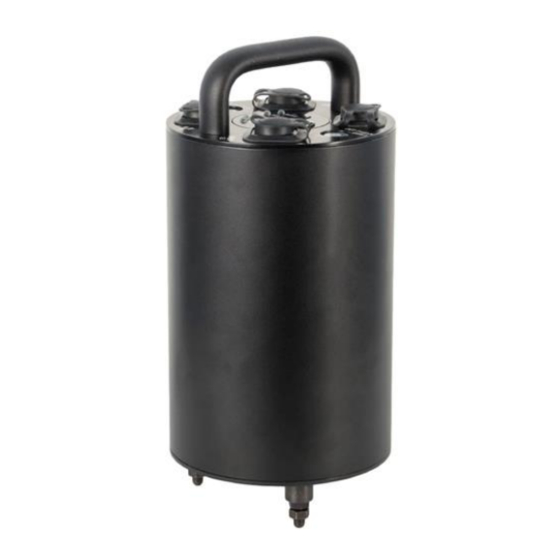

    1.4 Construction of ZET 7152-N-VER.3 Components of the ZET 7152-N-VER.3 are placed inside of a cylindrical package. Overall view of ZET 7152-N-VER.3 is shown in Figure 1.1. LLC "ETMS" Tel./Fax.: +7 (495) 739-39-19, www.zetlab.com...
  • Page 8 Off-line recorder ZET 7173 is used for recording the data obtained from digital sensors of ZET 7152-N-VER.3. Data recording starts automatically as ZET 7152-N-VER.3 is switched on. The data is saved to a microSD card as files in special format.
  • Page 9 Synchronization module ZET 7175 is used for synchronization of sensors time with global time. 5. Interface converter ZET 7176 Interface converter ZET 7176 is used to connect the digital sensors of ZET 7152-N-VER.3 to PC via Ethernet interface as well as to configure digital sensors parameters. 6. Integrated battery ZET 7152-N-VER.3 has an integrated battery allowing to record the registered signals to...
  • Page 10 ZET 7152-N-VER.3. «Power» key is used to switch ZET 7152-N-VER.3 on/off. In order to switch ZET 7152-N- VER.3 on, press and hold “Power” key for at least 3 seconds. To switch ZET 7152-N-VER.3 off, click the “Power” key. LLC "ETMS"...

  • Page 11: Zet 7152-N-Ver.3: Setting-Up Procedures

     Perform visual examination, check ZET 7152-N-VER.3 for any mechanical damage. Recommendation: In the case if there is a room for storing of ZET 7152-N-VER.3, it is recommended to save the package. If ZET 7152-N-VER.3 is transported, it should be placed into the package, so that to avoid damage.

  • Page 12: Integrated Battery: Operating Rules

    Integrated battery: operating rules ZET 7152-N-VER.3 has lead battery (5 Ah capacity). The battery has leak-proof package and gas recombination system. Table 2.1 shows battery operational requirements. Table 2.1 Battery operational requirements Parameter Value Storage temperature range, ºС -35…50 Operating temperature range, ºС...

  • Page 13: Installation Of Zetlab Software To Pc

    In order to install ZETLAB software to PC, one should: 1. Put the Software CD (included into delivery scope) into the PC; 2. Run «ZetLab.msi», follow the instructions and complete installing ZETLAB Software to the PC; Attention! You should be logged-in as an administrator to install the software.

  • Page 14: Connecting Zet 7152-N-Ver.3 Seismograph To Pc

    ZET 7152-N-VER.3 to PC via Ethernet interface, connect the cable PatchCord UTP (Cat. 5е) to Ethernet port of ZET 7152-N-VER.3 and free Ethernet port of the PC. As ZET 7152-N-VER.3 is connected to the PC, enable “Power” key at the top panel of ZET 7152-N-VER.3. The system will find and install the corresponding driver.
  • Page 15 Main reasons for that are as follows:  IP-address of the PC connected to ZET 7176 is not in the same network with IP- address of the interface converter; LLC "ETMS" Tel./Fax.: +7 (495) 739-39-19, www.zetlab.com...
  • Page 16 In order to check current IP-address of the interface converter, enter the menu (with right click on the interface converter), enter “Properties” menu and go to “Device” tab (Figure 2.4). The parameter «IPv4 Address» will indicate the current IP-address of the interface converter. Figure 2.4 “Device” tab LLC "ETMS" Tel./Fax.: +7 (495) 739-39-19, www.zetlab.com...
  • Page 17 In the case if detailed display mode is enabled, the right section of the window will display basic parameters of measuring channels. In order to select a sensor to be configured, double-click its name (more information is available in “ZETLAB Software. User manual”). LLC "ETMS" Tel./Fax.: +7 (495) 739-39-19, www.zetlab.com...

  • Page 18: Configuring Zet 7176 Interface Converter

    In order to configure interface converter ZET 7176, one should: Set the network address in accordance with applicable requirements in the fields “Ipv4  address”, “Subnet mask”, “Default gateway” of “Ethernet” tab (Figure 2.7). Figure 2.7 «Ethernet» tab LLC "ETMS" Tel./Fax.: +7 (495) 739-39-19, www.zetlab.com...
  • Page 19 7152-N-VER.3. The system will automatically change the bit rate of digital sensors, which are connected to the interface converter. Note: additional information regarding configuration of ZET 7176 interface converter is available in the document “ZET 7176 User Manual”. LLC "ETMS" Tel./Fax.: +7 (495) 739-39-19, www.zetlab.com...

  • Page 20: Configuring Sensors Included Into The Scope Of Zet 7152-N-Ver.3

    Configuring sensors included into the scope of ZET 7152-N-VER.3 Before starting to use ZET 7152-N-VER.3, it is necessary to configure corresponding digital sensors. Note: primary configuration of ZET 7152-N-VER.3 is performed by the manufacturer. Please, note that in the field “Node 2 ÷ 63” of “Information” tab there should be set a unique address of each device of the measuring network.
  • Page 21 The devices included into the scope of ZET 7152-N-VER.3 have the following addresses: Digital accelerometer ZET 7152-N – «3», «4», «5»;  Short-period seismometer ZET 7156 – «7», «8», «9»;  Off-line recorder ZET 7173 – «45», «46»;  Synchronization module ZET 7175 – «47», «48».

  • Page 22: Configuring Digital Short-Period Seismometer Zet 7156

    2.10). In order to configure the seismometer, set corresponding parameters in “Configuration” tab. Figure 2.10 “Configuration” tab Note: additional information regarding configuration of short-period seismometer ZET 7156 is available in “ZET 7156 user manual”. LLC "ETMS" Tel./Fax.: +7 (495) 739-39-19, www.zetlab.com...

  • Page 23: Configuring Digital Accelerometer Zet 7152-N

    (Figure2.11). In order to configure the accelerometer, set corresponding parameters in “Settings” tab. Figure2.11 “Settings” tab Note: additional information regarding configuration of digital accelerometer ZET 7152-N is available in the document “ZET 7x52-N, User Manual”. LLC "ETMS" Tel./Fax.: +7 (495) 739-39-19, www.zetlab.com...

  • Page 24: Configuring Off-Line Recorder Zet 7173

    In order to configure off-line recorder ZET 7173, it is necessary to: Select property “All addresses” in the field “Data recording mode” of “Recording” tab  (Figure 2.12). Figure 2.12 ZET 7173: “Recording” tab LLC "ETMS" Tel./Fax.: +7 (495) 739-39-19, www.zetlab.com...
  • Page 25 “Linear” property in the field “Type of record” of “Storage” tab  (Figure 2.13) Figure 2.13 ZET 7173: “Storage” tab Note: additional information regarding configuration of off-line recorder ZET 7173 is available in «ZET 7173 User manual». LLC "ETMS" Tel./Fax.: +7 (495) 739-39-19, www.zetlab.com...

  • Page 26: Configuring Synchronization Module Zet 7175

    1. Select “On” in the field “GPS receiver activation”. 2. Select “Off” in the field “LED indication for receiver status”. Note: additional information regarding configuration of synchronization module ZET 7175 is available in the document « ZET 7175, User Manual». LLC "ETMS" Tel./Fax.: +7 (495) 739-39-19, www.zetlab.com...

  • Page 27: Operation Of Zet 7152-N-Ver.3

     Using M8 screws, attach the mounting panel #1 fixed to ZET 7152-N-VER.3 (observe direction of X axis of ZET 7152-N-VER.3) to the concrete surface in the area of seismic activity control – for instance, at the top surface of bore pile, foundation surface, etc;...

  • Page 28: Using Zet 7152-N-Ver.3 In Off-Line Mode

    Make sure that the battery is charged; if necessary, charge the integrated battery (see Clause Ошибка! Источник ссылки не найден.). Note: full battery charge level enables over 18 hours of ZET 7152-N-VER.3 operation at ambient temperature over 10°С. Connect ZET 7152-N-VER.3 to PC via Ethernet interface (see Clause Ошибка! ...

  • Page 29: Using Zet 7152-N-Ver.3 In Stationary Mode

    Using ZET 7152-N-VER.3 in stationary mode Stationary installation of ZET 7152-N-VER.3 is used in the case if ZET 7152-N-VER.3 is used within such automated monitoring systems as seismic impact control system, structural health monitoring system, etc. Stationary mounting of ZET 7152-N-VER.3 implies its connection to local automated monitoring system for the purpose of further data transfer to server and AWS systems.

  • Page 30: Copying The Signals From Zet 7152-N-Ver.3 Memory To Pc

    Copying the signals from ZET 7152-N-VER.3 memory to PC In order to save the registered signals to PC memory, ZETLAB software uses two directories – one for saving signals and another one for storage of compressed signals data. In order to set directories configuration, it is necessary to activate ZETLAB icon and enable the panel «User’s path configuration»...
  • Page 31 (signals, compressed signals), you will see the window “Choose the directory”. Here you can assign configuration path and enable “Apply” key. Figure 3.2 Window “Adjusting configuration access” LLC "ETMS" Tel./Fax.: +7 (495) 739-39-19, www.zetlab.com...
  • Page 32 Sequence of copying the registered signals from ZET 7152-N-VER.3 to PC is as follows: 1) Start ZETLAB Software, 2) Connect USB cable to “ ” port of ZET 7152-N-VER.3 and a free USB-port of the PC. 3) The program for files saving and conversion (Figure 3.3) will start...

  • Page 33: Possible Faults, Troubleshooting

    (without any intermediate devices, like HUB, etc.)  Connection failure of ZET 7152-N-VER.3 via Ethernet interface. Make sure that ZET 7152-N-VER.3 and the PC are located in one and the same subnet (see Clause Ошибка! Источник ссылки не найден.). LLC "ETMS"...

  • Page 34: Technical Maintenance

    Technical maintenance Technical maintenance of ZET 7152-N-VER.3 should be performed at least once in 6 months (integrated battery should be charged in accordance with the requirements specified in Clause Ошибка! Источник ссылки не найден.). LLC "ETMS" Tel./Fax.: +7 (495) 739-39-19, www.zetlab.com...

  • Page 35: Storage And Transportation Requirements

    There should not be any acid or caustic fumes or any other chemically active substances and their fumes, which may cause corrosion in the room, where ZET 7152-N-VER.3 is stored. In the course of ZET 7152-N-VER.3 packages loading and transportation, the handling marks and symbols requirements should be observed.

  • Page 36: Annex А

    Annex А Stationary mounting of ZET 7152-N-VER.3 ZET 7152-N-VER.3 is mounted on solid surface and is fixed by means of mounting plates. The table below contains guidelines for mounting plate selection. In the case of mounting at horizontal surface one should use “Plate 1”.
  • Page 37 Connection dimensions of Mounting Plate 1 LLC "ETMS" Tel./Fax.: +7 (495) 739-39-19, www.zetlab.com...

  • Page 38: Record Of Changes

    Record of changes Number of sheet(s) (page(s)) Total Docum File # and number of date of Signatur ndme Date Substitute sheet(s) numbe accompanyin Amended Void (page(s)) g document LLC "ETMS" Tel./Fax.: +7 (495) 739-39-19, www.zetlab.com...
