UltraLux SSMFR4Z Manual

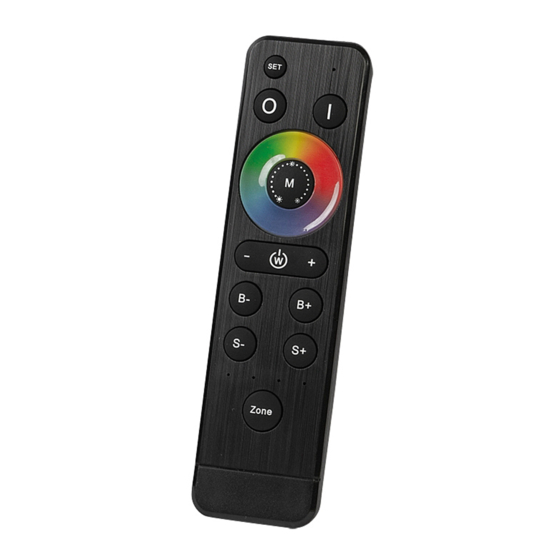

2.4G RF multifunctional touch remote control, 4 zones
DESCRIPTION
2.4G SMART RGBW system contains of RF multifunctional controller and multifunctional TOUCH remote
control. The controller supports four control modes: single colour LED strip, colour temperature control,
RGB and RGBW LED strips. The multifunctional touch remote control allows grouping of LED lighting up to
four zones.
SSMFR4Z is an RF remote control for multifunctional controller SSMFC24A.
TECHNICAL DETAILS
•
Working voltage: 2x AAA batteries 1.5 V
•
Number of control zones: 4
•
Frequency: 2.4 GHz
•
Index of protection: IP20
•
Remote distance: up to. 20 m
•
Dimensions: 148/40/21 mm
•
Working temperature: -10⁰ C ÷ +40⁰ C
•
Warranty: 2 years
Wall hanger for RF remote, which can be mounted by mounting sticker or by fastener included in the kit.
INSTRUCTIONS
The number of controllers and remote controls in one system is unlimited. 2.4G Smart RGBW system has
one unique RF code for communication. Each controller and each remote control can remember only one
RF code, recorded in the first programing. New RF code can be recorded after delete the old one.
• Pairing of SSMFR4Z to controllers
Step
Connect the load to the controllers and turn
1
the power on.
Select area
2
Press and hold "ON" on the remote control for
5 seconds. The indicator of the remote control
3
will flash quickly, means it enters the pairing
code transmission.
The load flashes 3 times and return to the
4
initial state
Model № SSMFR4Z
Operation Instructions
1.It is necessary to clear the code first, if the
controllers was coded before.
2.Pairing operation can be performed within
the remote control range.
Select the area with the "Zone" key and the
corresponding indicator lights up
Remote controller will automatically exit code
transmission after 60 seconds, or by pressing
any key.
Pairing is finished successfully
1 1
ver.1.1
