NOTE: This Remote Control unit is for DC motor type fans only.
®
The RC1000 Aire Control
has 1024 code combinations to avoid potential interference fr o m other remote units.
Th e frequency o n your Receiver and Transmitter units have been preset at the factory.
We recommend setting up a new frequency while installing ceiling fan instead of using the
initial frequency set by factory.
surrounding fans. Please use a small size tool to change the setting.
Restore power to ceiling fan and test for proper operation.
Install the two "AAA" 1.5 volt batteries (included). To prevent damage to the transmitter
remove the batteries if it is not used for long periods of time.
1.CREATING A UNIQUE FREQUENCY
Step 1. Within 60 seconds of turning the receiver AC power ON. Press the
transmitter's "Stop" botton, or until the fans light blinks.
Step 2. Once the receiver has detected the frequency the down light will blink
twice. This will indicate that the receiver has learned the frequency that was
previously selected on the transmitter.
Note: While creating a unique frequency and after the AC power is on, do not press
any other button on the transmitter before pressing the "Stop" button doing so will
cause the procedure to fail.
After completing the steps above, you should be able to operate the ceiling fan and
light. If the fan is not responding to the transmitter, please turn off power to the
receiver and repeat Step 1 and 2. (There is no indication if your fan is not equipped
with a light). Please proceed to test the fan speed to verify the remote and receiver
are on the same frequency.
2.OPERATING THE REMOTE CONTROL/WALL CONTROL
Your DC brushless motor is equipped with a self learning frequency function
remote control. Restore power to ceiling fan and test the transmitter as below
for proper operation: (Fig. 2)
A. 1, 2, 3, 4, 5 and 6 button:
These six buttons are used to set the fan speed as follows:
1 = Low speed
2 = Medium Low speed
3 = Medium speed
4 = Medium High speed
5 = High speed
6 = Extra High speed
B.
Reverse button: This button is used to change the direction of the
rotation of the blades; forward for warm weather or reverse for cool weather.
C.
button: This button turns the power Off.
D.
Button: These buttons turn the light O N or OFF. The following
instructions apply to ceiling fans that feature a DOWN light (
only or ceiling fans that feature an UP light (
(
button) that are controlled independent of each other;
This product is protected by United States Federal and/or State Law,including Patent,Trademark and/or Copyright Laws.
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER
OPERATING INSTRUCTIONS
System is equipped with a learning frequency function which
(Fig. 1) To avoid frequency interference from other
button) and a DOWN light

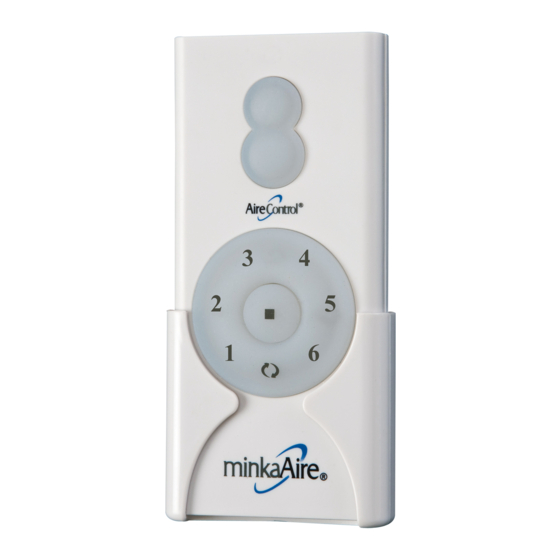

Universal Hand Held Remote System
Read and Save These Instructions
button)
Model RC1000
U.S. Patent(S):D533,514;D551,008
8,253,272
Advertisement
Table of Contents
Summary of Contents for Minka Group minkaAire AireControl RC1000
- Page 1 Universal Hand Held Remote System Model RC1000 U.S. Patent(S):D533,514;D551,008 8,253,272 Read and Save These Instructions This product is protected by United States Federal and/or State Law,including Patent,Trademark and/or Copyright Laws. WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER OPERATING INSTRUCTIONS NOTE: This Remote Control unit is for DC motor type fans only.
- Page 2 Press and release the button for the desired light to turn the light ON or OFF. Press and hold the button to set the desired light brightness. The light will cycle between bright and dim settings as long as the button is pressed. The light key has an automatic auto- resume feature that allows the light to remain at the same brightness as the last time it was turned off.
Need help?
Do you have a question about the minkaAire AireControl RC1000 and is the answer not in the manual?
Questions and answers
My Minka fan has a mind of its own. At some point during the day, the speed increases without anyone pressing any buttons. Any suggestions?
Based on the provided information, there is no mention of any condition that would cause the Minka Group AireControl RC1000 fan to increase speed automatically. Fan speeds are manually set using buttons labeled 1 through 6 on the remote. Therefore, no automatic speed increase is indicated.
This answer is automatically generated
my fan changes speeds on its own
The Minka Group AireControl RC1000 fan may change speeds on its own due to frequency interference from other remote units. The system has a learning frequency function with 1024 code combinations to avoid interference, but if a unique frequency is not set during installation, nearby remotes may cause unintentional operation.
This answer is automatically generated
Cannot change fan directions
To change the fan direction on the Minka Group AireControl RC1000, press the Reverse button on the remote. This changes the blade rotation direction for warm or cool weather.
This answer is automatically generated
How do you use the reverse switch?
To use the reverse switch on the MinkaAire AireControl RC1000, press the "Reverse" button on the remote control. This changes the direction of the fan blades: use forward for warm weather and reverse for cool weather.
This answer is automatically generated

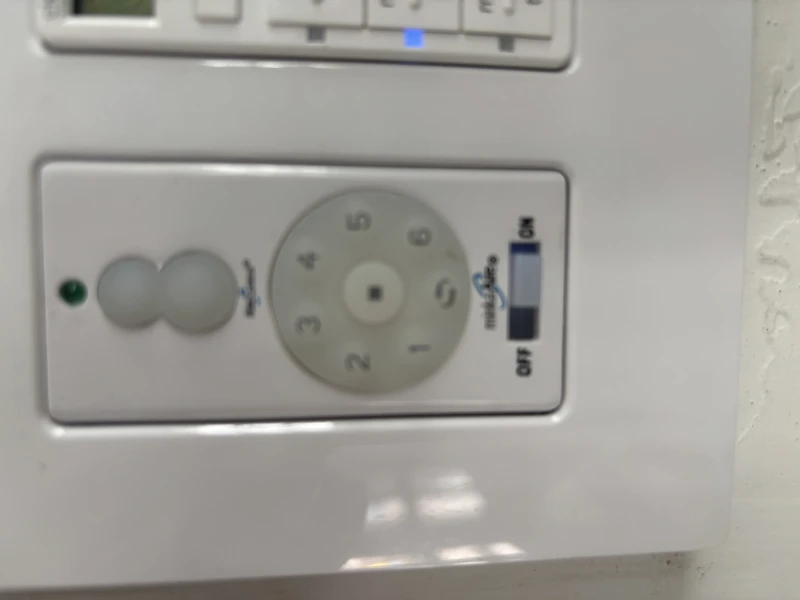

I recently replaced my old Minka Simple with a new one of the same model. In additional to the remote control I have a wall control/switch. The new fan is paired to the new remote but the old wall switch does not control the fan. I assume that I have to reprogram the old wall switch. If I do that will that cause the new remote to no longer work?
