HWg-SH2
MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the HWg-SH2 and is the answer not in the manual?

Questions and answers

Summary of Contents for HW Group HWg-SH2

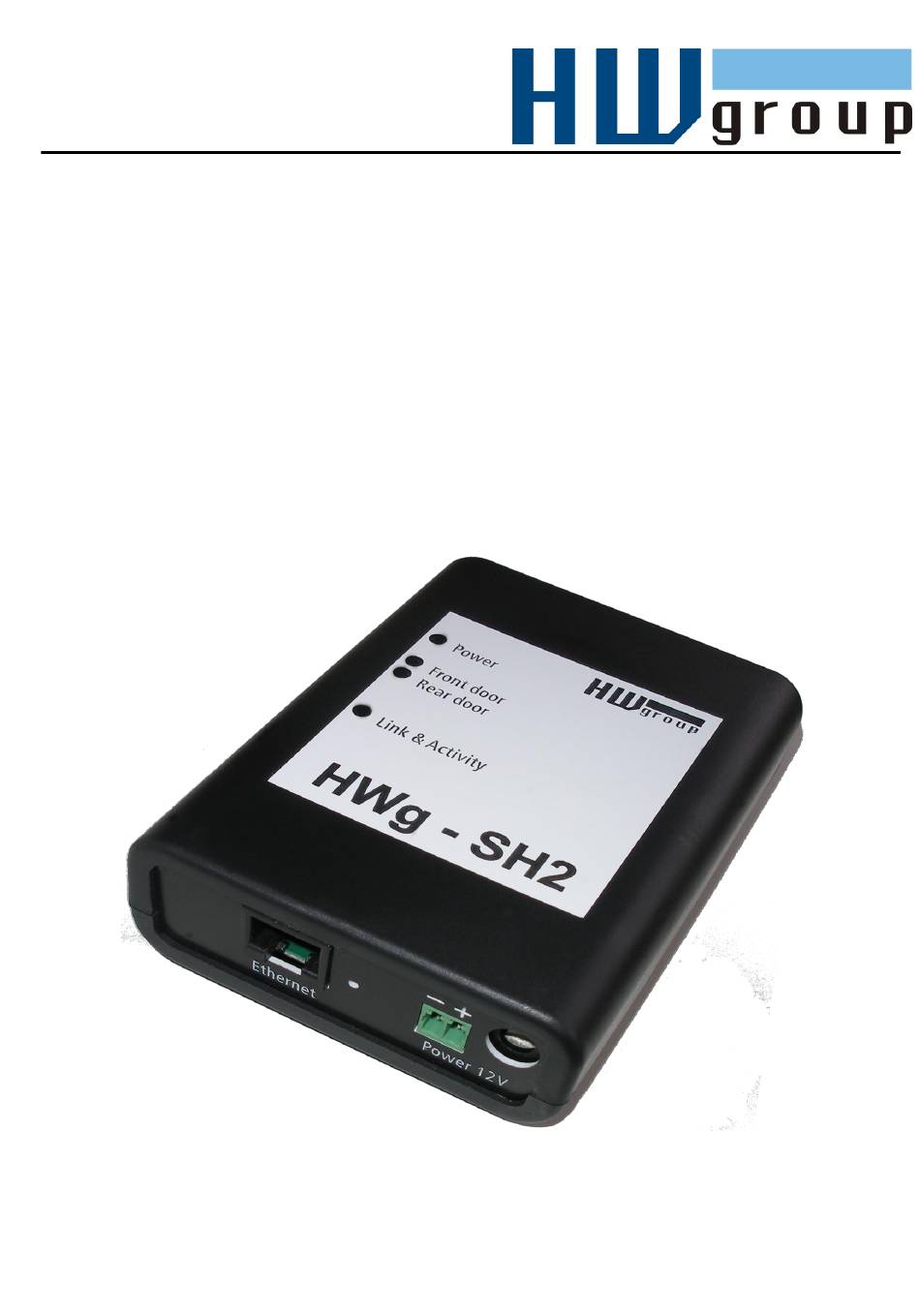

  • Page 1 HWg-SH2 MANUAL...
  • Page 2 HWg-SH2 – manual HW group HWg-SH2 connections Status LEDs  Power (green)  Front door (yellow =locked)  Rear door (yellow = lock)  Link & Activity (yellow) ETHERNET 10/100 Mbps Reset hole Use paper clip Push and hold 10 seconds after...

  • Page 3: Technical Specification

    HWg-SH2 – manual HW group Technical specification  Controls: o two swing handles o two door dry contacts o one lock connector for RFID reader or push button  Built-in WWW interface for configuring and controlling unit  Support for HWg-DCD or other central controlling application ...

  • Page 4: Possible Connections

    HWg-SH2 – manual HW group Possible connections Standard cabinet Door contact Door contact Front doors RFID reader Rear doors Dry contact Push button HWg-SH2 Ethernet IP Access possibilities Access possibilities with HWg-DCD WEB access SMS CODE RFID CARD (optional) ADMIN – Command Center DIN KEY www.HW-group.com...

  • Page 5: Configuring The Ip Address - Udp Config

    Connect the unit to the Ethernet (patch cable to a switch, or a cross-over cable to a PC).  Connect swing handles and door contacts.  Plug the power adapter in to a power outlet and connect it to the HWg-SH2 power connector.  The green Power LED lights up on the top of cover.
  • Page 6 HWg-SH2 – manual HW group First steps Restoring software factory defaults In UDP Config click a device MAC address within 60 seconds after powering up the unit Click button Load defaults to restore factory defaults. If button is grayed still, close Details and press Find Devices again.
  • Page 7 HWg-SH2 – manual HW group First steps 3) WWW interface of the device  To open the WWW interface of the device: Enter the IP address into a web browser Click the underlined IP address in UDP Config  The WWW page displays current door status.
  • Page 8 HWg-SH2 – manual HW group First steps 5) Add cabinet to HWg-DCD software  Run HWg-DCD software  Use menu Cabinet > Add new cabinet, or press key Ins.  Press Next, select desired device from list and press Next again. You may secure your communication optionally.
  • Page 9 HWg-SH2 – manual HW group Product configuration General setup Device name Identify the device on home page and HWg-DCD software User-defined footer For example, administrator's contact details See page bottom Standard network configuration Username and Password to door access only...
  • Page 10 HWg-SH2 – manual HW group Time If time synchronization failed, check your DNS server setting, or specify IP address as SNTP Server instead of domain name. Press to synchronize date/time immediately. www.HW-group.com...

  • Page 11: Door Setup

    HWg-SH2 – manual HW group Door Setup Must be enabled to HWg-DCD work properly! Permissions for Lock input. Default state for You may control Lock input via RFID Lock input. reader or push button www.HW-group.com...
  • Page 12 HWg-SH2 – manual HW group HWg-DCD Download last version of HWg-DCD software from http://www.hw-group.com Connections parameters to PC where HWg-DCD software is installed Must be enabled to be device detected in HWg-DCD software Check in HWg-DCD software Use username and password used File >...
  • Page 13 HWg-SH2 – manual HW group System Lock your settings Demo mode allows you protect all device settings from changes. In this mode all visitors can freely browse and see all pages, but no configuration change is accepted. You can easily put device to public internet and nobody will change the configuration.
