Original Instructions, Revision 1 August 2020

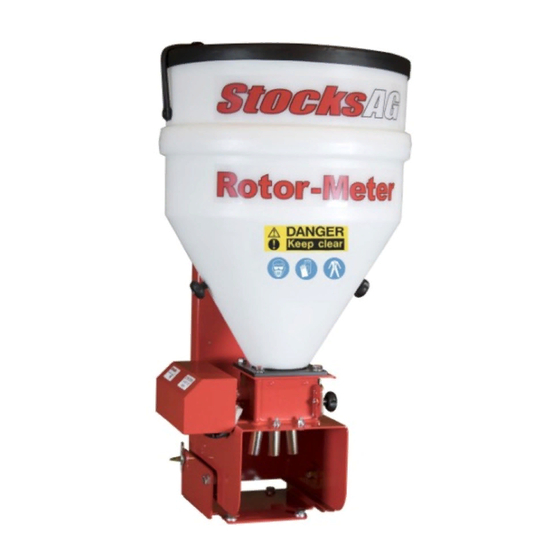

ROTOR METER 65 & 130

Vari Speed

Original Operating Manual and parts list

Read carefully before installation and

operation

This document must not be copied duplicated or distributed without prior consent .

All and patent rights apply

STOCKS AG LIMITED, CROMWELL ROAD, WISBECH, CAMBRIDGESHIRE, UK.

Tel: 00 44 (0) 1945 464 909 Email: sales@stocks-ag.co.uk www.stocks-ag.co.uk

Table of Contents

Need help?

Do you have a question about the ROTOR METER Vari Speed 65 and is the answer not in the manual?

Questions and answers

Summary of Contents for Stocks AG ROTOR METER Vari Speed 65

Page 1 Read carefully before installation and operation This document must not be copied duplicated or distributed without prior consent . All and patent rights apply STOCKS AG LIMITED, CROMWELL ROAD, WISBECH, CAMBRIDGESHIRE, UK. Tel: 00 44 (0) 1945 464 909 Email: sales@stocks-ag.co.uk www.stocks-ag.co.uk...
Page 2 Index 2020 Section Page No. Index General information Technical data Intended use Unintended use Contents of the EC Declaration of Conformity Contents of the UKCA Declaration of Conformity Machine identification Warranty Safety Emergency Stop Instructions Maintenance Safety warning decals and safety signs 10-1 Clearing a blockage 10-2...
Page 3: General Information
3-1 General information Congratulations on your Rotor Metre purchase; Please check the machine for any transport damage upon receipt and advise your supplier of any problems immediately. Late claims regarding any damage may be rejected. IMPORTANT This Operating Manual forms part of the machine and must be readily available for the operator who must read and follow the points covered before use 3-2 Technical data Model: Rotor Meter (Gravity Fed)
Page 4 Safety of machinery – Safety distances to prevent hazard zones aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaabeing reached by the upper and lower limbs. The manufacturer stated above holds the technical file for this machine. Signed on behalf of Stocks Ag Ltd Name: J Woolway Date:...
Page 5 Safety of machinery – Safety distances to prevent hazard zones aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaabeing reached by the upper and lower limbs. The manufacturer stated above holds the technical file for this machine. Signed on behalf of Stocks Ag Ltd Name: J Woolway Date:...
Page 6: Machine Identification
ROTOR METER MK 2 MODEL 217200 SERIAL No MANUFACTURED 2021 BY:- STOCKS AG LIMITED CROMWELL ROAD WISBECH, CAMBS. PE14 OSD, UK The machine the serial number decals are mounted on the steel chassis to one side of the hopper 6-2 Warranty We provide a 12 month warranty as of the date of invoice (your invoice for the machine which will serve as a warranty certificate).
Page 7 After working the machine ensure that any unused product is returned safely to its original packaging Stocks AG Ltd. does not accept any liability for the storage and use of the material being applied If unsure contact the material supplier for more information.
Page 8: Maintenance
8-1 Emergency Stop instructions 1. Power down the control system immediately by switching the main power switch on the left hand side of the cab control panel to the upper position A V ari Speed Control Panel Air Force Control Panel 2.
Page 9: Safety Warning Decals
9 Safety Warning Decals Important ; observe this safely decals on the machine WARNING Read and understand the Operators Manual instructions before operating this machine Operator errors can result in serious injury WARNING Danger moving parts Risk of serious injury whilst the machine is in operation WARNING Risk of injury...
Page 10: Clearing A Blockage
10-1 Clearing a blockage Disconnect the main power supply Ensure the parent machine is stationary, switched off, and parked on level ground Ensure the main power switch on the control panel is off and unplug the power supply cable or disconnecting the power cable from the vehicle battery.
Page 11 11-1 65L and 130L Machine Mounting Mount the machine using the Base Plate. This has 4 holes in the base to take M12 bolts (see below) use these to attach to the parent vehicle and is attached to the chassis by 2 bolts and spacers which act as the pivot, and a removable steel pin secured by an ‘R’...
Page 12: Electrical Components
12 -1 Electrical Components Vari Speed machine components 1. GA115B Control Panel 2. MM107B 5m Fused Power Cable 3. MM108B 6m Control Connector Cable 4. MM044B Feed Motor Air Force machine components 1. FJ110D Control Panel 2. FJ107F 7m Fused Power Cable 3.
Page 13: Control Boxes
13 Control Boxes VARI SPEED CONTROL This is a simple and effective low cost manually operated electric control used to instantly start and stop the feed motor at headlands, and uses a dial control to set the feed motor speed and thus the application rate. It is not linked to forward speed so once calibrated the operator drives at a consistent forward speed to maintain the rate, or can manually increase or decrease application rates on the move using the dial.
Page 14: Changing The Feed Rollers
The assembled rollers and spacers should not be under compression. NOTE. You should be able to rotate the feed shaft with your fingers – if it feels excessively tight, check the feed roller and spacer composition or call Stocks AG for advice. WARNING...
Page 15 15 5mm feed roller combinations Feed rollers and spacer arrangement for 1 outlet machines 1 24mm Black Spacer Stainless Shim Washer A 5mm Feed Rollers (see page 14) Feed rollers and spacer arrangement for 3 outlet machines and 2 outlet opera on 3mm White Spacer Stainless Shim Washer 24mm Black Spacer...
Page 16 16 8 section feed roller combinations Feed roller and spacer arrangement for 1 outlet machines ﬁ ed with 1 feed roller 1 3mm White Spacer 2 28mm Spacer 5mm Black Spacer Feed Roller 6.5mm white Spacer Feed rollers and spacer arrangement for 1 outlet machines ﬁ...
Page 17: Product Calibration
17-1 Product Calibration You will have to perform a catch and weigh test to establish the flow rate of product, and will need a suitable container to collect the product being metered and an accurate set of scales to weigh kilograms and grams, and a timer.
Page 18: Parts Drawing
18 Rotor Meter Vari Speed 65L & 130L Parts drawing Please refer to pages 15 and 16 showing feed roller and spacers combinations 9, 10a & 10b 7, 8a & 8b Air-Force Control...
Page 19 19 Rotor Meter Vari Speed 65L & 130L Parts list (page 1) Item Part # Description Remarks FJ003A-Ass. Hopper Bracket 65L hopper FJ003A-Ass. Hopper Bracket 130L hopper FJ017D Hopper Base Plate FJ017S Base Plate Seal FJ026A-Ass. 65 Litre Hopper FJ026B-Ass. 130 Litre Hopper FJ027A-Ass.
Page 20 20 Rotor Meter Vari Speed 65L & 130L Item Part # Description Remarks M5–012 M5 x 25 Slot Head CSK Screw Qty x 6 on 130L M5-014 M5 Flat Washer Qty x 6 on 130L M5-017 M5 Nyloc Nut Qty x 6 on 130L M6-005 M6x20 Hex Head Screw M6-007...
