Arrista SA200 Installation Manual

SA200 Signal Amplifier Installation Manual
Note: Before installing the SA200 Signal Amplifier, please read the entire
contents of this manual.

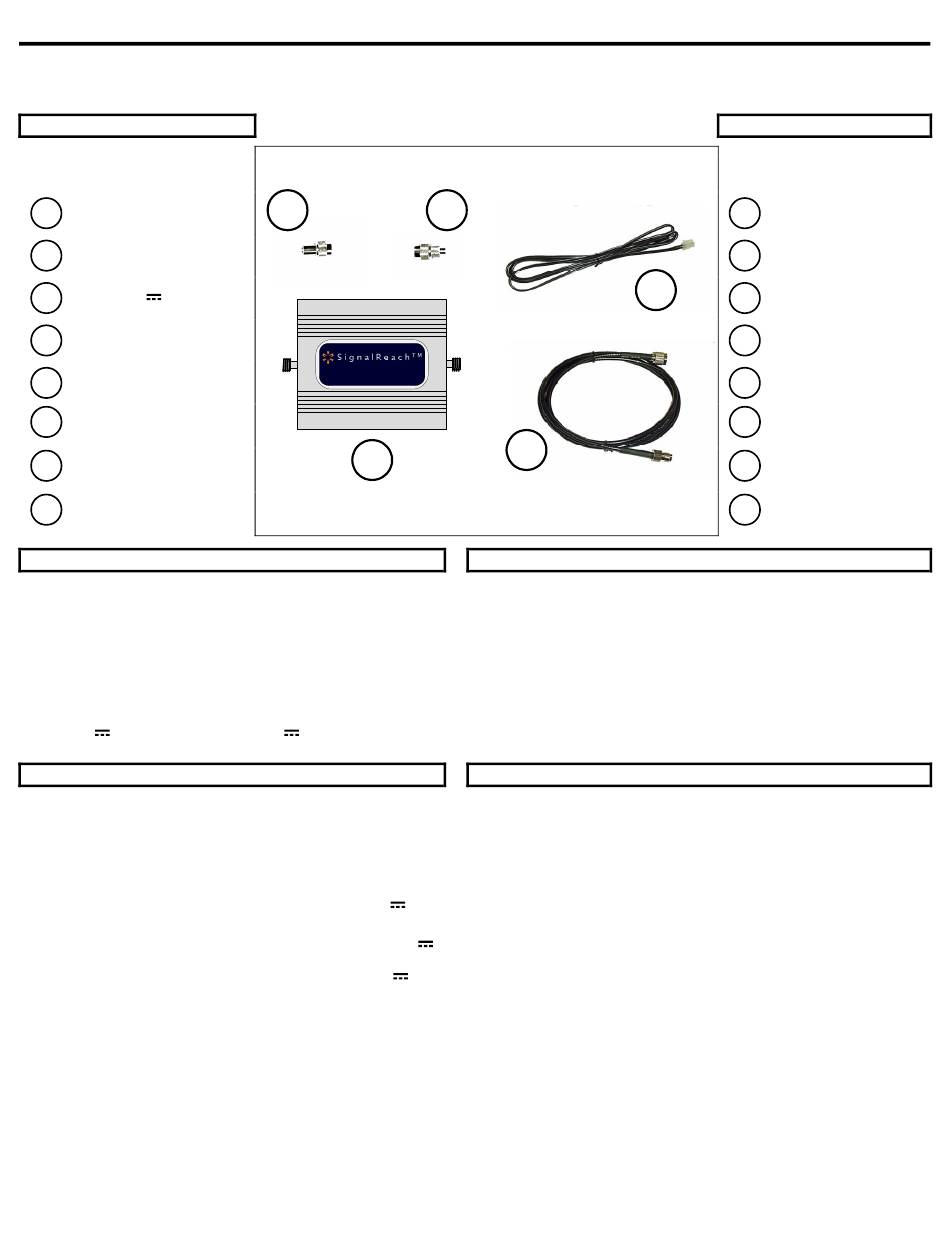

Parts List

Item Description
1
SA200 Signal Amplifier.
2
1.5 meter (59") RF cable.
3
2 meter (78") power cable.
Connector adapter FME female to
4
TNC male.
Connector adapter FME male to
5
TNC male.
Cellular telephone / Cradle or RF
6
Output Device. (Optional item
purchased separately)
Antenna Cable. (Optional item
7
purchased separately)
Antenna. (Use 3 dB antenna for
8
optimal performance) (Optional item
purchased separately)

Tools and Other Materials Required

Item Description
1 Electric drill (as required for signal amplifier mounting holes).
2 Screw driver.
3 Qty 4 screws (length and type as required for signal amplifier
mounting).
4 Wire cutters / strippers.
5 Qty 2 wire connection insulators or insulating material (as required
for power cable connection to 12V

WARNINGS!

∇ NOTICE: During transmitter operation, a minimum distance of
50cm (20 in.) shall be maintained between the antenna and
personnel, in order to meet the maximum permissible exposure
(MPE) limits in section 1.1310 of FCC Rules.
∇ Mounting a signal amplifier in the engine cavity or on the
underside of the vehicle will void the manufacturer's warranty.
∇ Subjecting the amplifier to voltages greater than 30V
damage the amplifier and void the manufacturer's warranty.
∇ Any vehicle with an electrical system of greater than 30V
should use a step-down voltage regulator to bring the voltage
within the operating power range of the amplifier (10-30V
∇ Under no circumstances should the amplifier be powered up
without a properly connected 50 ohm 800/1900 MHz cellular
antenna or the amplifier may be damaged, resulting in the
manufacturer's warranty being void.
∇ For optimum performance and compatibility with cellular
service provider requirements, it is recommended that an
external antenna with a maximum gain of 3dB be installed.
∇ Use of cellular amplifiers with antennas of higher gains than 5
dBd gain is in violation of FCC regulations for which the
offender will be fully liable, and warranty claims will be voided.
It is recommended that only certified automotive installation
technicians install this product in a vehicle. Installation by any
other person is at the risk of the vehicle owner and operator.
Rev A D00050652 Made in North America
5 4

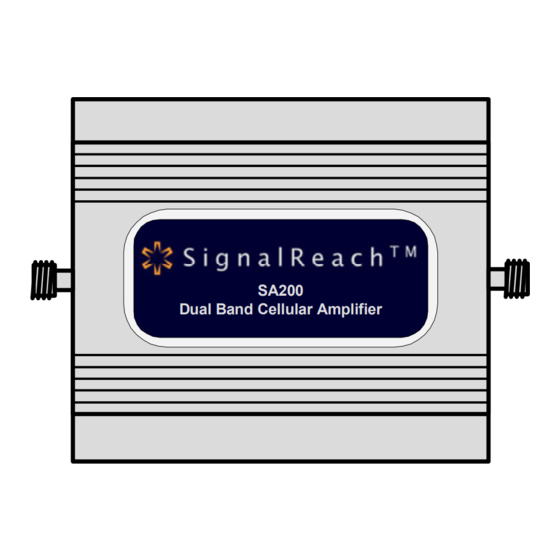

SA200
Dual Band Cellular Amplifier
1
system).
will
).
Page 1 of 1
3
2
∇
∇
∇
∇
∇
∇
∇
Rev A D00050652
1
2
3
4
5
6
7
8
Page 1 of 1
