- Page 1 O P E R A T I N G M A N U A L GRAIN CLEANER METRA ADS...
-
Page 2: Table Of Contents
CONTENTS Introduction ................................3 Purpose .................................. 4 1. Basic Technical Specifications ......................... 4 2. Configuration ................................ 5 3. Distinctiv e Features ............................5 4. Operation ................................6 5. Labeling .................................. 6 6. Safety Regulations ............................... 7 7. Mounting ................................8 8. -
Page 3: Introduction

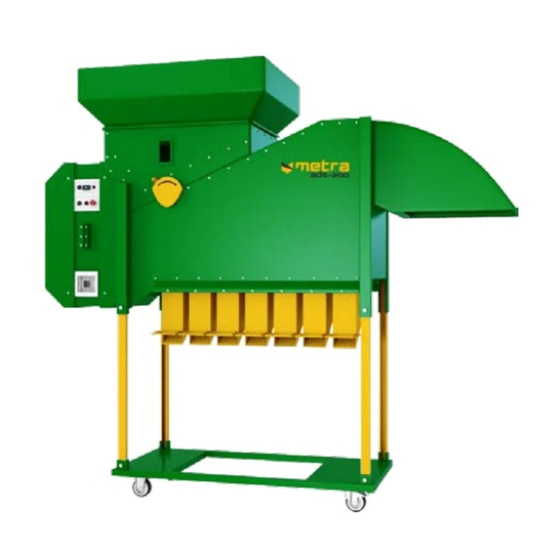

INTRODUCTION This document is an Operating Manual (Certificate) supplied with each Metra ADS Grain cleaner(other names are: Metra Separator And Seed Grader, Metra Aspiration Fractionator). It is for familiarizing oneself with the equipment, the safety operation, and acquisition of operating skills. Each person must study this Certificate before installing or operating the Metra ADS grain cleaner. -
Page 4: Purpose
2420x560x1880 mm 150 kg 220/480 V, 60 Hz 0.2 - 1.0 HP 200 bushels in hour 126х39.4х78.7 in 400 lbs ADS-200 CDC 0.2-0.75 kW, 5 tons in hour 3200х1000х2000 mm 180 kg 220/480 V, 60 Hz 0.33 - 1.35 HP 400 bushels in hour 133.9х43.3х82.7 in... -
Page 5: Configuration
3. CONFIGURATION All models of the grain cleaner Metra ADS are supplied in basic configuration. If desired, the equipment can be changed with a new contract. Complete set: Grain cleaner Metra ADS. 2. Certificate. 4. DISTINCTIVE FEATURES 4.1. Overall design: The Metra Separators are equipment for separating bulk materials on fractions within the airflow generated inside the separation chamber. -
Page 6: Operation
5. OPERATION • The Metra Separator grades source material in the airflow. • Initial grading is performed due to differences of weight and windage properties. • Heavy impurities, like stones, are separated into the first output tray. • Seeds of the highest sowing quality (the most viable, with the highest germination capacity) are directed into the second and third output trays. -
Page 7: Safety Regulations
6.2. Control labeling: Controls of the Metra Separator operation, the buttons/switches are the following: - ‘ON’ - ‘OFF’ - ‘START’ - ‘STOP’ - ‘ROTATION DIRECTION’ - ‘SPEED’ - ‘EMERGENCY STOP’. 7. SAFETY REGULATIONS Before operating the Metra Separator, the user must comply with the following safety requirements: Check the reliability of the connection of visible ground (protective earth) conductors to the equipment, availability and reliability of grounding contacts fastening, plugs, sockets, and connectors;... -
Page 8: Mounting
50/75 up to 165/245 ADS-400 0.7 / 1 3х1 / 3х1.5 up to 50/75 up to 165/245 ADS-200 CDC 0.55 / 1 3х1 / 3х1.5 up to 50/75 up to 165/245 ADS-400 CDC 0.7 / 1 3х1 / 3х1.5... -
Page 9: Adjustment Procedure
9. ADJUSTMENT PROCEDURE 9.1. The Metra Separator switching on: Set the ‘Feed Gate Control’ handle to the ‘0’ position. 2. Fill the hopper with grain to the specified level, not less than minimal level. 3. Reset the ‘EMERGENCY STOP’ button. 4. - Page 10 Properly adjusted Metra Separator will direct: - the stones/heavy impurities into the 1st tray; - the heaviest and the largest grains − into the 2nd tray (premium quality, seed grains); - slightly less heavy grains – into the 3rd (premium quality, commodity grains); - a mixture of smaller grains and the biggest but damaged seeds should go into the 4th tray;...
-
Page 11: Capacity Calculation
10. CAPACITY CALCULATION Formula for capacity calculation: Q=QN*K1*K2 where: QN- nominal capacity, t/h; Kl, K2 - conversion factor (Table 4 and Table 5). Conversion factor of grain cleaning capacity depending on the crop Table 4 Bulk weight, Bulk weight, Crop kg / cubic Factor K1 Crop... -
Page 12: Maintenance
Depending on the humidity level and impurity conten Table 5 Humidity, % Content of impurities, % K2 Factor value Up to 18 inclusive Over 19 ‘22’ ‘23’ ‘26’ ‘27’30’ 11. MAINTENANCE The Metra Separator cleaning: Before sending the Metra Separator to storage or preservation, it is necessary to perform cleaning and check fastenings of the moving parts. -
Page 13: Transportation
11.2. Complete cleaning: • Remove the cover of the CDC (Cyclone Dust Collector). • Remove all dust and other deposits from the CDC. • Remove the back cover of the CDC. • Remove all deposits in the CDC. • Clean and blow off the trays with airflow. •... -
Page 14: Storage
STORAGE • Storage of the Metra Separator is carried out in a dry ventilated space. • Rainfall and foreign objects hit is not allowed. Date Storage Storage Remarks conditions type Accepted for Withdrawn from storage storage... -
Page 15: Repair
REPAIR Operating time since the Operating time Reason for Information about Date beginning of after the last repair repair operation period, repair, hours hours... -
Page 16: Movement In Operation
MOVEMENT IN OPERATION Operating time from the Full name and Mounting Mounting Dismounting Reason for beginning date place date dismounting signature of operation period, hours... -
Page 17: Annexes
Annex 1 Metra Separator strapping scheme...
