Summary of Contents for Andatech BodyCam

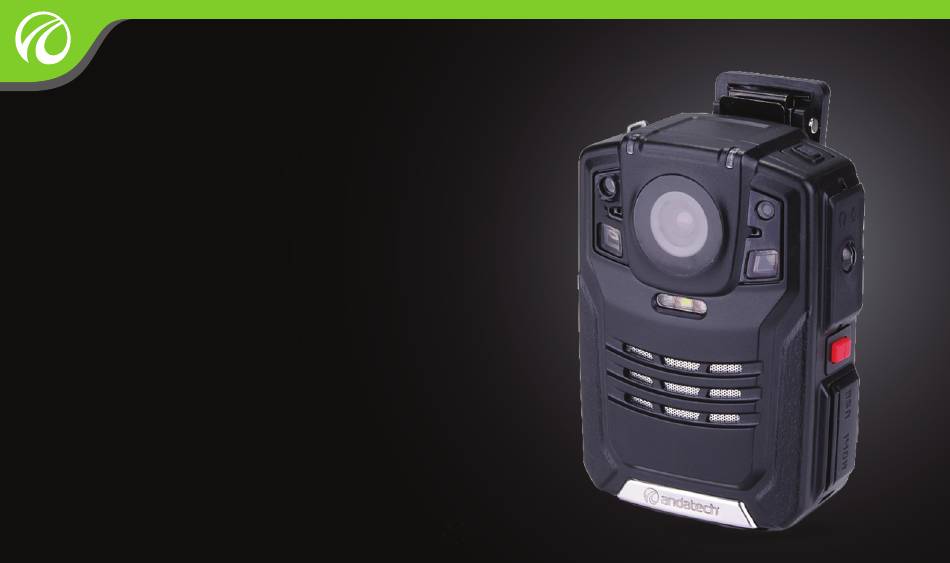

- Page 1 Andatech ® BODYCAM HD body camera for law enforcement USER MANUAL...
-
Page 2: Table Of Contents
INTRODUCTION CONTENTS MAIN FEATURES ..........3 Thank you for purchasing an Andatech® BodyCam. The Andatech® BodyCam is a state-of-the-art body camera, SPECIFICATIONS ..........3 with functions for HD video recording, photography and audio recording, designed to help law enforcement personnel DEVICE FUNCTIONS ...........4... -
Page 3: Main Features
MAIN FEATURES SPECIFICATIONS • One touch recording • Frame rate: 30 Frame/s • Bit rate: 2.5Mbit/s • Full HD 1080p video • 140° field of view • Video resolution: 1920x1080 / 1440x1080 / 1280x720 / 848x480 / 848x480PH • Built-in LCD screen and speakers •... -
Page 4: Device Functions
DEVICE FUNCTIONS... -
Page 5: Functions Overview
FUNCTIONS OVERVIEW Talkback Port: Connect to a walkie talkie using a Playback: On standby mode, press the Playback button compatible cable. to display the last video, picture or audio recorded. Press the Return key to view and select others. Video Recording: Turn on the unit and press the Video Recording button to start recording. -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS SWITCHING THE UNIT ON AND OFF RECORDING AUDIO To turn the unit on: Press and hold the Power button for 2 To record audio: Turn the unit on and press the Audio button seconds. The unit will enter Standby mode. to start recording audio. - Page 7 Image playback will light up and the unit will enter Infrared Photography mode. (Then, press the Video button to record a video, or the Picture button to take a picture in Night Mode). Pictures taken in this mode will be in black and white. Photo Video Audio...
-
Page 8: Settings
SETTINGS Setting options available: Se t up • Resolution Resolution 1920X1080 • Bit rate Bitrate • Photo size Photo size • Burst mode Burst mode • Screen brightness Screen brightness High • Volume Volume High • Night grade • Video section Turn on the unit and press the Menu button to enter the •... -
Page 9: Software Installation
SOFTWARE INSTALLATION On your computer, go to Control Panel and then System Information to find out whether it is running a 32-bit or a 64-bit version of Windows. Insert the included software CD into your computer's CD-ROM drive and based on your system type from Step 1, select either the 32-bit or the 64-bit version of the file to install. - Page 10 Note: Follow the next steps in the stated order, as you will be unable to return to a previous step. To return to a previous step, you will need to disconnect the device from the computer, and restart from Step 4. Click "Read"...
-
Page 11: Troubleshooting
TROUBLESHOOTING COMMON FAULT POSSIBLE FAULT RESOLUTION Can't boot the host Battery used up Charge the battery for 3.5 hours Protection host Click "reset" Protection host Try reconnecting the USB connection between the device and the computer Host no reponse to remote controller Lost matching information Rematching again Remote controller no response... -
Page 12: Warranty Details
To claim for warranty, contact us on 1300 800 200 or info@ The Guarantee andatech.com.au to get an RA# (Return Authorisation Number). Ensure that the RA# is clearly stated on the outside of the The product is guaranteed to be free from defects in... - Page 13 Normal Wear and Tear This warranty does not cover normal wear and tear to the product or parts. Exclusions This warranty does not cover: • Any defect caused by an accident, misuse, abuse, improper operation, lack of reasonable care, unauthorised modification, loss of parts, tampering or attempted repair by a person not authorised by the distributor.
-
Page 14: Warranty Registration
Andatech PO Box 3038 Nunawading VIC 3131 1300 800 200 www.andatech.com.au v1.0. Updated February 2016. - Page 15 PRODUCT REGISTRATION Visit my.andatech.com.au to register your warranty online. Alternatively, complete this form and forward to the address below with a copy of your proof of purchase: Andatech PO BOX 3038, Nunawading VIC 3131 Australia. Andatech® BodyCam Product Date of purchase...
- Page 16 Andatech PO Box 3038 Nunawading VIC 3131 1300 800 200 www.andatech.com.au v1.0. Updated February 2016.
