Sciton BBLINK Instructions Manual

Setting up your BBLINK Goggles is as easy as:
1. Activate License
2. Set Communication Channel
3. Pair BBLINK Goggles
4. Start Treating!
The intuitive set up software guides you through
the activation and pairing process so that you
can get to treating right away!
Lemo Connection
Illustration
grasp here
align dot
to notch
grasp
knurled
collar
By SCITON
SETUP
After unpacking the box, connect the supplied dongle:
Depending on your system, attach supplied BBLINK dongle
to the system in one of two ways:
JOULE X or JOULE 7 systems with HALO
® ®
Dongle should look like image to the right, if not, contact Service
immediately 650-543-8371 or service@sciton.com
To install the dongle (Refer to Lemo Connection Illustration
on the left):
• Locate the HALO port on the top of Joule system at center,
it is the larger of two ports if system also equipped with a Fiber
port
• Grasp upper collar of dongle cable end, Red Dot facing front of
system as shown
• Press down firmly until you hear a click, DO NOT TWIST!
To remove the dongle (Refer to Lemo Connection Illustration
on the left):
• Grasp knurled collar only (do not hold any other part of cable
end)
• Pull up firmly, DO NOT TWIST!
• Note: lifting knurl releases hidden latch inside cable end
mJOULE or JOULE X sytems with USB-C port in the back
™ ®
Dongle should look like image to the right, if not, contact Service
immediately 650-543-8371 or service@sciton.com
• Connect the dongle via the USB-C port located on the back of
the system
™

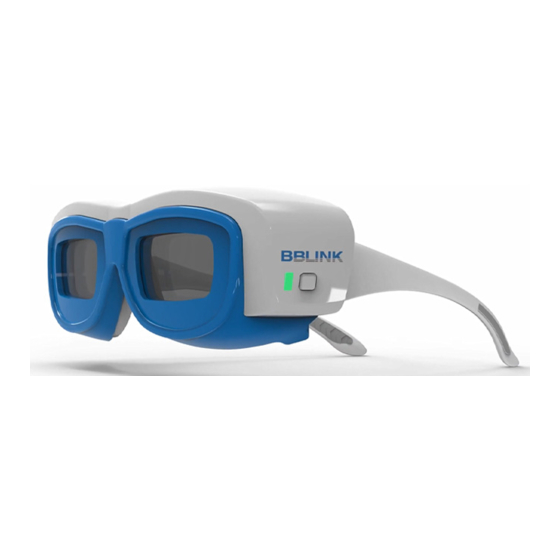

BBLINK Goggles feature proprietary technology which syncs
™
with the BBL system to blink with every pulse and block the
®
majority of the pulsed light.
Features
• Integrated IPL safety goggles
• Auto shutter blocks pulsed light
• Synced automatically to BBL System
• Compatible with all BBL
Forever Body , Forever Young
™
port
®
applications, including HERO
®
, and SkinTyte treatments
™ ™
Lemo Dongle
USB-C Dongle
,
™
