EAW DX-RVC Quick Start Manual

DX-RVC PREDEFINED FUNCTIONS
DX-RVC Remote Volume Control (For DX810 Applications)
Switch Positions * Switch Positions
ID 1 through 8 Function ID 1 through 8 Function
0 00000000 Input Level 1A 61 10111100 Input Level 7B
1 10000000 Input Level 1B 62 01111100 Input Level 7C
2 01000000 Input Level 1C
63 11111100 Input Level 7D
3 11000000 Input Level 1D 64 00000010 Input Level 7E
4 00100000 Input Level 1E 65 10000010 Input Level 7F
5 10100000 Input Level 1F
66 01000010 Input Level 7G
6 01100000 Input Level 1G 67 11000010 Input Level 7H
7 11100000 Input Level 1H 68 00100010 Input Level 7I
8 00010000 Input Level 1I 69 10100010 Input Level 7J
9 10010000 Input Level 1J
70 01100010 Input Level 8A
10 01010000 Input Level 2A 71 11100010 Input Level 8B
11 11010000 Input Level 2B 72 00010010 Input Level 8C
12 00110000 Input Level 2C
73 10010010 Input Level 8D
13 10110000 Input Level 2D 74 01010010 Input Level 8E
14 01110000 Input Level 2E 75 11010010 Input Level 8F
15 11110000 Input Level 2F
76 00110010 Input Level 8G
16 00001000 Input Level 2G
77 10110010 Input Level 8H
17 10001000 Input Level 2H 78 01110010 Input Level 8I
18 01001000 Input Level 2I 79 11110010 Input Level 8J
19 11001000 Input Level 2J
80 00001010 Output Level A
20 00101000 Input Level 3A 81 10001010 Output Level B
21 10101000 Input Level 3B 82 01001010 Output Level C
22 01101000 Input Level 3C
83 11001010 Output Level D
23 11101000 Input Level 3D
84 00101010 Output Level E
24 00011000 Input Level 3E 85 10101010 Output Level F
25 10011000 Input Level 3F 86 01101010 Output Level G
26 01011000 Input Level 3G
87 11101010 Output Level H
27 11011000 Input Level 3H 88 00011010 Output Level I
28 00111000 Input Level 3I 89 10011010 Output Level J
29 10111000 Input Level 3J
90 01011010 Group Level 1
30 01111000 Input Level 4A
91 11011010 Group Level 2
31 11111000 Input Level 4B 92 00111010 Group Level 3
32 00000100 Input Level 4C 93 10111010 Group Level 4
33 10000100 Input Level 4D
94 01111010 Group Level 5
34 01000100 Input Level 4E 95 11111010 Group Level 6
35 11000100 Input Level 4F 96 00000110 Group Level 7
36 00100100 Input Level 4G
97 10000110 Group Level 8
37 10100100 Input Level 4H
98 01000110 Group Level 9
38 01100100 Input Level 4I 99 11000110 Group Level 10
39 11100100 Input Level 4J 100 00100110 Group Level 11
40 00010100 Input Level 5A
101 10100110 Group Level 12
41 1001010 Input Level 5B 102 01100110 Group Level 13
42 01010100 Input Level 5C 103 11100110 Group Level 14
43 11010100 Input Level 5D
104 00010110 Group Level 15
44 00110100 Input Level 5E 105 10010110 Group Level 16
45 10110100 Input Level 5F 106 01010110 Group Level 17
46 01110100 Input Level 5G 107 11010110 Group Level 18
47 11110100 Input Level 5H
108 00110110 Group Level 19
48 00001100 Input Level 5I 109 10110110 Group Level 20
49 10001100 Input Level 5J 110 01110110 Group Level 21
50 01001100 Input Level 6A
111 11110110 Group Level 22
51 11001100 Input Level 6B 112 00001110 Group Level 23
52 00101100 Input Level 6C 113 10001110 Group Level 24
53 10101100 Input Level 6D
114 01001110 Group Level 25
54 01101100 Input Level 6E
115 11001110 Group Level 26
55 11101100 Input Level 6F 116 00101110 Group Level 27
56 00011100 Input Level 6G 117 10101110 Group Level 28
57 10011100 Input Level 6H
118 01101110 Group Level 29
58 01011100 Input Level 6I 119 11101110 Group Level 30
59 11011100 Input Level 6J 120 00011110 Group Level 31
60 00111100 Input Level 7A
121 10011110 Group Level 32
122-255 Reserved for future
updates
*Switch Positions: 1 = ON; 0 = OFF
EAW Commercial | One Main Street | Whitinsville, MA 01588 USA | www.eawcommercial.com
TEL: toll free in US & Canada 888.337.7404 | TEL outside US 425.892.6503 | FAX: 425.485.1152
UK 44.1268.570.808 | FAX 44.1268.570.809
Part No. 910-298-90 Rev. B 06/04 © 2004 LOUD Technologies Inc. All Rights Reserved.
DX-RVC Remote Volume Control (For DX8 Applications)
Switch Positions *
Switch Positions
ID 1 through 8 Function
ID 1 through 8 Function
0 00000000 Input Level 1A (1)
32 00000100 Output Level A (1)
1 10000000 Input Level 1A (2)
33 10000100 Output Level A (2)
2 01000000 Input Level 1B (1)
34 01000100 Output Level B (1)
3 11000000 Input Level 1B (2)
35 11000100 Output Level B (2)
4 00100000 Input Level 2A (1)
36 00100100 Output Level A&B (1)
5 10100000 Input Level 2A (2)
37 10100100 Output Level A&B (2)
6 01100000 Input Level 2B (1)
38 01100100 Group Level 1 (1)
7 11100000 Input Level 2B (2)
39 11100100 Group Level 1 (2)
8 00010000 Input Level 3A (1)
40 00010100 Group Level 2 (1)
9 10010000 Input Level 3A (2)
41 10010100 Group Level 2 (2)
10 01010000 Input Level 3B (1)
42 01010100 Group Level 3 (1)
11 11010000 Input Level 3B (2)
43 11010100 Group Level 3 (2)
12 00110000 Input Level 4A (1)
44 00110100 Group Level 4 (1)
13 10110000 Input Level 4A (2)
45 10110100 Group Level 4 (2)
14 01110000 Input Level 4B (1)
46 01110100 Group Level 5 (1)
15 11110000 Input Level 4B (2)
47 11110100 Group Level 5 (2)
16 00001000 Input Level 5A (1)
48 00001100 Group Level 6 (1)
17 10001000 Input Level 5A (2)
49 10001100 Group Level 6 (2)
18 01001000 Input Level 5B (1)
50 01001100 Group Level 7 (1)
19 11001000 Input Level 5B (2)
51 11001100 Group Level 7 (2)
20 00101000 Input Level 6A (1)
52 00101100 Group Level 8 (1)
21 10101000 Input Level 6A (2)
53 10101100 Group Level 8 (2)
22 01101000 Input Level 6B (1)
54-255 Reserved for future
23 11101000 Input Level 6B (2)
updates
24 00011000 Input Level 7A (1)
25 10011000 Input Level 7A (2)
26 01011000 Input Level 7B (1)
27 11011000 Input Level 7B (2)
28 00111000 Input Level 8A (1)
29 10111000 Input Level 8A (2)
30 01111000 Input Level 8B (1)
31 11111000 Input Level 8B (2)
Each of the predefined functions has two IDs (1) and (2) to allow two remote controls
to perform the same function.
*Switch Positions: 1 = ON; 0 = OFF

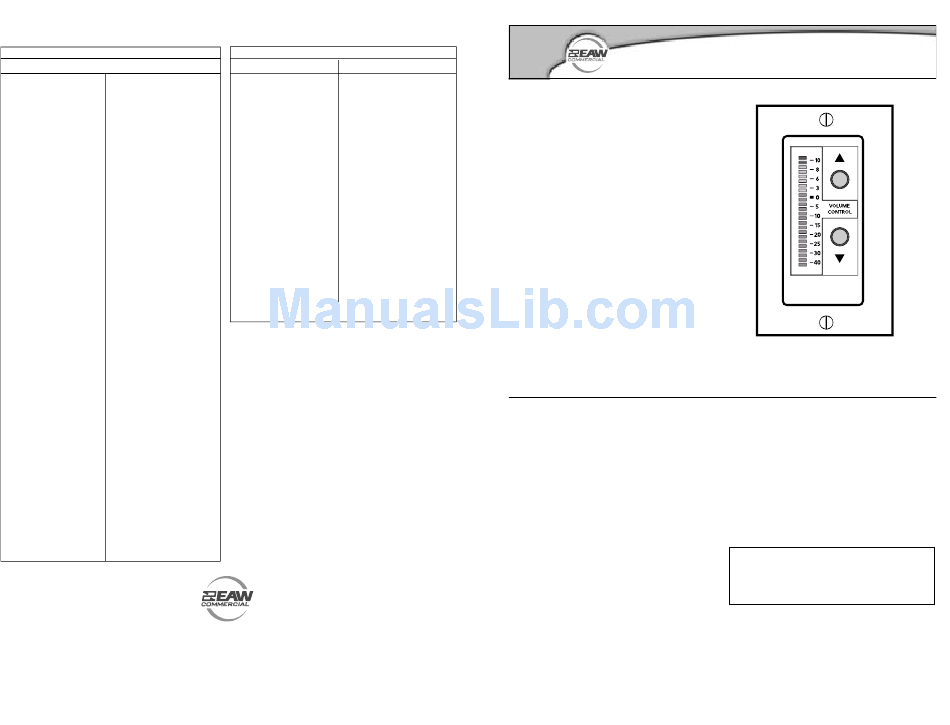

Quick-Start Guide
The DX-RVC is a real-time remote volume
control for use with the DX8 and DX810 Digital
Audio Mixer/Signal Processor. The DX-RVC can be
programmed to operate the volume for any of the
eight inputs, any output, or grouped outputs. The
predefined functions are programmed via the eight
DIP-switches on the back of the circuit board. Up
to nine remote controls (including the DX-RVC
and the DX-SW4) can be connected to the DX8 or
DX810 REMOTE BUS connector.
SAFETY FIRST!
Before connecting and using the equipment,
please read this Quick-Start Guide carefully
and keep it for future reference.
WARNING! This equipment has been
designed to be installed by qualified
professionals only! There are many factors to
be considered when installing professional
sound reinforcement systems. Some of these
factors include mechanical and electrical
considerations, as well as acoustic coverage
and performance. LOUD Technologies strongly
recommends that this equipment be installed
only by a professional sound installer or
contractor.
DX-RVC
Remote Volume Control
1. Never install, connect, or disconnect the
remote control with the DX8 or DX810
power supply on.
2. Before applying power to the DX-RVC, make
sure the wiring is correct as described in
this Quick-Start Guide.
CAUTION: To avoid the risk of electric
shock, never allow this equipment to be
exposed to rain or dampness.
