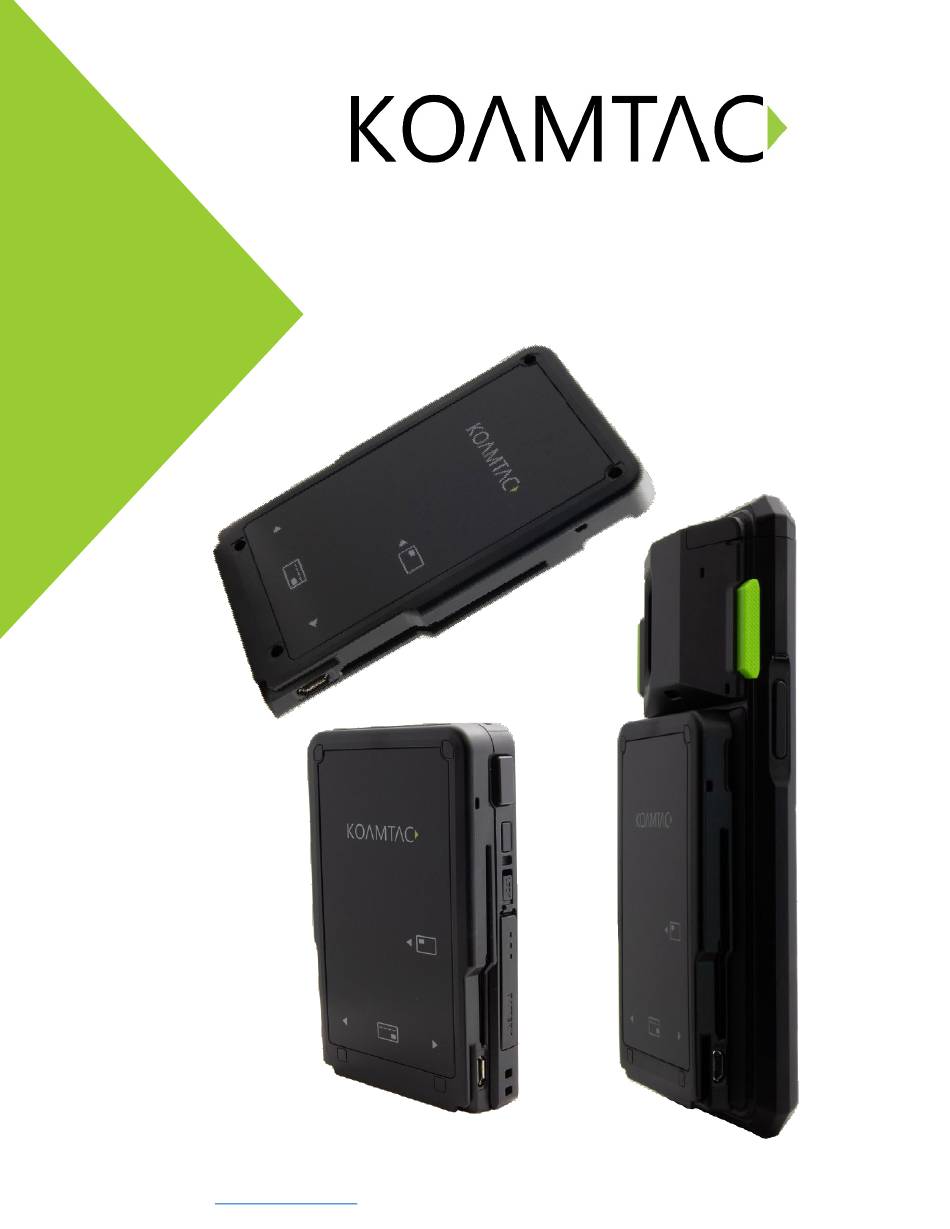

- Page 1 SLED-MSRIC Quick Guide 116 Village Blvd, Suite 305, Princeton, NJ 08540 USA ©2021 KOAMTAC, Inc. T: + 1-609-256-4700 F: +1-609-228-4373 QG_SLED-MSRIC_20210728 info@koamtac.com www.koamtac.com...
-
Page 2: Table Of Contents
Useful Special Barcodes ............................8 MSR (Magnetic Stripe Reader) ........................8 ICCR (IC Card Reader) ........................... 9 MSRIC Firmware Upgrade Port (Only for SKX-SLED-MSRIC) ..............9 Usage ..................................10 Using other Developed Applications with free SDK – Android/iOS ............10 Product Specifications ............................ -
Page 3: Product Introduction
1.1 SLED-MSRIC Diagram 1.2 How to turn on and off The SLED-MSRIC does not have its own power system. The power is supplied by the KDC470 or the SKXPro/5 (via the XCover Pro/5 Phone). 1. To power on or off a KDC470, simultaneously press the SCAN and DOWN buttons for 3 seconds. The KDC will beep when turned ON or OFF. -
Page 4: Assembly Manual
Quick Guide for the KDC470 or SKXPro/5. Assembly Manual The SLED-MSRIC can be assembled and attached to KDC470 or SKXPro/5. For more detailed information, please refer to the SLED-MSRIC assembly manual. (The images shown below display the SLED-mPOS companion for demonstration purposes). - Page 5 SLED-MSRIC Quick Guide See Reference Manual for more detailed information. Visit store.koamtac.com to purchase additional KDCs and accessories. QG_SLED-MSRIC_20210728 p4...
-
Page 6: How To Assemble Into Skxpro/5
SLED-MSRIC Quick Guide 2.2 How to Assemble into SKXPro/5 See Reference Manual for more detailed information. Visit store.koamtac.com to purchase additional KDCs and accessories. QG_SLED-MSRIC_20210728 p5... - Page 7 SLED-MSRIC Quick Guide See Reference Manual for more detailed information. Visit store.koamtac.com to purchase additional KDCs and accessories. QG_SLED-MSRIC_20210728 p6...
-
Page 8: Operation
SKXPro/5 and with XCover Pro/5 phone. 3.2 LED Indicator The SLED-MSRIC has one set of LEDs (two LEDs) on the front. If the IC Card is inserted and read successfully, the LED turns green. If the reading is failed, it turns red. -
Page 9: Useful Special Barcodes
SLED-MSRIC Quick Guide Useful Special Barcodes There are several useful special barcodes to configure the SLED-MSRIC. 4.1 MSR (Magnetic Stripe Reader) Enable MSR Power Disable MSR Power Enable Use Track1 Disable Use Track1 Enable Use Track2 Disable Use Track2 Enable Use Track3... -
Page 10: Iccr (Ic Card Reader)
4.2 ICCR (IC Card Reader) Enable ICCR Power Disable ICCR Power IFD Number Config Number 4.3 MSRIC Firmware Upgrade Port (Only for SKX-SLED-MSRIC) Enable SLED USB MODE Disable SLED USB MODE (To upgrade MSRIC firmware) (To access SKX/Phone)) See Reference Manual for more detailed information. -
Page 11: Usage
Usage 5.1 Using other Developed Applications with free SDK – Android/iOS A Software Development Kit (SDK) for Android and iOS is available to all KOAMTAC customers to ensure smooth development of applications that work seamlessly with a KDC scanner. It’s easy to request the SDK from the... -
Page 12: Product Specifications
SLED-MSRIC Quick Guide Product Specifications Design KDC470/SKXPro/SKX5 Sled Companion 2.56" x 4.13" x 0.39" Physical Size 65 mm x 105 mm x 9.8 mm Weight 2.33 oz (66 g) Supporting OS Android / iOS Keys Buzzer LED Indicator 2 LED’s...
