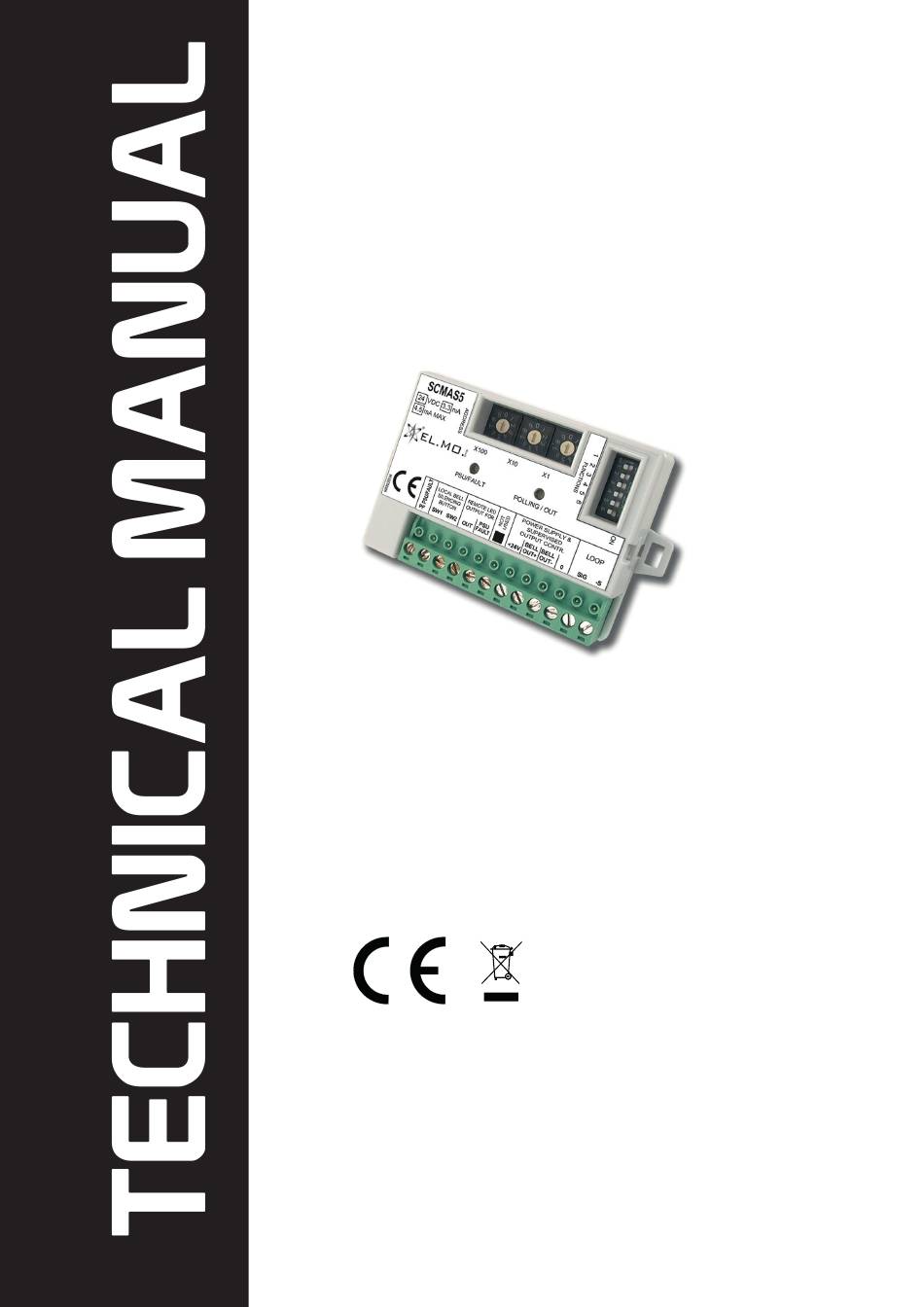

- Page 1 SCMAS5 Optical-acoustic device output control module for AS protocol loop 090070671 www.acornfiresecurity.com...
- Page 2 090070671 - SCMAS5 - TECHNICAL MANUAL FOREWORD FOR THE INSTALLER: Please follow carefully the specifications relative to electric and security systems realization further to the manufacturer’s prescriptions indicated in the manual provided. Provide the user the necessary indication for use and system’s limitations, specifying that there exist precise specifications and different safety performances levels that should be proportioned to the user needs.
- Page 3 Suitable for power group monitoring. Where there is no dedicated serial line for monitoring power supply units directly from a control unit, SCMAS5 can monitor the fault status of the PSU through a LED and by bouncing the alarm to the control unit. If the fault is signalled by lack of power on the fault line, any line interruption is treated as a fault as well.
- Page 4 090070671 - SCMAS5 - TECHNICAL MANUAL WARNING: don’t install any local alarm silencing switch if you need the system to be compliant with the EN54 standards (the button is intended to deactivate the optical-acoustic devices controlled by the output module, till the control unit forwards a new activation command).
- Page 5 090070671 - SCMAS5 - TECHNICAL MANUAL 4.4 Activating the connected devices in case of lack of power supply SCMAS5 can be set to automatically activate its connected self-powered optical-acoustic devices when the power supply line is no longer working. To activate this function: •...
- Page 6 090070671 - SCMAS5 - TECHNICAL MANUAL 5. PROGRAMMING To program the module’s activities see the compatible AS protocol control unit manual. 6. LED MEANING LIGHT MEANING PSU/FAULT and Regular functioning REMOTE LED OUTPUT Red blinking light Power supply unit fault...
