Summary of Contents for RNG Kraus Group MICON 500C

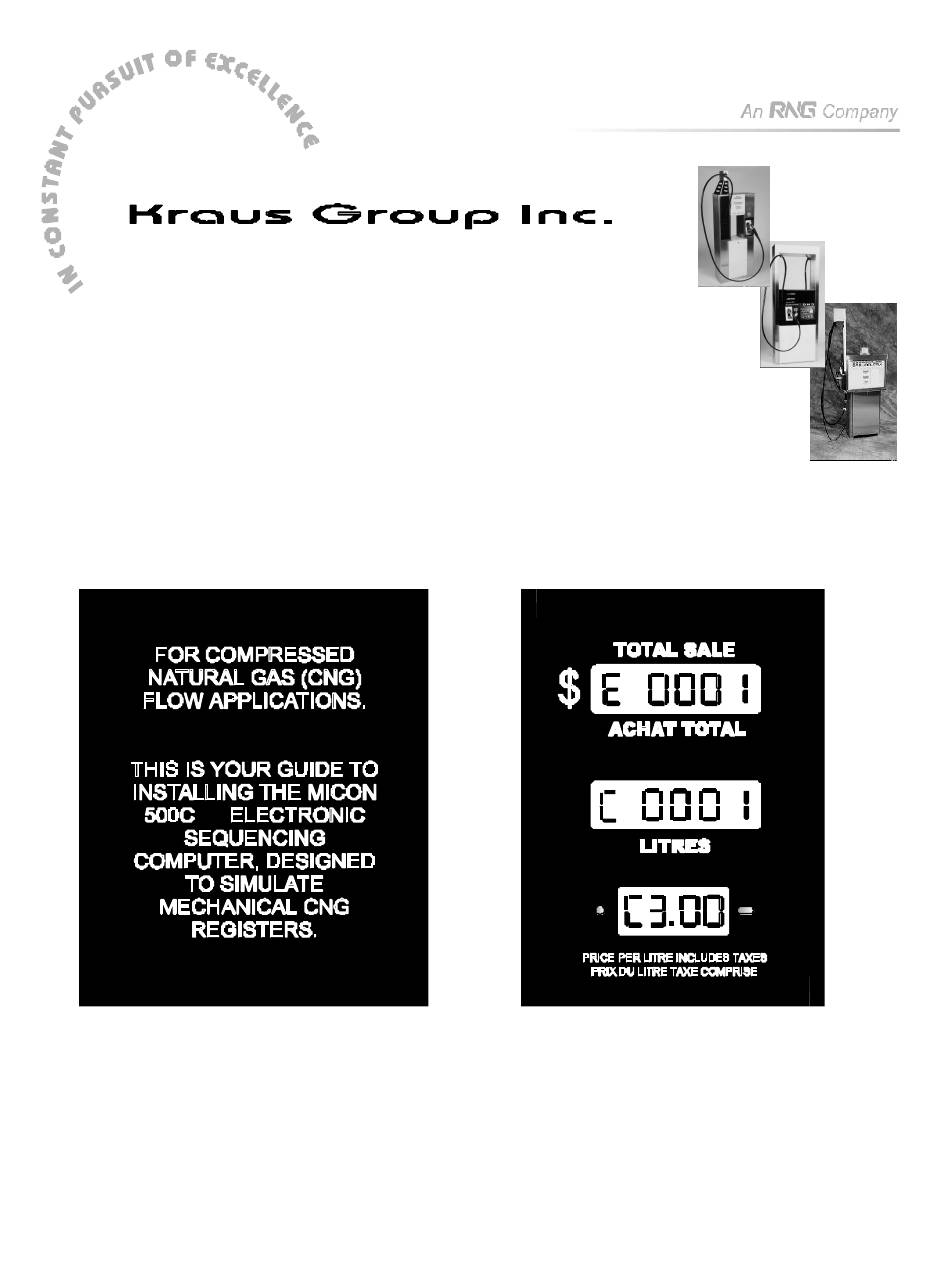

- Page 1 MICON 500C ELECTRONIC SEQUENCING COMPUTER INSTALLATION MANUAL: NORTH AMERICAN AND EUROPEAN © 1999 Kraus Group Inc., Publication Number 234AY00.INS R06 Printed in Canada...
-
Page 3: Table Of Contents
TABLE OF CONTENTS SERVICE AND PRODUCT SUPPORT - CANADA …………………………………………….………………………..1 PRE-INSTALLATION CHECK……………………………………………………………………………………………. 2 PHYSICAL MOUNTING CONSIDERATIONS……………………………………….…………………………………. 5 HANDLE SWITCH C OUPLING……...……………..…………………………………………………………… 6 HANDLE SHAFT ACTUATION……………………..…………………………………………………………… 8 CUSTOMER HARNESS LEAD ELECTRICAL CONNECTIONS……………………………………………….….…10 IMPORTANT WARNINGS……………………….……………….……….……………..…………………….. 10 WIRING DETAIL – NORTH AMERICAN……..………………………………………..……………………… 11 4.2.1 FIGURE 11 - WIRING DIAGRAM –... - Page 4 TABLE OF CONTENTS (CONT’D) MICON 500C SEQUENCING………………….…………………………………..……………………………………..25 DEFINITIONS – INFO-PAC SEQUENCING SETTINGS…………...……………..…………………………26 7.1.1 MIN FLOW (minimum flow)………………..…………………….…………………………………… 26 7.1.2 MAX FLOW (maximum flow)………………..…………………….…………………………………..27 7.1.3 IPTP FLOW 1 (increased pressure trip point – flow 1)……….………………………………….…27 7.1.4 IPTP FLOW 2 (increased pressure trip point – flow 2)……….…………………………………….27 7.1.5 FILL OPTION………………..…………………….………………………………….………………..
- Page 5 TABLE OF CONTENTS: TABLES (CONT’D) WIRE CONNECTIONS – FILL OPTION 1 ……..…………………………………………………………….. 28 WIRE CONNECTIONS – FILL OPTION 2 ……..…………………………………………………………….. 29 PFS 3000 / 3600 SYSTEM HARDWARE INPUTS ……..……………………………………………………33 ABSOLUTE PRESSURE ……..…………………………………………………………………………………34 ALARM SHUTDOWN TRIGGERS AND RESET ACTIONS ……..………………………………………….40 MICON 500C FAULT CODES ……..…………………………………………………………………………...41 SUMMARY OF FAULT CLEARING ACTIONS ……..………………………………………………………...42 FIGURES BATTERY OFF ACTUATOR SHAFT POSITION……………………………………………………………...
-
Page 6: Service And Product Support - Canada
SERVICE AND PRODUCT SUPPORT - CANADA Should you experience any difficulties in system operation, customer assistance is available. The procedure to receive such assistance is as follows: 1. Document the following information: § system dysfunction § corrective measures taken § system model number §... -
Page 7: Pre-Installation Check
PRE-INSTALLATION CHECK The MICON 500C is an electronic pumphead designed for use with compressed natural gas (CNG) dispensers. After carefully unpacking the MICON 500C, inspect for shipping damage. Refer to the options label(s) on the MICON 500C shipping box(es) to ensure the MICON 500C is properly configured for the intended application. - Page 8 PRE-INSTALLATION CHECK (CONT’D) 3. The MICON 500C digital display can be manually triggered to display configuration event counters data in the dollar and volume displays, followed by the software version number in the price display. To do this: Ø Flip the handle switch rapidly ON, then OFF. The display will show the configuration event counters in the dollar and volume displays, and the software version in the price display.
- Page 9 PRE-INSTALLATION CHECK (CONT’D) 4. Figure 3 (preceding page) indicates both counters (dollar and volume) are set to 0001. To check the current configuration of your MICON 500C, use the INFO-PAC receive functions, described in the INFO-PAC m500C Programming Manual, and outlined in steps a) to d) below: The RX MICON (m500) setting on the INFO-PAC is designed to receive MICON 500C settings from units which have already been programmed.
-
Page 10: Physical Mounting Considerations
PRE-INSTALLATION CHECK (CONT’D) d) When INFO-PAC has received a copy of the MICON 500C setup information correctly, INFO-PAC display will show “Received Micon”. To view each setting, scroll with the up or down arrow key. (Default settings are summarized in Table 6 and 7, pages 25, 26.) FIGURE 5 –... -
Page 11: Handle Switch Coupling
HANDLE SWITCH COUPLING 1. The handle switch coupling on the side of the MICON 500C must be connected to the dispenser handle. In most installations, the dispenser handle can be coupled directly to the MICON 500C. The MICON 500C handle switch can be turned to the ON position by rotating the actuator shaft 90 degrees in either a clockwise or counterclockwise direction. - Page 12 HANDLE SWITCH COUPLING (CONT’D) 2. If desired, a normally open handle switch can be connected to the intrinsically safe 2 pin plug. In this case, the actuating shaft need not be connected and should be left in the Handle OFF position. FIGURE 7 Handle OFF INTRINSICALLY...
-
Page 13: Handle Shaft Actuation
HANDLE SHAFT ACTUATION As outlined in explanation accompanying Figure 6, page 6, the MICON 500C handle switch may be switched ON by rotating the actuator shaft 90 degrees in either direction. As shipped from the factory, a clockwise rotation of the coupler assembly (as viewed from the coupler side) is required to switch the pumphead ON. - Page 14 HANDLE SHAFT ACTUATION (CONT’D) FIGURE 10 HANDLE SHAFT ACTUATION FOR CLOCKWISE ROTATION Remove cotter pin from coupler assembly after turning the assembly to the desired OFF position. Rotate actuating shaft until flat side of actuator shaft faces UP when handle OFF, then re-install cotter pin.
-
Page 15: Customer Harness Lead Electrical Connections
CUSTOMER HARNESS LEAD ELECTRICAL CONNECTIONS IMPORTANT WARNINGS !!! IMPORTANT – PLEASE READ !!! All wiring must be installed in accordance with national and local electrical codes. WARNING Substitution of components may impair intrinsic safety. When this unit is used in retail trade in Canada, Measurement Canada, an agency of Industry Canada, must be notified of the installation or servicing of this unit. -
Page 16: Wiring Detail - North American
WIRING DETAIL - NORTH AMERICAN Table 2: MICON 500C Wiring Detail (North American) Reference: Drawing #5789-8, page 12 Wire # 120 VAC Lines - (Wire #3a, #3b, #7, #8 are 14 AWG. All other wires are 18 AWG.) 1 (BLK) 120 VAC head power hot line. - Page 17 4.2.1 FIGURE 11 – WIRING DIAGRAM – NORTH AMERICAN MICON 500C Electronic Sequencing 234AY00.INS R06 Computer Installation Guide...
-
Page 18: Wiring Detail - European
WIRING DETAIL - EUROPEAN Table 3: MICON 500C Wiring Detail (European) Reference: Drawing #5799-4, page 14 Wire # 230 VAC Lines - (metric type 24 conductor shielded cable) YEL/GRN Earth. This line is connected internally to the casting and must be connected to the service ground. 230 VAC head power hot line. - Page 19 4.3.1 FIGURE 12 - WIRING DIAGRAM - EUROPEAN MICON 500C Electronic Sequencing 234AY00.INS R06 Computer Installation Guide...
-
Page 20: Communication Interface Connections
COMMUNICATION INTERFACE CONNECTIONS Tables 4 and 5 below describe communication interface connections for the following interface options: • Tokheim Interface • Gilbarco Interface • Tatsuno Interface • RS-422 Interface • RS-232 Interface • Kraus MNET Interface TABLE 4 – COMMUNICATIONS INTERFACE CONNECTIONS FOR THE MICON 500CN (NORTH AMERICAN) Customer Tokheim Gilbarco... -
Page 21: Post Installation Check
POST INSTALLATION CHECK After completing the installation of the MICON and checking all wiring connections, correct operation should be verified as follows: 1. Enter a price, as described below (also described in section 6.2.2 – Setting Prices, page 19). Go to breaker box and turn OFF AC power to MICON 500C electronic pumphead being serviced. Caution: Ensure breaker box does not feed power to equipment which should remain ON. -
Page 22: Micon 500C Operation
POST INSTALLATION CHECK (CONT’D) 5. For stand alone operation, turn ON the dispenser handle. The authorization in this case is bypassed and the main board receives a direct signal. The display resets and the main flow valve is signaled by the MICON to open and commence fuel flow. 6. -
Page 23: Micon 500C Communicator Operation
MICON 500C COMMUNICATOR OPERATION The hand held communicator (part # MC 200D, available as an option) allows the reading of dollar and volume totals and price setting, as described below. The communicator can also be used as a troubleshooting tool to obtain current readings of product flow rate, temperature and pressure (see section 6.2.3, page 20). -
Page 24: Setting Prices On A Single Tier Dispenser
6.2.2 SETTING PRICES ON A SINGLE TIER DISPENSER (SINGLE TIER: FOR TWO TIER PRICE SETTING, GO TO PAGE 22.) 1. Go to breaker box and turn OFF AC power to MICON 500C electronic pumphead being serviced. Caution: Ensure breaker box does not feed power to equipment which should remain ON. -
Page 25: Reading Current Product Flow Rate, Temperature And Pressure
6.2.3 READING CURRENT PRODUCT FLOW RATE, TEMPERATURE AND PRESSURE To obtain current product flow rate, ambient temperature, gas temperature and/or pressure transducer readings: 1. Take the MICON hand held communicator and go to the front display of the MICON 500C electronic pumphead. -
Page 26: Two Tier Price Operation
4. - (cont’d) - Accessing current flow rate, temperature and pressure readings: 1ST PRESSURE TRANSDUCER (P1) Follow steps 1 –3, previous page. When the bottom MICON display indicates “tG”, press the “SET” key on the communicator again. The bottom MICON display should now indicate “P1” (pressure transducer #1). middle display will indicate transducer pressure in psig. -
Page 27: Setting Prices On A Two Tier Dispenser
6.3.1 TWO TIER OPTION INSTALLATION (CONT’D) To install the two tier option: Ø Connect the push button switch between the blue and orange wires on the provided connector. The push button switch can then be mounted in a 7/8” hole in the side of the dispenser. Ø... -
Page 28: Reading Totalizers On A Two Tier Dispenser
6.3.3 MAKING DISCOUNT PRICE SALES ON A TWO TIER DISPENSER (CONT’D) The INFO-PAC used to monitor and program the MICON 500C pumpheads has a setting intended for use when two tier (regular and discount) pricing is in effect: PRC RESTORE (price restore). When this setting is ON (default setting), the MICON automatically reverts back to tier 1 (regular pricing) after each NOTE... -
Page 29: Electronic Audit Trails
6.3.4 READING TOTALIZERS ON A TWO TIER DISPENSER (CONT’D) Manually adding regular and discount volume or dollar totals will yield grand sales totals. FIGURE 16 display reads display reads READING $782564.93 $704308.44 TOTALIZERS press DISCOUNT REGULAR button on dispenser TOTAL side to switch back DISCOUNT DOLLAR... -
Page 30: Micon 500C Sequencing
MICON 500C SEQUENCING The INFO-PAC settings relevant to switching between low, mid and high banks are shaded in Table 6 and Table 7 (below and next page). They are m500 – MIN. FLOW, MAX FLOW; m500c – FILL OPTION, IPTP FLOW 1, IPTP FLOW 2; defined on pages 26, 27. TABLE 6 –... -
Page 31: Definitions - Info-Pac Sequencing Settings
MICON 500C SEQUENCING (CONT’D) TABLE 7 – M500C INFO-PAC PROGRAMMABLE FEATURES (FOR CNG); SOFTWARE VERSION 3.0 OPTION DESCRIPTION DEFAULT SETTINGS SETUP MODE m500c FILL OPTION select fill sequencing option (3 solenoids or 1 solenoid and a main actuator) MAX LINE select 1, 2 or 3 pressurized lines IPTP FLOW 1 increased pressure trip point at which low bank switches to mid bank... -
Page 32: Max Flow (Maximum Flow)
7.1.2 MAX FLOW (maximum flow) – Table 6, page 25 This flow rate determines an excess flow threshold above which the MICON 500C will cease flow. The value can range from 0 - 180 units/minute. If a flow rate above the set value is calculated, all valves close. -
Page 33: Fill Option 1
7.1.5.1 FILL OPTION 1 Option 1 (default): This option is for setups using 3 solenoids to control flow from low/mid/high banks. The solenoids are connected as follows: EUROPEAN NORTH AMERICAN TABLE 8 WIRE CONNECTIONS FILL OPTION 1 230 VAC LINES 120 VAC LINES METRIC TYPE 18 AWG... -
Page 34: Fill Option 2
7.1.5.1 FILL OPTION 1 (CONT’D) IF PFS FIGURE 17 (PRESSURE HIGH BANK VALVE CLOSES FILL STOP) FILL OPTION 1 WAIT 4 SECONDS. LOW FLOW BANK VALVE DETECTED CLOSES; HIGH BANK VALVE LOW BANK VALVE LOW BANK CLOSES. WAIT OPENS; 4 SECONDS. VALVE OPENS;... - Page 35 7.1.5.2 FILL OPTION 2 (CONT’D) At the start of the sale, the main valve is opened and the motor actuator is advanced to the high bank position. When flow starts and the optional pfs initialization has completed, the flow continues with only the main solenoid valve open.
- Page 36 7.1.5.2 FILL OPTION 2 (CONT’D) SALE MAIN VALVE OPENS; FLOW MOTOR ACTUATOR ADVANCES TO STARTS STARTS HIGH BANK POSITION FIGURE 18 IF PFS FILL OPTION 2 (PRESSURE FILL STOP) WAIT 4 SECONDS. CLOSE SOLENOID VALVE. MOTOR ACTUATOR MOTOR ACTUATOR RETURNS TO HOME POSITION RETURNS TO HOME.
-
Page 37: Pfs 3000 / 3600 Pressure-Temperature Compensation System
PFS 3000 / 3600 PRESSURE-TEMPERATURE COMPENSATION SYSTEM GENERAL DESCRIPTION The PFS 3000 / 3600 system is an electronic ambient temperature compensation system for CNG (compressed natural gas). It corrects final fill pressures for ambient temperature according to a series of algorithms based on the ideal gas law: γ... -
Page 38: Hardware
HARDWARE 8.2.1 HARDWARE INPUTS TABLE 10 – PFS 3000 / 3600 SYSTEM HARDWARE INPUTS INPUT TYPE ELEMENT RESOLUTION PROTECTION DESCRIPTION PTX1 analog 4-20 ma pressure 12 bit A/D intrinsically safe This is main (default) transducer dispenser pressure transducer. PTX2 analog 4-20 ma pressure 12 bit A/D intrinsically safe... -
Page 39: Software
SOFTWARE This system employs algorithms based on ideal gas law equations to predict an end-of-fill final pressure. Variables such as the dynamic gas pressure, ambient temperature and gas temperature are utilized. The system basically functions as follows: When each fill is authorized, the main flow and high bank valves are opened, recording the dispensed amounts. -
Page 40: End-Of-Fill Determinants
END-OF-FILL DETERMINANTS Following is a list of conditions which can terminate a fill (i.e., reset the register): 1. The pressure at the dispenser transducer has reached the predicted final fill pressure, and the fill terminates under normal operating conditions. The fill is terminated once the restart timeout times out. -
Page 41: Excess Flow / Excess Fill
RESTART TIMEOUT AND NOISE BLANKING (CONT’D) The restart timeout and noise blanking work together to stop and restart the fill as many times as necessary to ensure that the end-of-fill is at an accurate pressure before the fill is completely terminated. -
Page 42: Optional Parameters
EXCESS FLOW / EXCESS FILL (CONT’D) Reset Method 2: This option terminates the fill on an excess flow shutdown. The MRST (manual reset switch) input requires resetting before the system returns to "normal" operational state. EXCESS FILL (OR EXCESS RESET): The Excess Fill feature is an additional safety shutdown with limited applications. -
Page 43: Failure Protections
OPTIONAL PARAMETERS (CONT’D) Ø PRESS. SC. (pressure scaling) This option is used to properly scale the pressure transducer 4 mA to 20 mA, depending on the pressure units selected (i.e., psig, barg). It works in conjunction with Pressure Transducer Scaling Units (PTSU) and COMP. SYSTEM pfs. Ø... -
Page 44: System Redundancies
FAILURE PROTECTIONS (CONT’D) 2. Mass Flow Meter Gas Temperature Transducer (optional): Since this is a 4 to 20 mA device, the same hardware input margins apply as for pressure transducers. The mass flow meter output will typically swing to 2 mA or 22 mA on failure. 3. -
Page 45: Micon 500C Fault Codes
8.10 ALARMS (CONT’D) TABLE 12 – ALARM SHUTDOWN TRIGGERS AND RESET ACTIONS FAULT RESULT TO RESET ALARM TRANSDUCER OUT OF RANGE SHUTDOWN Activate MRST input and/or push button on main board. EXCESS FLOW SHUTDOWN INFOPAC preset EXCESS FILL SHUTDOWN Activate MRST input and/or push button on main board. - Page 46 TABLE 13 – MICON 500C FAULT CODES DISPLAY DESCRIPTION OF PROBABLE CAUSE RECOMMENDED ACTION TO CLEAR FAULT CODE FAULT CONDITION PULSER FAULT Missing or disconnected pulser. Check customer harness lead 1. Correct source of error. CO26 electrical connections (see 2. Turn handle switch OFF, section 4.2 –...
- Page 47 MICON FAULT CODES (CONT’D) CODE SUMMARY OF FAULT CLEARING ACTIONS TABLE 14 – SUMMARY OF FAULT CLEARING ACTIONS CO26 – 30 1. Correct source of error. 2. Turn handle switch OFF, then ON with authorization. CO51 Turn handle switch OFF, then ON—OR— activate MRST (manual reset switch) input and/or push button on main board.
- Page 50 25 Paquin Road, Winnipeg, Manitoba, Canada, R2J 3V9 Telephone: 1 204 988 1234 Facsimile: 1 204 654 2881 Printed in Canada...
