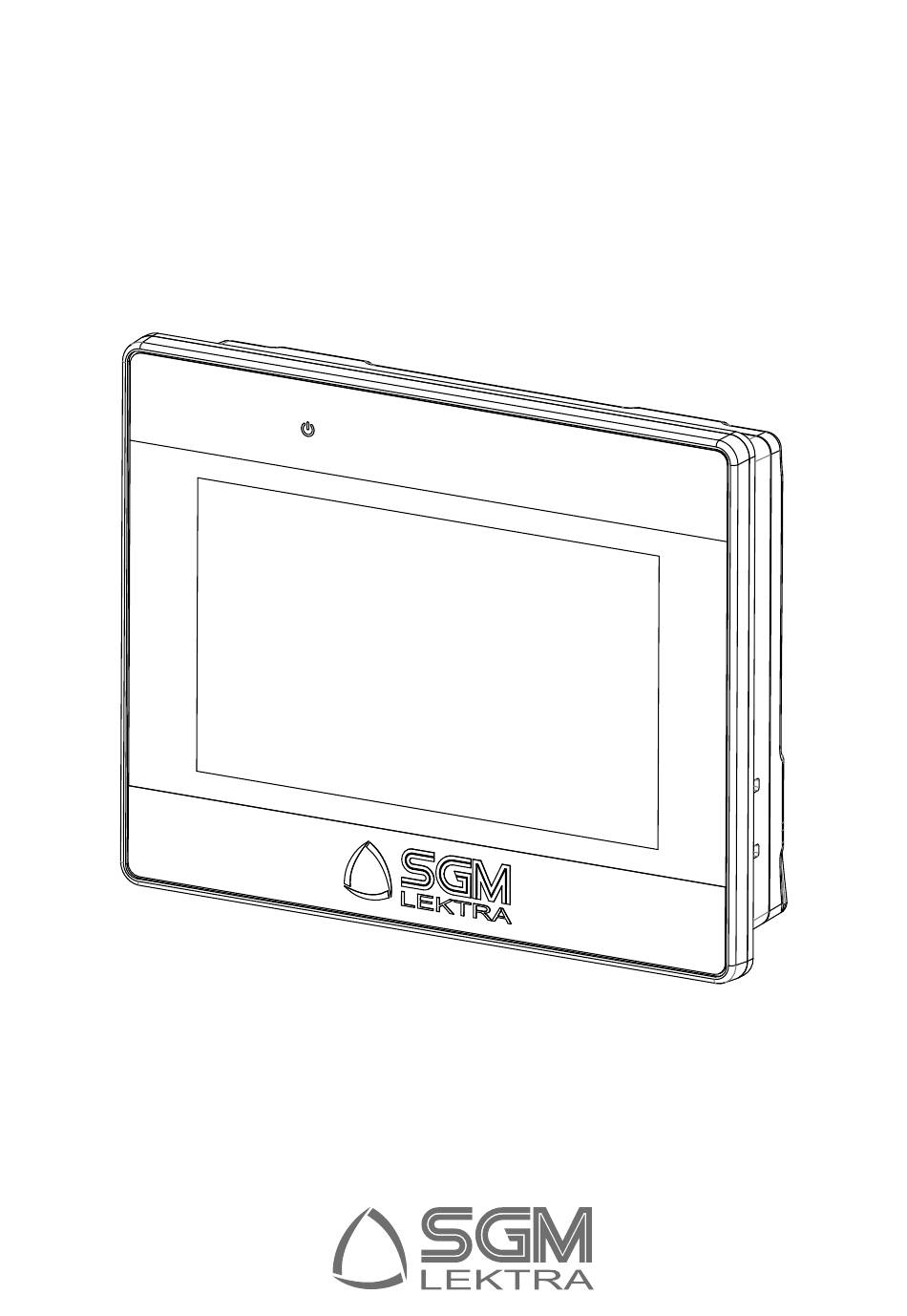

- Page 1 AGRITHERM T5 Display unit for small plants technical documentation GB Rev. of 05/03/2021...
- Page 2 AGRITHERM T5 - index INDEX 1-WARRANTY page 3 2-PRODUCT page 4 3-TECHNICAL FEATURES page 5 4-DIMENSIONS page 6 5-INSTALLATION page 7 6-ELECTRIC CONNECTIONS page 9 7-DISPLAY page 17 8-SETTING page 19 9-SETTING UPDATE page 21 10-FACTORY TEST AND QUALITY CERTIFICATE...
-
Page 3: Warranty
Contract. In no circumstances shall SGM LEKTRA be liable for direct, indirect or consequential or other loss or damage whether caused by negligence on the part of the company or its employees or otherwise howsoever arising out of defective goods. - Page 4 AGRITHERM T5 - product 2-PRODUCT VERSION FRONT PANEL VERSION WALL OR DIN RAIL 1. Ethernet 2. USB Host 3. COM1 RS-232, RS-485 2W/4W COM3 RS-485 2W 4. Removable power connector 5. Skintop M20x1.5 IDENTIFICATION Every instrument is supplied with an adhesive plate with the main data: Model: AGRITHERMT5 Input power: 24 Vdc ±20%...
-
Page 5: Technical Features
AGRITHERM T5 - technical features 3-TECHNICAL FEATURES Display 4.3” TFT color LCD resistive touch screen, 480 x 272 resolution, LED backlight (Life Time >30000h) Digital port USB 2.0 (1x) for set up upload. COM port: COM1 RS485 Isolated Half Duplex for TM probes connection or MUX02... - Page 6 AGRITHERM T5 - dimensions 4-DIMENSIONS 4.1 MECHANICAL DIMENSIONS VERSION “A/D” 118mm 128mm 4.2 MECHANICAL DIMENSIONS VERSION “B/E” 126mm 183.5mm Page 6 of 24 www.sgm-lektra.com...
-
Page 7: Installation
AGRITHERM T5 - installation 5-INSTALLATION 5.1 PANEL MOUNTING VERSION “A/D” Secure the instrument into the arranged hole (119x93mm) using the provided brackets and screws. (Screw torque: 0.3÷0.45 Nm for reaching waterproof effect and preventing the panel from being deformed) Page 7 of 24... - Page 8 AGRITHERM T5 - installation 5.2 WALL OR DIN RAIL MOUNTING VERSION “B/E” • Installation must be only performed by qualified personnel and in accordance with local governing regulations. • Make sure that the housing material is compatible with environmental conditions. In case of outdoor installation it is recommended to protect the unit from the direct sunlight and from the rain.
-
Page 9: Electrical Connection
AGRITHERM T5 - electrical connection 6-ELECTRICAL CONNECTION 6.1 ELECTRICAL CONNECTION VERSION “A/D” ( PANEL MOUNTING ) CONNECTION TO TM PROBES (n.5 max) VIA MODBUS PORT MODBUS connection to TM probes must be made with 2 wires in COM1 [RS485]: • Pin 1 > B •... - Page 10 AGRITHERM T5 - electrical connections 6.3 TERMINAL CONNECTION VERSION “B” 1) Separate the power cables of the Agritherm T5 from the signal cables 2) Remove the plugs of the cable glands and open the lid unscrewing the screws. 3) Insert the cables into the transmitter through the cable glands.
- Page 11 AGRITHERM T5 -electrical connection 6.5 ELECTRIC CONNECTIONS VERSION B ( WALL MOUNTING ) We suggest to connect TM probes (n.25 max) to AgrithermT5 as shown below. In case of number of probes greater than 25, it’s necessary to provide an external 24Vdc power supply.
- Page 12 AGRITHERM T5 - electrical connections It is possible to make an electric star connection with max. 3 TM probes, but the max. cable length between AgrithermT5 and TM must be 25m. TM 3 TM 2 TM 1 Page 12 of 24...
- Page 13 AGRITHERM T5 - electrical connections It’s possible to make a star connection with max 3 MUX02, but the maximum length of the connection cable between AGRITHERT5 and MUX02 must not exceed 25m. MUX02 MUX02 MUX02 Page 13 of 24 www.sgm-lektra.eu...
- Page 14 AGRITHERM T5 - electrical connections ELECTRICAL CONNECTIONS FOR WALL MOUNT ( “E” VERSION ) WITH EXTERNAL OPTIONAL RELAY MODULE We suggest to connect TM probes (n.25 max) to AgrithermT5 as shown below. In case of number of probes greater than 25, it’s necessary to provide an external 24Vdc power supply for probes and relay module.
- Page 15 AGRITHERM T5 - electrical connections The series connection between MUX02 and AGRITHERMT5 is recommended, as shown in the following wiring diagram. - 24Vdc B1-CM5 S/S X0 • • 24VDC IN B1-10MR2-D24 • • • • MUX02 MUX02 MUX02 Page 15 of 24...
- Page 16 AGRITHERM T5 - electrical connections ELECTRICAL CONNECTIONS FOR PANEL MOUNT ( “D” VERSION ) WITH EXTERNAL OPTIONAL RELAY MODULE B1-10MR2-D24 external relay module must be connected to COM3 port with connection interface B1-CM5 as shown below. B1-CM5 S/S X0 •...
- Page 17 AGRITHERM T5 - display 7-DISPLAY 7.1 KEYS LEGEND UP ARROW DOWN ARROW LEFT ARROW SETUP INFO ENTER 7.2 TEMPERATURES DISPLAY The temperatures detected by the probes are automatically and cyclically shown on the display. The system automatically scrolls the pages every 20 seconds.
- Page 18 AGRITHERM T5 - setting 8-SETTING Tap on SETUP button to enter the setting menu. USER USER PASSWORD Password entering: Open the drop-down list ▼ and select USER, then Tap on “password” field for the input keypad. Digit the default password 12345 (which can be modified in the advanced settings) and Tap ENTER.
- Page 19 AGRITHERM T5 - setting 8.1.2 ALARM SILENCE (ONLY FOR VERSION WITH RELAY ALARM MODULE) Press the “ALLARM SILENCE” key to reset the relay alarm condition. 8.2 DATE/CLOCK Tap on “DATE/CLOCK” to modify day, month, year, hour, minutes or seconds. Tap on the date field to display the input keypad and proceed with the modification.
- Page 20 AGRITHERM T5 - setting update 8.5 PASSWORD Tap on “PASSWORD” to modify the default password. CHANGE PASSWORD USER Tap on the empty field to display the input keypad and digit the new password. Tap “ENTER” to confirm, and then “ENTER” again to save it.
- Page 21 9-SETTING UPDATE VIA USB AGRITHERMT5 is supplied with customized setting according to customer’s requirements. In case of implementation/modification of the plant, the new setting (902A005A) will be supplied by SGM LEKTRA on an USB pendrive. In order to upload the new setting file proceed according to the following steps: 1) Insert the pendrive into AGRITHERMT5 USB port (for version “B”...
- Page 22 AGRITHERM T5 - note ................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 23 Page 23 of 24 www.sgm-lektra.eu...
- Page 24 documentation subject to technical changes without prior notice 10-FACTORY TEST AND QUALITY CERTIFICATE With reference to the equipment: (Display unit) I certify that materials, dimensions, and product performance are in compliance with our production and inspection specifications. Quality Control: ..........Date of production and test: ........SGM-LEKTRA S.r.l.
