www.acornfiresecurity.com

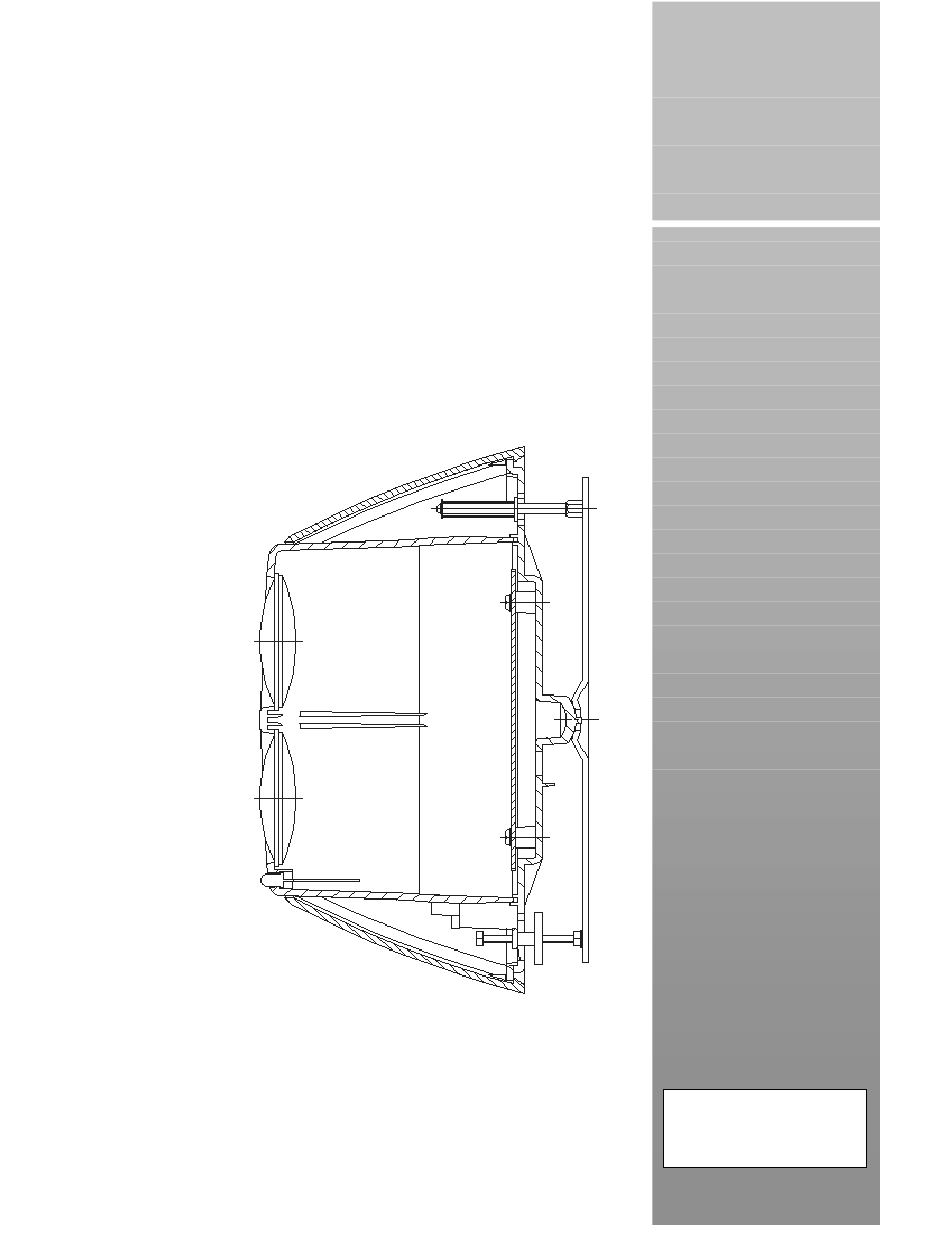

ZITON
ZP7BMR-50/100
www.acornfiresecurity.com
FEATURES
•
Microprocessor
controlled
•
Range 5 – 50 Metres
•
Range 50 – 100 Metres
•
Unique simple alignment
•
Loop powered
•
Selectable alarm
thresholds
•
Low current
consumption
•
Automatic contamination
compensation
Loop Powered
Analogue Addressable
Advertisement
Table of Contents
Related Manuals for Ziton ZP7BMR-50
Summary of Contents for Ziton ZP7BMR-50
- Page 1 ZITON ZP7BMR-50/100 FEATURES • Microprocessor controlled • Range 5 – 50 Metres • Range 50 – 100 Metres • Unique simple alignment • Loop powered • Selectable alarm thresholds • Low current consumption • Automatic contamination compensation Loop Powered Analogue Addressable www.acornfiresecurity.com...
- Page 2 www.acornfiresecurity.com Installation Guide Index Section 1. System Description (page 2) 2. System Operation (page 2) 3. Detector Positioning (page 2 to 4) 4. Installation (page 4 & 5) 5. Prism Targeting (page 5) 6. Alignment (page 5 to 7) 7. System Testing (page 7) 8.
-
Page 3: System Description
Fault as normal. 3. Detector Positioning. It is important that the ZP7BMR-50/100 Detector is positioned correctly to minimise the detection time. Experiments have shown that smoke from a fire does not rise directly upwards, but fans out or mushrooms due to air currents and heat layering effects. - Page 4 www.acornfiresecurity.com 3.1. Detector Positioning In Apex Of Sloping Ceiling. A ceiling is defined as sloping if the distance from the top of the apex to the intersection of the ceiling and adjacent wall is greater than 0.6 metres. See Fig. 1. Υ...
-
Page 5: Installation
www.acornfiresecurity.com 3.2. Detector Positioning In Atrium. If the detector is to be placed in an atrium, or near glass/polished surfaces, the prism(s) should be offset from the central line of sight (approximately 300mm), and angled back to the beam detector. This can be either on the vertical or horizontal axis. -
Page 6: Alignment Mode
Due to the principle of the detector i.e. reflective, the prism(s) must NOT be mounted on glass or a polished reflective surface. Mount the Prism(s) on a solid structure, 90º to the beam path, between 5 to 50 metres (ZP7BMR-50), and 50 to100 metres (ZP7BMR-100) directly opposite the Detector. - Page 7 www.acornfiresecurity.com • FLASHING RED The Detector is receiving too much signal and is attempting to reduce the infrared power output to compensate. Wait at this point until the indicator lamp is OFF, this may take up to 20 seconds depending on the distance between Detector and Prism(s), the shorter the distance the longer the time.
-
Page 8: System Testing
www.acornfiresecurity.com 6.4. Exiting Alignment Mode. Do not remove the detector from the wall during this action. Using the mode switch (See fig. 4) select ‘Operating Mode’ (Switch will be in the down position). On exiting ‘Alignment mode’ the Detector will perform an internal calibration check. If this fails, which would be due to bad alignment or either electrical or optical noise, the power level will try to compensate. -
Page 9: Connection And Configuration Settings
25% sensitivity ‘off’ ‘off’ 12% sensitivity The address settings is set up via the 8 way DIP switch on the lower part of the beam (See Fig 4). 8.3. Typical Loop Wiring. ZP7BMR-50/100 Fire Panel Connections Connections Loop Output Diagnostics Address switches and type setting. - Page 10 www.acornfiresecurity.com 9. Detector Interface Assembly Configuration Settings. DIP SWITCH SETTINGS Fig. 4. www.acornfiresecurity.com...
-
Page 11: Address Settings
www.acornfiresecurity.com 10. Address Settings. Table 1 - Address settings: Address Switch Address Switch Address Switch Configuration Configuration Configuration Not allowed 1000000X 0011010X 1110101X 0100000X 1011010X 0001101X 1100000X 0111010X 1001101X 0010000X 1111010X 0101101X 1010000X 0000110X 1101101X 0110000X 1000110X 0011101X 1110000X 0100110X 1011101X 0001000X 1100110X... -
Page 12: Technical Data
0.5 metre diameter clearance down rest of beam path clearance Reflector(s) Beam 12. Technical Data. • Operating Range ZP7BMR-50 5 to 50 metres • Operating Range ZP7BMR-100 50 to 100 metres • Supply Voltage 10.2Vdc to 30Vdc (Loop powered) •... -
Page 13: Parts List
www.acornfiresecurity.com • Type code 1 Typical Slot 1 Slot 2 Slot 3 Slot 5 Normal Alarm Fault • Type code 0 Typical Slot 1 Slot 2 Slot 3 Slot 5 Normal Alarm Pre-alarm Fault AGC exceeded 12. Service / Application Notes. •...
