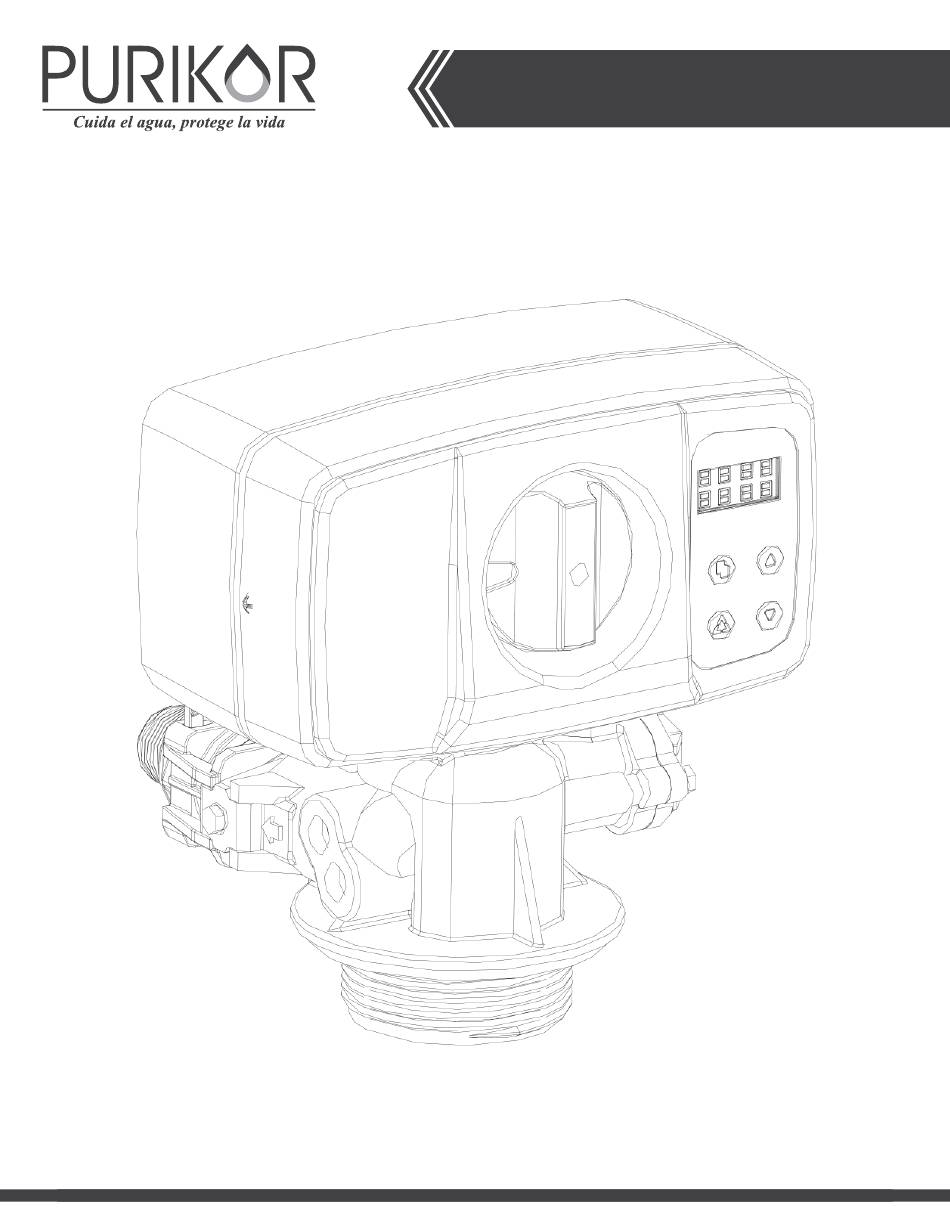

- Page 1 PKVSF26D Series Valve Operation Manual...
-
Page 3: Table Of Contents
Table of Contents Introduction ..................................Main Functions ................................III. Specifications .................................. 2 Programming ..................................2 1. Key Definition ................................ 2 2. Setting Methods ..............................3 3. Inquiry Function ..............................3 4. System Initialization ............................... 3 5. Menu Diagram at Different Regeneration Modes ....................5 6. -
Page 4: Introduction
PKVSF26D Series Valve Operation Manual I. Introduction This valve is controlled with simple, user-friendly electronics displayed on a LCD screen. The main page displays the current time. In addition, the main page also shows key valve information including: regeneration mode, volume remaining (meter mode), regeneration days remaining (timer mode). -
Page 5: Specifications
• Electrical Adapter ......Input: AC110V/AC240V, 50Hz/60Hz; Output: AC12V • Pressure Tank Thread ....2.5”NPSM • Inlet/Outlet Connector ....1”, 3/4”, 1/2” (PPR, PPO, Brass) PKVSF26D Series Dimensional Drawing (unit: inch, mm in brackets) IV. Programming 1. Key Definition: Menu key “... -
Page 6: Setting Methods
PKVSF26D Series Valve Operation Manual 2. Setting Methods: • Press the key “ ” to enter the menu. • Press the key “ ” or “ ” to select a parameter. • Press the key “ ” the parameter starts flashing •... - Page 7 PKVSF26D Series Valve Operation Manual Any key will be overridden at this time. When the valve reaches the service position, it will display: Regeneration Mode: Timer 09:00 AM Current Time D-07 Regeneration Days Remaining Timer Regeneration Mode Regeneration Mode: Meter Immediate...
-
Page 8: Menu Diagram At Different Regeneration Modes
PKVSF26D Series Valve Operation Manual 5. Menu Diagram at Different Regeneration Modes: PRESS MENU KEY REGIONAL REGIONAL METRIC METER METER TIMER INMEDIATE DELAYED REGEN MO-DA-YE MO-DA-YE MO-DA-YE MO-DA-YE 09-16-09 09-16-09 09-16-09 09-16-09 TIME TIME TIME TIME 09:00 AM 09:00 AM... - Page 9 PKVSF26D Series Valve Operation Manual There is no “BRINE DURATION” and “REFILL DURATION” in filter valve. PARAMETER OPTIONS DESCRIPTION METRIC This option controls which unit format should be displayed in REGIONAL the valve display. The unit will initiate a regeneration at the next pre-set...
-
Page 10: Default Settings
PKVSF26D Series Valve Operation Manual This setting allows the current settings to be erased and LOAD DEFAULT changed back to the default settings. 6. Default Settings. Three default settings are available: • Large capacity mode (L-CAPA.) ... fit the larger size tank. -
Page 11: Water Hardness Adjustment (Optional For Softener Valve)
Rotate the Water Hardness Adjustment Nut in a clockwise direction. The bigger rotation angle, the higher water hardness. WATER HARDNESS ADJUSTMENT NUT VII. Optional Parts The following optional parts are used for PKVSF26D. 1. Inlet/Outlet Screw Standards: BSP Screw NPT Screw Straight 90º... -
Page 12: Inlet/Outlet Connections Types
PKVSF26D Series Valve Operation Manual 3. Inlet/Outlet Connections Types: KNOB ADAPTOR COUPLING ADAPTOR COUPLING SECURE SECURE CLIP CLIP SCREW SCREW ADAPTOR ADAPTOR STANDARD CONNECTION ASEEMBLY BYPASS ASSEMBLY 4. Drain line Flow Controls (DLFC) and Injector: Different Size injector is available for different tanks as follows:... -
Page 13: Bypass Assembly
PKVSF26D Series Valve Operation Manual Replacing Injector and DLFC according to the following picture. DLFC DRAIN FITTING SECURE CLIP-S INJECTOR NOZZLE INJECTOR THROAT 5. Bypass Assembly BYPASS KNOB ADAPTOR CLIP BYPASS VALVE BODY BODY SCREW Bypass valve is provided with many functions such as bypass, water hardness adjustment. -
Page 14: Valve Powerhead Assembly
PKVSF26D Series Valve Operation Manual SERVICE POSITION BYPASS POSITION HARDNESS ADJUSTMENT POSITION VIII. Valve Powerhead Assembly PKVSF26D Powerhead Assembly... - Page 15 PKVSF26D Series Valve Operation Manual PKVSF26D Powerhead Assembly Parts List Item Part. No. Part. Description Quantity 05056136 Screw-ST3.5×13(Hexagon with Washer) PKVF26T & PKVS26T Back Cover 05056014 05010045 Piston Stem Holder 13000426 Screw-ST2.9×13(Large Wafer) Washer-3x13 05056139 05056005 Main Gear 05056083 Screw-M4x14 Screw-ST4.2×12(Large Wafer)
- Page 16 PKVSF26D Series Valve Operation Manual Item Part. No. Part. Description Quantity 05056507 PKVSF26D Power Cable 05056013 PKVF26T & PKVS26T Power Strain Relief 05056092 Ball-1/4inch 05056503 Magnet Holder 05010023 Magnet- 3×2.7 05056008 PKVF26T & PKVS26T Knob 05056111 PKVF26T & PKVS26T Knob Label 05056084 Screw-ST3.5x13...
-
Page 17: Valve Body Assembly
PKVSF26D Series Valve Operation Manual IX. Valve Powerhead Assembly FILTER INJECTION OPTION... - Page 18 PKVSF26D Series Valve Operation Manual PKVSF26D Valve Body Assembly Parts List Item Part. No. Part. Description Quantity 05056087 Screw-M5×12(Hexagon) Screw-M5×16(Hexagon with Washer) 05056088 05056047 End Plug Retainer 05010081 PKVF26T & PKVS26T Piston Rod Piston Pin 05056097 05056023 End Plug 05056070...
- Page 19 PKVSF26D Series Valve Operation Manual Item Part. No. Part. Description Quantity 05056100B BLFC Fitting 05056106 Brine Line Screen 05056107 BLFC Tube Insert 05056033 BLFC Ferrule 05056108 BLFC Fitting Nut 05056086 Screw-M5×30(Hexagon with Washer) 05056029 Injector Cover 05056072 O-Ring- 24×2 05056103...
-
Page 20: Bypass Assembly
PKVSF26D Series Valve Operation Manual X. Bypass Assembly... - Page 21 PKVSF26D Series Valve Operation Manual PKVSF26D Valve Body Assembly Parts List 05056147 Bypass Knob O-Ring- 28×2.65 26010028 05056148 Bypass Plug 05056149 Bypass Seal Secure Clip 21709003 21319006 Screw Adaptor 05056065 O-Ring- 23.6×2.65 Secure Clip-S 05056172 05056134 O-Ring- 12×2 05056146 Bulkhead...
-
Page 22: General Valve Installation
PKVSF26D Series Valve Operation Manual XI. General Valve Installation Minimum 25 PSI Water Pressure Electrical Supply Uninterrupted AC Existing Plumbing Free of any deposits or built-ups inside pipes Locate close to drain and connect according to Softener Location plumbing codes... -
Page 23: Trouble Shooting
PKVSF26D Series Valve Operation Manual XII. Trouble Shooting Issue Possible Cause Possible Solution 1. No power supply. Check electrical service, fuse, etc. A. Unit fails to initiate a regeneration cycle. 2. Power failure Reset time of day. 1. By-pass valve open. -
Page 24: Warranty
Tampoco la empresa se hace responsable por los daños consecuenciales generados a raíz del desuso del a) Los equipos de filtración marca PURIKOR, tienen una garantía de 2 años contra equipo. defectos de fabricación en materiales y mano de obra, a partir de la fecha de entrega a su usuario final. - Page 25 Diagrama de Instalación Observaciones...
