Summary of Contents for DP THE BIG LEBOWSKI
- Page 2 The Big Lebowski™ Pinball Quick Setup Guide...
- Page 3 Quick Setup Guide v0.4 Release: August 2019...
- Page 4 Dutch Pinball will cannot be held responsible for any harm or damage. Play or look at this game at your own risk. You may enter a world of pain. The Big Lebowski™ Pinball Quick Setup Guide...

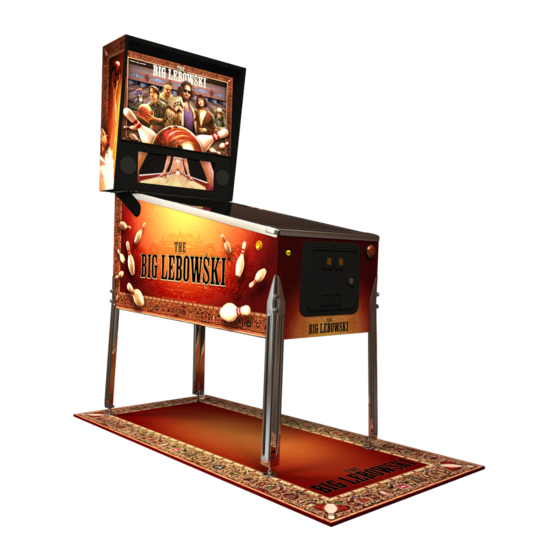

- Page 5 Congratulations with your The Big Lebowski™ Pinball machine! Launch the ball and enter the world of The Dude! • More than 200 quotes and clips from the movie • Brunswick™ Bowling Alley with 10 controlled pins • 3 Flippers and multi-level playfield We hope you will enjoy this game.
- Page 6 • 2 keys for coin door • 1 Plumb Bob (for the tilt mechanism) The envelope on the playfield contains: Envelope contents • Letter with information about software updates and support. • 2 Score cards The Big Lebowski™ Pinball Quick Setup Guide...
- Page 8 Open the top of the box by carefully removing Step 2 the tape and/or staples and fold the flaps to open the box. Remove accessory box Remove accessory box. Step 3 ATTENTION: DO NOT CUT THE NYLON STRAPS YET!! The Big Lebowski™ Pinball Quick Setup Guide...
- Page 9 Use a utility knife to cut along the dashed lines Step 4 on the “TRUCK THIS SIDE ONLY” side of the box. Let this flap fall on the floor. You can also choose to Step 5 completely remove this flap by cutting it off, but it’s not necessary.
- Page 10 3/8” (or 10 mm) wrench. Front legs Rear legs Mounted on the leg Mount the two front legs with two Step 9 bolts for each leg. 10 The Big Lebowski™ Pinball Quick Setup Guide...
- Page 11 Carefully tip the game Step 10 on its front legs and remove the carton bottom fixation. Lift the rear of the cabinet with at least two persons and hold it in place. Step 11 Mount the rear legs with the remaining four bolts. Carefully lower the game on its legs.
- Page 12 Lock the backbox in place with the backbox latch. Step 14 Remove screen protection Remove screen protection (including the blue tape). Step 15 12 The Big Lebowski™ Pinball Quick Setup Guide...
- Page 13 Open the backbox & install butterfly bolts Use the keys to open the backbox lock. Step 16 Open backbox lock Carefully lift the Backbox LED Panel, and take it out of the H-channel. ATTENTION: The Backbox Step 17 LED Panel has a wire attached to it to power the LED’s. Disconnect the connectors to remove the Backbox LED Panel, or carefully place the Backbox LED Panel on top of the cabinet (see picture).
- Page 14 Tighten the two butterfly bolts in the bottom of the backbox to secure it. Step 19 Put the Speakerpanel and Backbox LED Panel back in the backbox and close the backbox lock (don’t Step 20 forget to re-connect the cable). 14 The Big Lebowski™ Pinball Quick Setup Guide...
- Page 15 Remove playfield glass Use the coin door keys Step 21 to open the coin door. Pull the yellow lever to Step 22 the left (1) and lift the lockdown bar (2). Close and lock the coin door to prevent scratches Step 23 on the playfield glass.
- Page 16 ‘Dude’s Car Door’ on the Mini Playfield. Als use a wire cutter, or scissors to remove the tie-wrap from the “Rug Toy”. Remove blue tape Remove tie-warp 16 The Big Lebowski™ Pinball Quick Setup Guide...
- Page 17 Pull the playfield up with the bottom arch. Step 26 playfield support brackets Next, pull the playfield a bit towards you as soon as the playfield support brackets are high enough to do so and rest the playfield onto the front of the cabinet on the playfield support brackets.
- Page 18 The ball will roll down the playfield into the Bowling Alley mechanism. The tilt mechanism Install the plumb bob in the Step 29 tilt mechanism: The higher the plumb bob is mounted, the more sensitive it is. 18 The Big Lebowski™ Pinball Quick Setup Guide...
- Page 19 Carefully lower the playfield again and Step 30 slide it back in the cabinet. Make sure the playfield holders drop into the lever guide (see picture). Drop 5 balls carefully on the playfield Step 31 to drain them into the balltrough. ATTENTION: before lifting the playfield remove all balls, or slide the blocker up on the balltrough and hold it until...
- Page 20 43. Left Jet Leaf 44. Right Jet Leaf 45. Left Loop Rollover 46. Left Ramp Lock Opto 47. Mini PF Scoop Opto 48. Loop Top Opto 49. Center Ramp Opto 50. Vertical Upkicker Leaf 20 The Big Lebowski™ Pinball Manual...
- Page 21 Switch Overview Mini Playfield 51. Mini PF Ramp Enter Microswitch 52. Left Parking Target 53. Right Parking Target 54. Car Close Microswitch 55. Right Ramp Made Rollover 56. Mini PF RampMade Rollover Switch Overview Bowling Alley 57. Bowling EOS R Microswitch 58.
- Page 22 www.dutchpinball.com...
