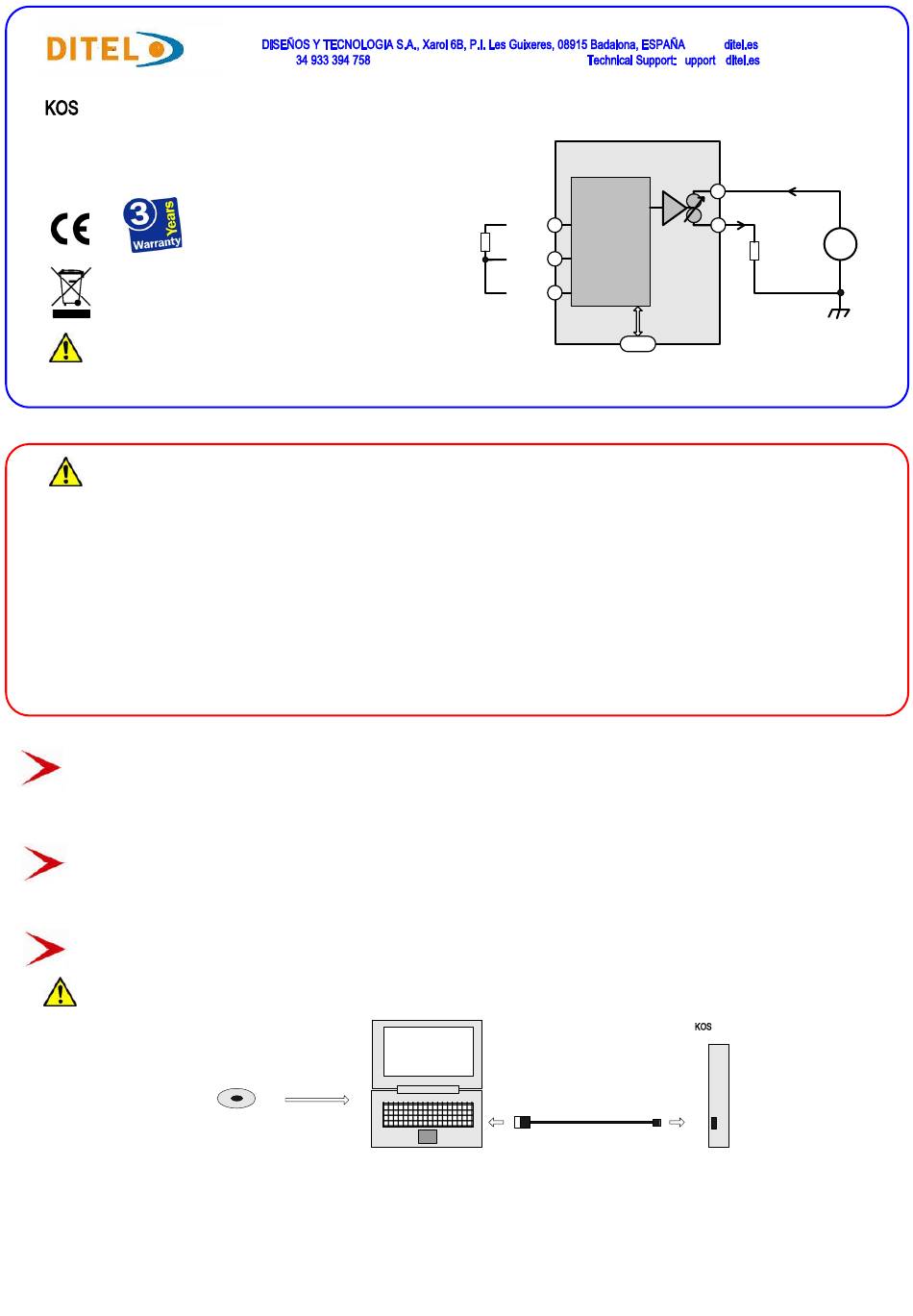

Ditel KOS1605P User Manual

1605P USER GUIDE
SMART DIN RAIL MOUNTED TRANSMITTER INPUT PT100
TWO WIRE (4 to 20) mA
According to 2012/19/EU Directive, You cannot dispose of it at the end
of its lifetime as unsorted municipal waste.
You can give it back, without any cost, to the place where it was
adquired to proceed to its controlled treatment and recycling.
Important - Please read this document before any installing.
Every effort has been taken to ensure the accuracy of this document, however we do not accept responsibility for damage, injury, loss or expense resulting from errors and omissions, and we reserve the right of amendment without notice.
IMPORTANT - CE & SAFETY REQUIREMENTS
Product must be mounted inside a suitable enclosure providing environmental protection to IP65 or greater.
To maintain CE EMC requirements, input wires must be less than 30 metres.
The product contains no serviceable parts, or internal adjustments. No attempt must be made to repair this product. Faulty units must be returned to supplier for repair.
This product must be installed by a qualified person. All electrical wiring must be carried out in accordance with the appropriate regulations for the place of installation.
Before attempting any electrical connection work, please ensure all supplies are switched off.
ABSOLUTE MAXIMUM CONDITIONS ( To exceed may cause damage to the unit) :-
Supply Voltage
Current with over voltage
Input Voltage
Ambient

PRODUCT SPECIFICATION

Please refer to the product data sheet for full specification, available to download at www.ditel.es

RECEIVE AND UNPACKING

Please inspect the packaging and instrument thoroughly for any signs of transit damage. If the instrument has been damaged, please notify your supplier immediately.

CONFIGURATION

IMPORTANT - The KOS1605P can be configured whilst connected and powered, but a portable battery powered computer must be used to avoid the
effects of ground loops.
USB SPEEDLINK SOFTWARE
The following parameter can be configured by simply entering as prompted by the
software package.
RTD INPUT TYPE ( Pt100,Ni100, Ni120, CU53, CU100 )
· Low range
· High range
· Units (°C, °F)
· Burnout (direction of output current on sensor burnout)
MT-KOS1605P_EN_20190606 User Guide
Tel : +
± 30 V dc (Protected for over voltage and reverse connection)
± 100 mA
± 3 V between any terminals
Temperature (-30 to 70) °C Humidity (10 to 95) % RH (Non condensing)
Download @
www.status.co.uk
KOS1605P
RTD Inp ut
COMPUTER
USB CABLE
www.
s @
+
-
Loop
Load
2 Wire (4 to 20) mA Output
USB
1605 P
Factory default:
RTD
IEC
Low Range
High Range
Units
Burnout
+
Vs
-
= Pt100
= 003851
= 0
= 100
= °C
= UPSCALE
