Excel SASMX-100001-W8 Instruction Manual

INSTRUCTION MANUAL

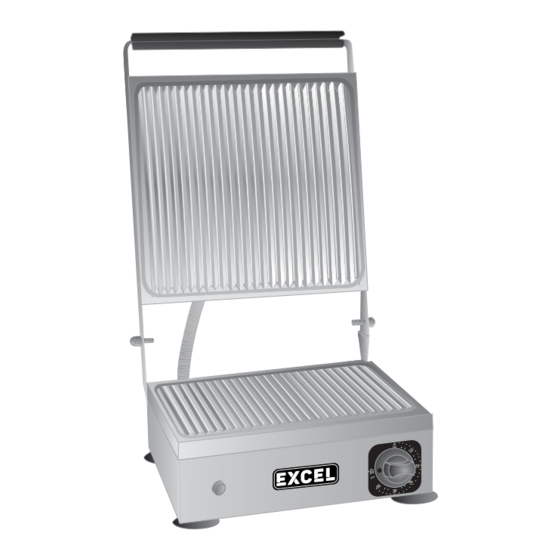

SANDWICH GRILL - MODEL: SASMX-100001-W8

ATTENTION:

-PLEASE read these instructions carefully before operating this appliance.
-The temperature is thermostatically controlled between the range of 80ºC to 200ºC (176º F
to 392ºF). A signal lamp adjacent to the thermostat indicates when the heating elements
are energized.

IMPORTANT:

-These units are designed to operate on alternating current (A.C.) only.
-DO NOT CONNECT TO DIRECT CURRENT (D.C.).
-Care should be taken when operating this appliance as HOT SURFACES may cause
burns.
-Ensure that the power supply cord does not come into contact with hot surfaces.
-Do not leave unit in operation without an attendant.
-When not in use for long period unplug the appliance.

INSTALLATION AND OPERATION:

-Check if voltage of your power system corresponds to the same specified on the machine
label.
-Before using the appliance for the first time, turn the control knob to 200ºC (392ºF), close
the lid and allow the appliance to heat for + / - 30 minutes. You will notice smoke appearing
due to the internal insulation burning, which is normal.
-After 30 minutes heating, turn temperature control down to operating desired temperature,
keep knob in this position until pilot light turns off, at this point the unit will be ready to be
used.
-To turn off the unit turn knob completely towards left.

CLEANING PROCEDURE

Always ensure that the appliance is disconnected from the main power supply before
cleaning.
-After appliance has cooled clean cooking surface and body using only a damp cloth. Never
use water jet or immerse appliance in water.
-Wipe off appliance with a dry cloth and wait at least half an hour before re-connecting to
main power out let.
Texas Restaurant Equipment
12922 Hempstead Hwy
Houston, TX 77040
P: (713) 690-1231
50
122
SASMX-100001-W8
