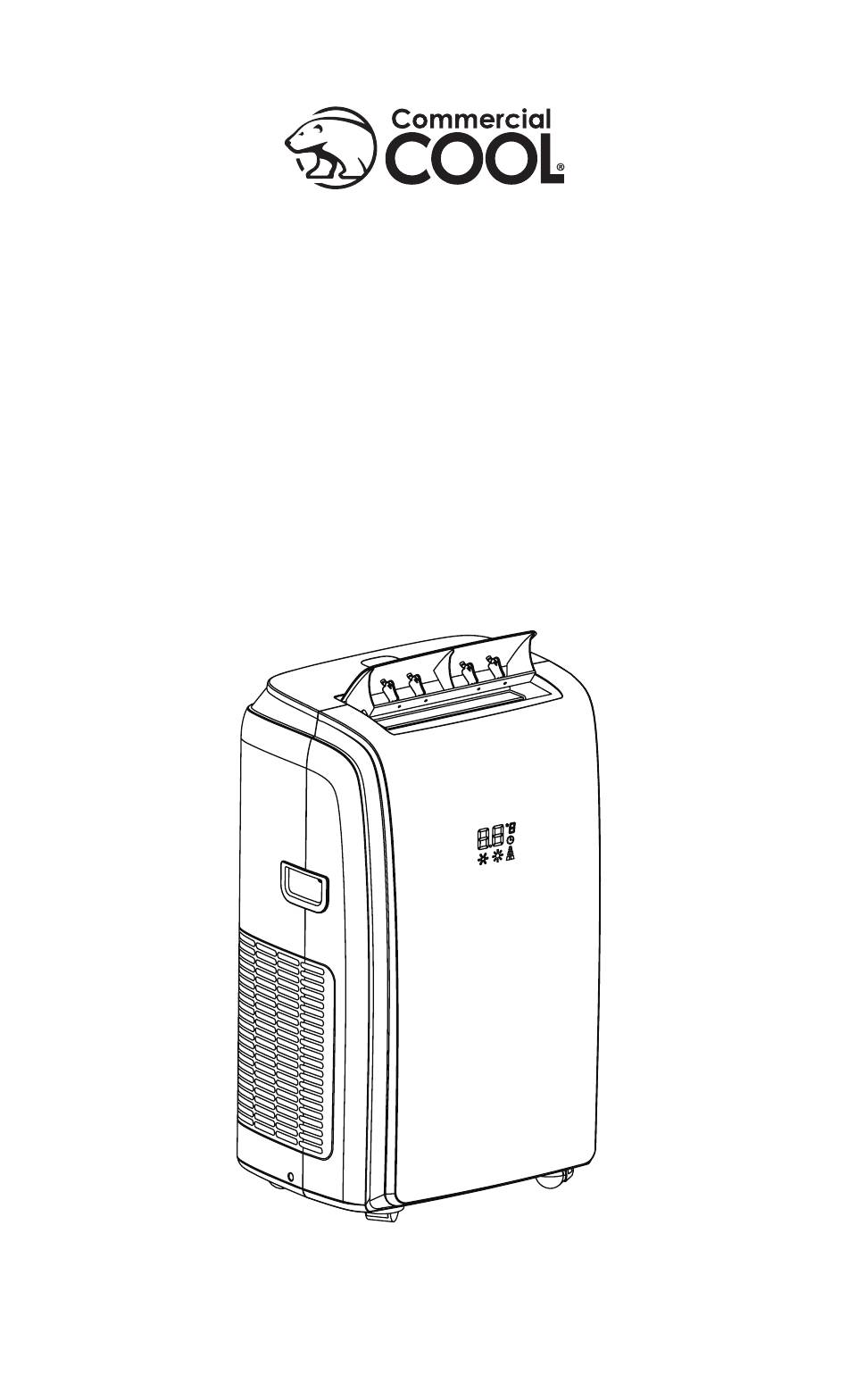

- Page 1 PORTABLE AIR CONDITIONER User Manual MODEL CPT05WBA, CPT06WB, CPT07WB...
-
Page 3: Table Of Contents
CONTENTS SAFETY INFORMATION Important Safety Instructions ............................4-6 Grounding Instructions ..............................7-8 Safety Guidelines ..............................9 Power Cord Operation ............................10 SET UP & USE Parts & Features ..................................11 Specifications ................................12 Installation Guide ..............................12 Window Slider Kit Installation ...........................13 Exhaust Hose Installation ............................14 Control Panel ................................15 Operating from the Control Panel ...................... -
Page 4: Safety Information
SAFETY INFORMATION DANGER WARNING CAUTION DANGER - Immediate hazards WARNING - Hazards or unsafe CAUTION - Hazards or unsafe which WILL result in severe practices which COULD result in practices which COULD result in personal injury or death severe personal injury or death minor personal injury IMPORTANT SAFETY INSTRUCTIONS WARNING... - Page 5 SAFETY INFORMATION HANDLING ALKALINE BATTERIES WARNING When handling alkaline batteries, basic safety precautions should be followed, including the following Should fluid from the battery accidentally get into your eyes, there is a threat of loss of eyesight, do not rub them. Immediately rinse your eyes with clean tap water and then consult a physician immediately.
- Page 6 SAFETY INFORMATION HANDLING ALKALINE BATTERIES WARNING When handling alkaline batteries, basic safety precautions should be followed, including the following 10. Do not drop, throw or expose the battery to extreme impact. Doing so may cause the battery to leak fluid, overheat or explode. 11.
-
Page 7: Grounding Instructions
SAFETY INFORMATION GROUNDING INSTRUCTIONS ELECTRICAL REQUIREMENTS In the event of malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. The appliance must be connected to a cord having an equipment- grounding conductor and a grounding plug. - Page 8 SAFETY INFORMATION LCDI POWER CORD AND PLUG This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord that is required by UL. This power supply cord contains state-of-the-art electronics that sense leakage current. If the cord is damaged and leakage occurs, power will be disconnected from the unit.
-
Page 9: Safety Guidelines
SAFETY INFORMATION SAFETY GUIDELINES To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. ALWAYS DO THIS NEVER DO THIS ENERGY SAVE •... -
Page 10: Power Cord Operation
SAFETY INFORMATION OPERATING CONDITION The air conditioner must be operated within the temperature range indicated below: NOTE: · Unit performance may be affected when in use outside of these operating temperatures. MODE ROOM TEMPERATURE COOL 64˚F (18˚C) ~ 95˚F (35˚C) DEHUMIDIFY 64˚F (18˚C) ~ 95˚F (35˚C) Page 10... -
Page 11: Set Up & Use
SET UP & USE PARTS & FEATURES Control Panel and Remote Control Sensor Air Outlet Grill Filter Display Screen Handle Dehumidification Drain Air Exhaust Hose Housing Intake Grill Plug Plug Cord Storage System Condesation Castors(4) Drain Air Exhaust Hose Hose Outlet Hose Inlet Locking Screw Window Bracket... -
Page 12: Specifications
SET UP & USE SPECIFICATIONS CPT05WBA Unit dimensions (W x D x H): 16.54” x 12.2” x 27.56” Unit weight approx.: 52.9 lbs. CPT06WB Unit dimensions (W x D x H): 16.54” x 12.2” x 27.56” Unit weight approx.: 53.9 lbs. -
Page 13: Window Slider Kit Installation
SET UP & USE WINDOW SLIDER KIT INSTALLATION Your window slider kit has been designed to fit most standard “Vertical” and “Horizontal” window applications; however, it may be necessary for you to improvise/modify some aspect of the installation procedures for certain types of window. -
Page 14: Exhaust Hose Installation
SET UP & USE EXHAUST HOSE INSTALLATION The air exhaust hose and hose inlet must be installed or removed from the portable air conditioner in accordance with the way it is being used: COOL, AUTO: Air exhaust hose and hose inlet should be connected to the portable air conditioner. -
Page 15: Control Panel
SET UP & USE CONTROL PANEL Power Mode Button Down Button Up Button (Decrease) (Increase) Pictures are for illustration purpose only. Your model may or may not have all the features. The control panel is located on top of the unit. Some functions should be accessed using the remote control. - Page 16 SET UP & USE DRAINING IN LED DISPLAY DEHUMIDIFICATION MODE • Displays the programmed settings. • It is recommended that the dehumidification drain and drain hose can be used for continuous drainage. • When the appliance is on standby • WATER FULL - When the water level press and hold the Mode button reaches a predetermined level, for 20 seconds to change the unit...
-
Page 17: Operating From The Remote Control
SET UP & USE OPERATING FROM THE REMOTE CONTROL BATTERY INSTALLATION (BATTERIES NOT INCLUDED) (1) Slide open the battery compartment cover. (2) Insert 2 × “AAA”batteries as shown. (3) Slide back the battery cover. CAUTION: Use only AAA or IEC R03 1.5V alkaline batteries. Remove the batteries if the remote is not used for a month or longer. - Page 18 SET UP & USE REMOTE CONTROL Dehumidify ˚C / ˚F Cool Remote Signal Auto Fan Speed Child Lock Timer Follow Me Turbo Sleep Function Power Button Button Fan Speed Increase Mode Button Timer Button Decrease ˚C / ˚F Sleep Button Selector Fan Speed Button...
- Page 19 SET UP & USE LED Display Indicators Cooling mode Fan speed Dehumidify mode Auto speed Fan mode Child lock Timer on Timer off Signal Sleep Display tempera- Turbo ture or hours Fahrenheit or Follow me Celsius. POWER BUTTON • Press to Turn Air Conditioner ON or OFF. •...
- Page 20 SET UP & USE DEHUMIDIFY Ideal for reducing humidity. • Keep window and door closed for the best dehumidifying effect. • Exhaust hose attachment is not required in this mode. Draining in Dehumidify mode • It is recommended that the dehumidification drain and drain hose be used for continuous drainage.
- Page 21 SET UP & USE OR ANOTHER METHOD TO OPERATE TURBO • Press the Function button, TURBO symbol flashes on screen then press the function button again, the TURBO symbol will stop flashing and will illuminate on the LED screen indicating that TURBO is activated. TO CANCEL TURBO •...
- Page 22 SET UP & USE TIMER BUTTON • The timer can be used to delay the appliance start-up or shutdown. PROGRAMMING START-UP • With the appliance ON select the settings that you would like to program at start-up. Example: COOL Mode, temperature, fan speed. Turn OFF the air conditioner.
- Page 23 SET UP & USE WHEN OPERATING IN COOL MODE • Press the button, and the symbol appears. • Selected temperature will increase by 1°F (1°C) per hour in a 2 hour period. This new temperature will be maintained for the next 6 hours, then the air conditioner will turn off.
-
Page 24: Water Drainage
SET UP & USE WATER DRAINAGE Draining in Cooling Mode. This air conditioner is equipped with auto water evaporation so the water compartment would not typically fill in cooling mode unless there is high humidity. Water drainage will generally only be required at the end of the season (see START-END OF SEASON OPERATIONS in cooling mode.) NOTE: As a safety measure to positively prevent water spillage the air conditioner is equipped with a fail safe device if the water tank fills. - Page 25 SET UP & USE Continuous Draining for Dehumidification Mode. Unplug the unit from the power source. Remove the drain cap located in the back center of the unit. While doing this operation some residual water may spill so have a drip pan (not supplied) to collect the water.
-
Page 26: Cleaning & Care
CLEANING & CARE CLEANING WARNING: Before cleaning or maintenance, turn the appliance off by pressing the button on the control panel or button on the remote control. Unplug from the electrical outlet. CLEANING THE CABINET You should clean the appliance with a slightly damp cloth then dry with a dry cloth. -
Page 27: Troubleshooting & Warranty
TROUBLESHOOTING & WARRANTY BEFORE YOU CALL FOR SERVICE IF THE AIR CONDITIONER FAILS TO OPERATE: A) Check to make sure that the air conditioner is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely. -
Page 28: Customer Service
TROUBLESHOOTING & WARRANTY Troubleshoot your problem by using the chart below. If the air conditioner still does not work properly, contact BLACK+DECKER customer service center or the nearest authorized service center. Customers must never troubleshoot internal components. TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY Unit does not start when A. -
Page 29: Limited Warranty
TROUBLESHOOTING & WARRANTY LIMITED WARRANTY Any repair, replacement, or warranty service, REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF and all questions about this product should be THE CUSTOMER; W Appliance Co. SHALL NOT BE directed to W Appliance Co. - Page 30 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
- Page 31 Page 31...
- Page 32 © 2021 Commercial Cool is a W Appliance Company. All Rights Reserved. February 2021...
