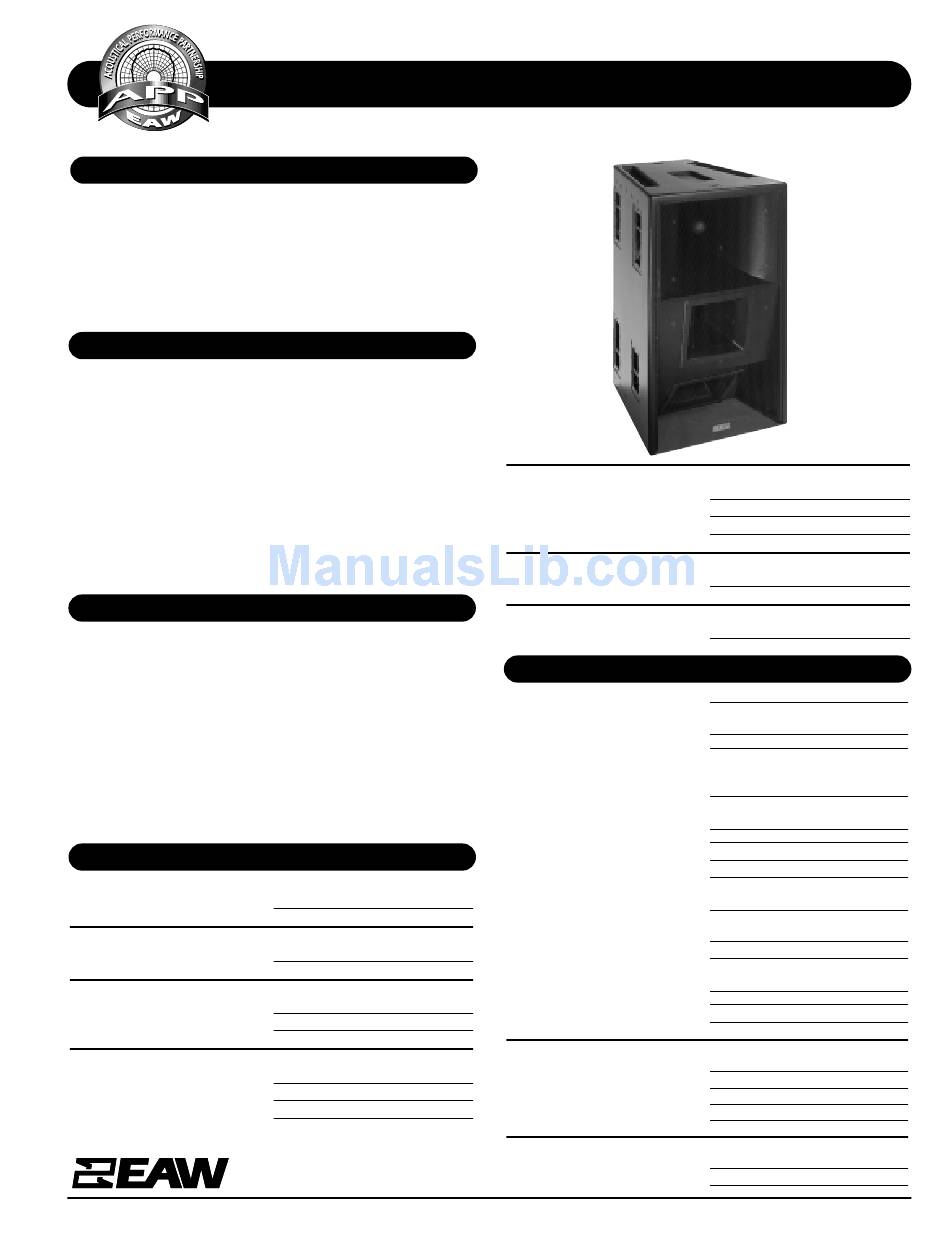

EAW KF855 Specifications

FEATURES
• VA™ MF/HF downfill system
• 10-in MF on asymmetrical horn
• 2x 2-in exit HF on separate horns with separate
coverage areas
• Frequency shading integrates HF horns when
powered together
• Power HF horns separately for maximum control
• For portable use only
DESCRIPTION
A complex 2-way mid/high system in a multi-baffle trape-
zoidal enclosure designed for down fill from a flown EAW
Stadium Array. Includes a horn-loaded 10-in cone (down
angled 10 degrees) and 2x 2-in exit compression drivers on
separate constant directivity horns. The two HF horns (angled
down 10 and 45 degrees) may be powered separately or in
parallel with complex internal passive filter providing fre-
quency shading to integrate the two horns. Powering mode is
switchable: biamplified (HF horns in parallel with internal fil-
ter and powered by a single amp channel) or biamplified (HF
horns powered separately). When in parallel mode, a switch
allows attenuation of the lower (45°) HF horn according to
trim height.
APPLICATION
The KF855 is engineered to serve as the downfill loudspeaker
in an EAW concert touring Stadium Array, providing coverage
to the most expensive front row seats. The two HF horns may
be powered separately or in parallel. The system may be
inverted to reach balconies in converted 'movie palaces' or
similar venues. Six year warranty.
Applications include:
Concert Tours Corporate Events
Large Theaters Stadiums
Cathedrals Live Music Clubs
PERFORMANCE
Frequency Response (1 Watt @ 1m)
±3 db
-10 dB
Axial Sensitivity (dB SPL, 1 Watt @ 1m)
Impedance (Ohms)
Power Handling, AES Standard (Watts)
One Main Street, Whitinsville, MA 01588
EAW products are continually improved. All specifications are therefore subject to change without notice.
200 Hz to 17 kHz
170 Hz
MF 109
HF 112
MF 8
HF 7 (Horns in parallel)
2x 12 (horns seperate)
MF 400
HF 2x 200 (horns seperate)
1x 400 (horns parallel)
508 234 6158
SPECIFICATIONS KF855
Calculated Maximum Output (dB SPL @ 1m)
Nominal Coverage Angle, -6 dB points (degrees)
Recommended High-Pass Frequency
PHYSICAL
MF Subsystem
HF Subsystem
Controls (switches, knobs)
Cabinet Type (shape)
Enclosure Materials
Suspension Hardware
Dimensions
Trapezoid Angle
Weights
Shipping Weight
Toll Free 800 992 5013 FAX 508 234 8251
KF855/888052(B)/2 pp
MF Peak 141.0
HF Peak 141.0
MF Long Term 135.0
HF Long Term 135.0
Horizontal 55
Vertical 70 (+10,-60 from horizontal axis)
24 dB/Octave 250Hz (for use with KF850EF)
1x 10-in horn loaded cone
2x 2-in exit compression driver
on horn
Configuration 2-way, mid/high, downfill
Powering Switchable: Bi-amp (HF horns
parallel) or bi-amplified (HF
horns powered separately)
Downfill powering mode and
attenuation switching
Trapezoidal with angled baffles
Baltic birch plywood
Finish Black catalyzed polyurethane
Connectors Parallel Horns: 1 each male and
female AP6
Independent Horns: 2 each male
and female AP6
2X 19-position flytrack (top)
Grille Vinal coated perforated steel,
foam backed
Options 179001 flyclip with ring
179002 flyclip with hook
255010 caster pallet CP850
inches
Height 42
Width (front) 26.38
Width (rear) 16.5
Depth 29.5
9.5°
pounds
Net Weight 240
252
info@eaw.com
5/1/00
millimeters
1067
670
419
749
kilograms
109.2
114.7
