- Page 1 ZigBee - Combined Interface User Manual Combined Interface Model: ZL01E 20131216 FW V4.0 (20131216) HW V1.3...
-
Page 2: Table Of Contents
5-1. Join the ZigBee Network......................5 5-2. Permit-Join ..........................5 5-3. Switch Transmission Mode ....................5 5-4. Control and Management ....................... 6 5-5. Restore to Factory Setting ...................... 6 6. Home Automation Clusters for ZL01E..................6 7. Important Maintenance Instructions.................... 8... -
Page 3: Introduction
1. Introduction Netvox ZL01E, the ZigBee gateway, acts as a Coordinator or a Router Device in ZigBee network. It is designed to interface the USB terminals with ZigBee network. There are two transmission modes: the data-transmission mode and the command-transmission mode. Any terminal is able to send data wirelessly via ZL01E under the data-transmission mode. -
Page 4: Product Appearance

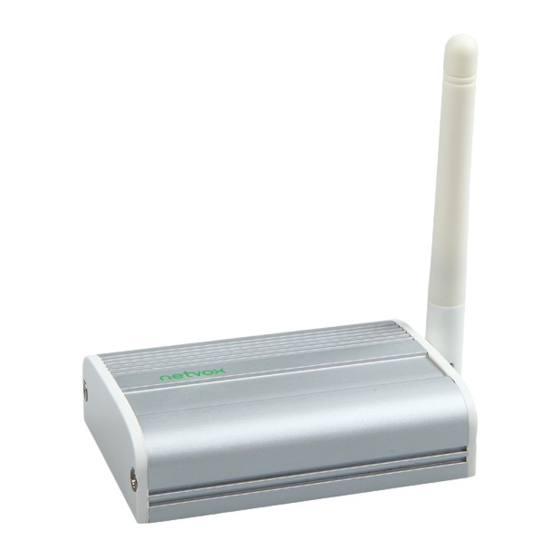

2. Product Appearance Network Indicator USB Port Permit-join Key... -
Page 5: Specification
Utilizes 2.4GHz ISM band; up to 16 channels Power supply: 5V DC Up to 150 meters wireless transmission range in non-obstacle space Easy installation and configuration 4. Installation This device is NOT truly waterproof/ resistant and is for indoor use. USB to ZL01E USB to computer... -
Page 6: Setting Up Zl01E
5-2. Permit-Join ZL01E is designed to work as a coordinator or a router. To allow other devices to join the ZigBee network, users could enable the Permit-Join feature using the tips: A. Press the Permit-join Key once to enable the Permit-Join feature. The indicator will flash once per second. -
Page 7: Control And Management
Step1. Power off ZL01E. Step2. Press and hold the Permit-join Key. Step3. Do not release the key and power on ZL01E to complete the restore. 6. Home Automation Clusters for ZL01E A cluster is a set of related attributes and commands which are grouped together to provide a specific function. A simple example of a cluster would be the On/Off cluster which defines how an on/off switch behaves. - Page 8 8-bit integer 0xff 0x0003 HWVersion Unsigned 0x00 – Read only 0x0D 8-bit integer 0xff 0x0004 ManufacturerName Character 0 – 32 Read only netvox string bytes 0x0005 ModelIdentifier Character 0 – 32 Read only ZL01EE3C string bytes /ZL01EE3R 0x0006 DateCode Character 0 –...
-
Page 9: Important Maintenance Instructions
7. Important Maintenance Instructions • Please keep the device in a dry place. Precipitation, humidity, and all types of liquids or moisture can contain minerals that corrode electronic circuits. In cases of accidental liquid spills to a device, please leave the device dry properly before storing or using.
