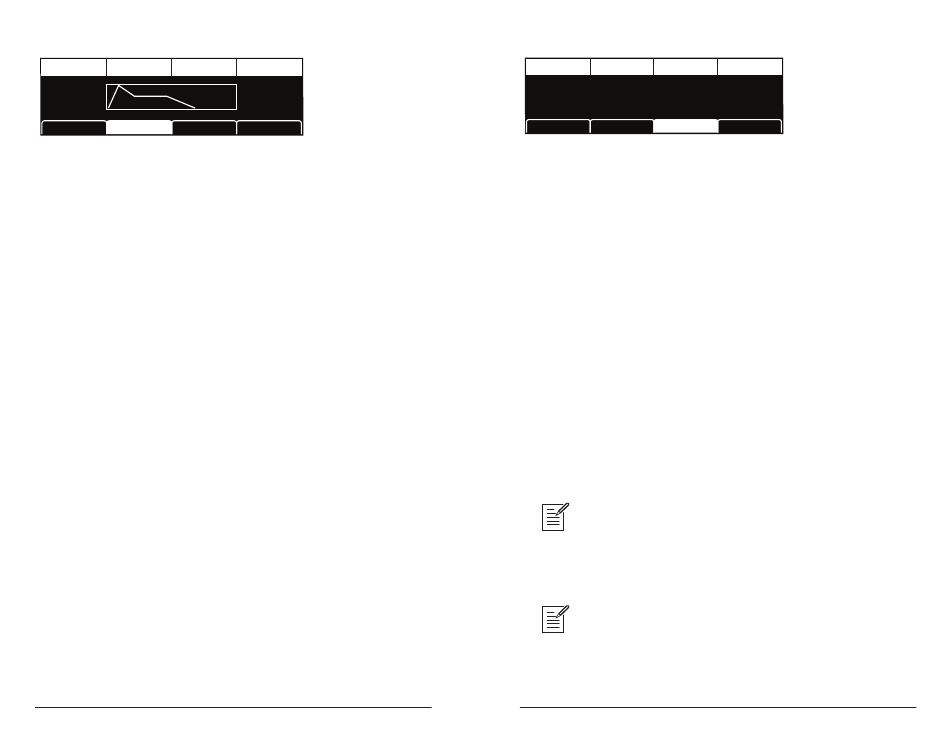

TAB 2 - VCF Envelope Amount

Amount Vel On/Off Delay
Amt:71 Vel On/Off: On Del:24
VCF ADSR VCF Env Amt LP Filter
—Sets the amount of modulation from the filter
Env Amount: -127...127
envelope to the filter's cutoff frequency. Any setting above zero means
that each time you strike a key, the filter envelope controls how the filter
opens and closes. Higher amounts more dramatically affect the cutoff
frequency. This control is bipolar. Positive settings produce standard
behavior. Negative settings invert the envelope.
—Allows key velocity to influence filter cutoff
Velocity On/Off: On, Off
frequency. If on, the harder you play, the more the filter will open and the
brighter the sound will be. If off, key velocity will not affect the filter.
This control allows for more touch-sensitive sounds.
—Sets a delay between the time the envelope is triggered
Delay: 0...127
(note on) and when the attack portion actually begins.
Env Repeat: Off, On —When on, the Delay, Attack, and Decay segments
of the envelope repeat. Sustain still affects the level at which the Decay
segment ends, but instead of sustaining at a fixed level while a note is
gated on, Delay, Attack, and Decay loop until the note is turned off. The
Release segment begins when the note is gated off, just as it does when
Repeat is off.
34 Filter
Env Repeat
Rept: Off
LPF Misc
Sequential

TAB 3 - LP Filter

Cutoff Resonance Drive
28 0 0
CUTOFF RESONANCE DRIVE
VCF ADSR VCF Env Amt LP Filter
—Sets the filter's cutoff frequency. Frequencies are
Cutoff: 0...164
reduced from the top down, cutting the high frequencies and passing the
low frequencies, hence the name "low-pass."
—Emphasizes a narrow band of frequencies around
Resonance: 0...255
the cutoff frequency. High levels of resonance can cause the filter to self-
oscillate and generate its own pitch.
—Increases signal input to the filter, boosting volume and
Drive: 0...127
adding harmonic saturation and warmth.
Key>LPF Freq: 0...127 —Sets the amount of modulation from the
keyboard to the filter's cutoff frequency. Any setting above zero means
that the higher the note played on the keyboard, the more the filter opens.
This is useful for adding brightness to a sound as higher notes are played,
which is typically how acoustic instruments behave. When set to zero,
keyboard filter tracking is off, meaning that filter frequency is unaffected by
playing higher or lower notes on the keyboard. When set to 127, the filter
will track in half-step increments, which can be useful if you are using
the filter to generate a pitch through self-oscillation.
The description of envelope behavior just given is true when the
eter is set to a positive value. But since this control is actually bipolar, it is possible to
set a negative amount of modulation. In this case, the envelopes are inverted and their
behavior changes. The best way to get a feel for the difference is to experiment with
both positive and negative settings of the
The cutoff frequency setting may limit the effect of the envelope on the filter. For
example, in low-pass filter mode , if
cutoff
amount will have no effect on the filter since the filter is already completely open.
Prophet X User's Guide
Key>LPF Freq
43
KEY>LPF FREQ
LPF Misc
param-
amount
parameter.
env amount
is at its highest setting, a positive envelope
Filter 35
