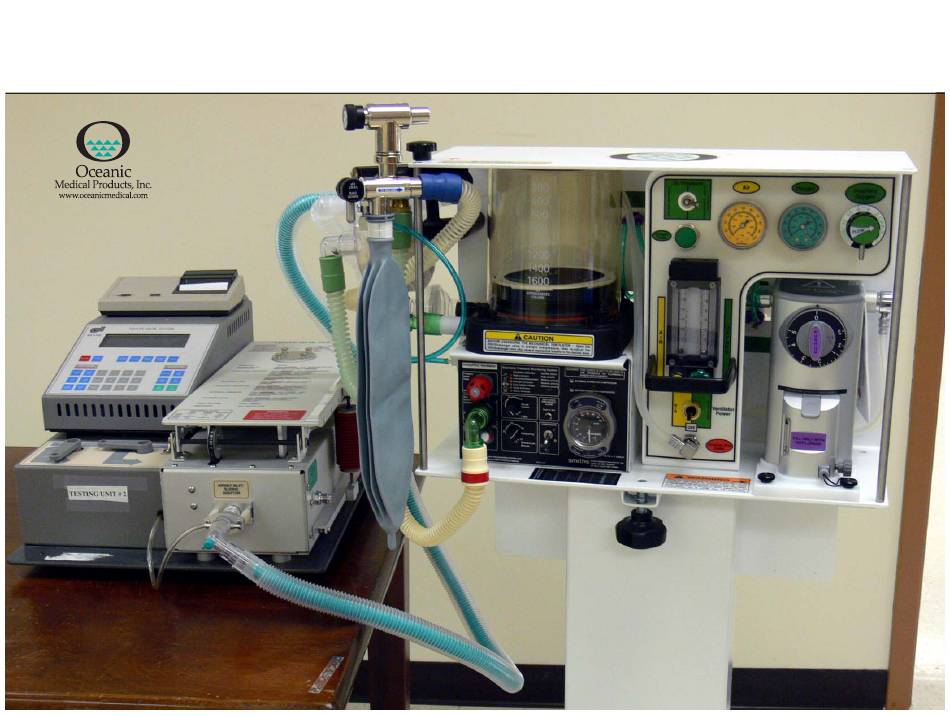

- Page 1 Magellan-2200 Model 2 Anesthesia Machine Service Manual 8005 Shannon Industrial Park Lane Atchison, Kansas 66002 Tel: 913 874 2000 Fax: 913 874 2005 Email: oceanicmedical@lvnworth.com Version: 082206...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE SUBJECT • Factory Address and Communications • Purpose • General Poicy • Factory Testing •Equipment and Tools Needed for Service • Routine Testing • Annual Maintenance, Parts Needed and Testing • Exploded View of Ventilator Control Knobs •... -
Page 3: Purpose
FACTORY ADDRESS AND COMMUNICATION INFORMATION EQUIPMENT NEEDED FOR BENCH TESTING Address: 8005 Shannon Industrial Park Lane 1. Operators Manual Atchison, KS 66005 2. Pre-Use Check List: Contained in this manual, the Operators Manual and Separate Phone: 913 874 2000 Laminated Card Fax: 913 874 2005 3. -
Page 4: Annual Maintenance, Parts Needed And Testing
6. Rubber Test Lung or Any One Liter Rubber Test Lung or One Liter Gas Reservoir Bag: ANNUAL MAINTENANCE, PARTS NEEDED AND TESTING Used to simulate patient delivered gas volumes if mechanical Test Lung is not available. Recommended Inspection/Replacement of Certain Components 7. - Page 5 G. Re-tape the DISS Air connector, threaded portion, with sealant tape. 2. Replacement of Rubber Bellows and Inspection of Exhalation Diaphragm Valve H. Re-install the DISS Air connector, screwing it closed, snugly, with the crescent wrench. A.Removal of Ventilator and Bellows Systems from Main Frame: 1.
- Page 6 5. Disconnect the ventilator gas power tubing from the Ventilator GasPower Toggle Selector Switch by pushing in on the tubing and simultaneously pushing inwards on the retainer ring located on the tubing inlet receptacle. 6. Remove the ventilator/bellows system by pulling the assembly forward from the main frame.
- Page 7 Each time the bellows assemblies are opened for inspection and cleaning, all visible 5. Using Krytox (or equivalent lubricant) place a small amount of the lubricant on the hard components must be carefully inspected and damaged parts must be replaced. plastic top ring of the bellows.
- Page 8 8. Re-install the ventilator/bellows system: E. Turn the entire machine onto the vaporizer side of the system. A. Place the ventilator/bellows system partially in place. F. Re-install the ventilator retaining screw into the bottom of the ventilator through the bottom of the machine frame. B.
- Page 9 3. Mandatory Replacement of Gas Manifold - High Pressure Color-Coded Tubing Yellow Tubing Positions From Gas Manifold to: Every five years or, at any necessary time, each of the 10 color-coded tubes that attaches Air Pressure Gauge to/from the Gas Manifold should be replaced using the following procedure: Air Position on the Ventilator Gas Selector Toggle Switch The end of the color-coded tubing must be squarely cut;...
- Page 10 Calibration Guide: CAUTION: The factory utilizes pressurized Air and Oxygen set at 50 PSI for all testing. It is recommended that this pressure be used when possible. If higher or lower inlet pressures are routinely utilized the ventilator may be re-calibrated at pressure inputs from 40 to 70 PSI. Calibration Materials Required: •...
-
Page 11: Iii. Testing After Storage
2. Ventilator Gas Power Toggle Switch - Select either Air or Oxygen as the power source. 3. Re-Calibration of Individual Control Knobs NOTE: Ensure that the Oxygen system toggle switch is in the high-pressure position. Tools needed: Test Lung. A. Remove Control Knob by grasping the knob firmaly and pulling it straight off the shaft. B. - Page 12 IV. SERVICE KIT FOR MAGELLAN-2200 ANESTHESIA MACHINES Part Number OEM PN with Description Page No. or CAGEC Drawing No. A-108 Annual Services Component Kit consists of: NOTE: The A-108 Kit is comprised of the following components. Individual components may be utilized at any interval without installing the complete Kit.
-
Page 13: Appendix
OTHER COMPONENT SERVICE 1. Vaporizer Refer to provided Penlon, Ltd. Vaporizer Manual 2. Air Compressors Refer to provided Vortran, Inc. Air Compressor Manual APPENDIX: (INDIVIDUAL PAGES) SPECIFICATIONS Subject Page Number MACHINE DIMENSIONS: Height 53.4 cm 23 inches SPECIFICATIONS FOR MAGELLAN-2200, MODEL -2 53.4 cm 23 inches Depth... - Page 14 Oxygen Flush Valve Recessed, self-closing, push-button, color coded and Oxygen Analyzer/Monitor OM-25-ME (or equivalent) Galvanic cell sensor, life labeled, provides 45-55 lpm constant flow, while expectancy 2 years under normal conditions push-button is depressed; may be used sparingly with 2 each AA batteries, life expectancy approx. 3000 use hours Oxygen Analyzer Power Source O2 concentrator as O2 power source Scaled 0-10 LPM in set increments, used for pre/post...
- Page 15 PROBLEM SOLVING GUIDE PRE USE CHECKLIST PROBLEM SOLUTION See Operators Manual Low O Pressure Alarm Activates • Check main pipeline O gas supply and the emergency O backup cylinder by observing the gas pressure gauges. Resolve by ensuring adequate pipeline and cylinder O supplies are adequate and are attached to anesthesia machine.
- Page 16 PART NO. DESCRIPTION PAGE NO. PART LIST FOR MAGELLAN-2200, MODEL-1 Listed by Assembly Section, in Bold Type. NOTE: Some numbers are repeated as these are used in additional PART NO. DESCRIPTION PAGE NO. assembly. 1/8" Hose Connector, Locking, 90 degree PART NO.
- Page 17 PART NO. DESCRIPTION PAGE NO. PART NO. DESCRIPTION PAGE NO. PART NO. DESCRIPTION PAGE NO. 1/8" Hose Connector, Locking, "Y" Outlet (3 each) 17.0 Bulb, Squeeze/Hi-Lo Pressure Check w/ CGO Adapter and Tubing 11 (Ops) Hose Connector, Locking, Straight (2 each) 18.0 Alarm, Low Pressure Mains O2, Container 11.6...
- Page 18 PART NO. DESCRIPTION PAGE NO. 26.3 Oxygen High Pressure Hose, Green, 24" length 26.4 Oxygen High Pressure Hose, Green, 15' length 6 (Ops) 26.5 Air High Pressure Hose, Yellow, 15' length 6 (Ops) A-101 Air Compressor, Vortran HP-70 18 (Ops) A-102 Water Trap for Gas Manifold, Air Inlet Connection 7 (Ops)
- Page 19 MAGELLAN-2200 ANESTHESIA MACHINE – FRONT...
- Page 20 MAGELLAN-2200 ANESTHESIA MACHINE – BACK...
-
Page 21: Gas Flow Diagrams
GAS FLOW DIAGRAMS...
