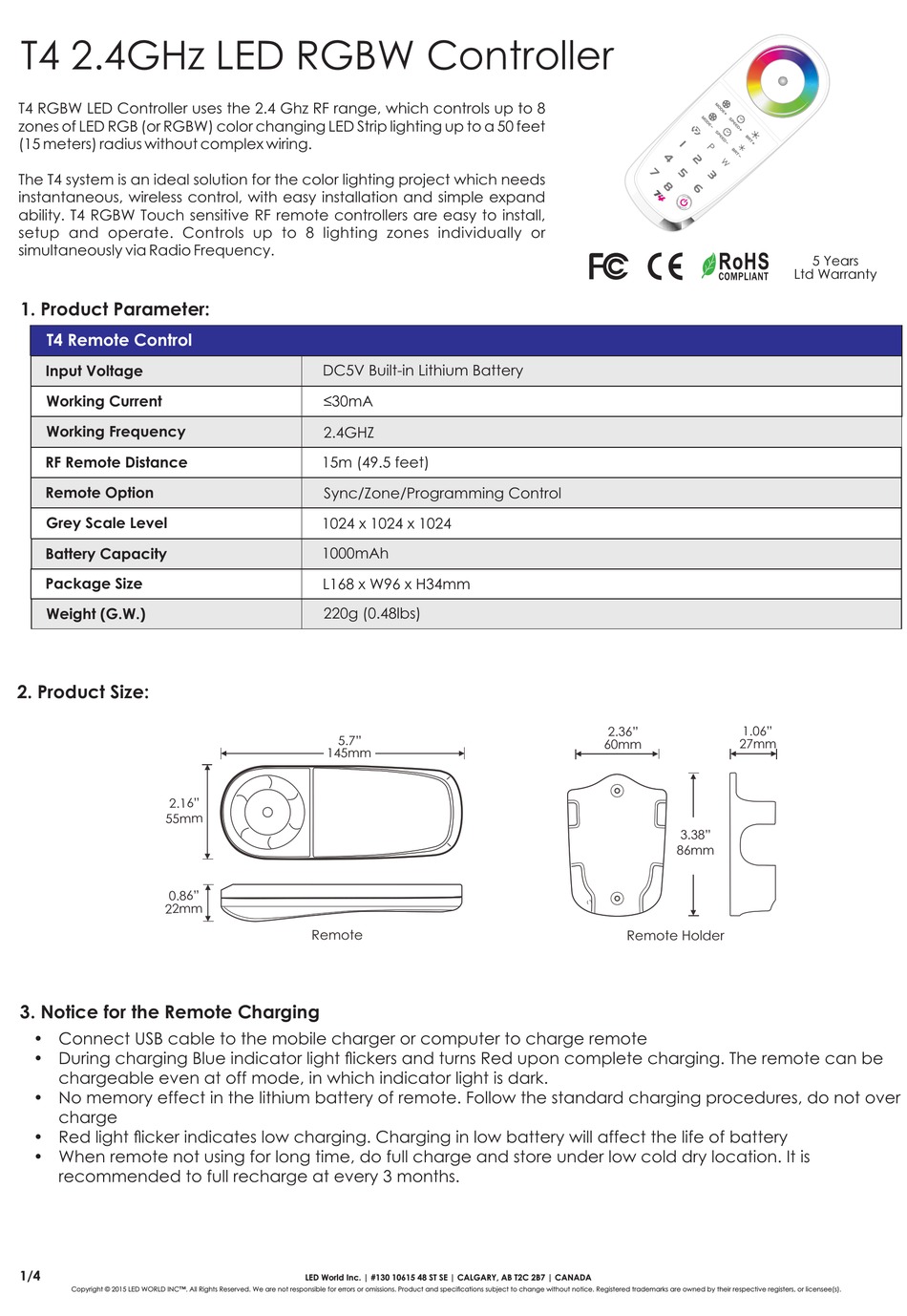

T4 2.4GHz LED RGBW Controller
T4 RGBW LED Controller uses the 2.4 Ghz RF range, which controls up to 8
zones of LED RGB (or RGBW) color changing LED Strip lighting up to a 50 feet
(15 meters) radius without complex wiring.
The T4 system is an ideal solution for the color lighting project which needs
instantaneous, wireless control, with easy installation and simple expand
ability. T4 RGBW Touch sensitive RF remote controllers are easy to install,
setup and operate. Controls up to 8 lighting zones individually or
simultaneously via Radio Frequency.

1. Product Parameter:

T4 Remote Control
Input Voltage
Working Current
Working Frequency
RF Remote Distance
Remote Option
Grey Scale Level
Battery Capacity
Package Size
Weight (G.W.)

2. Product Size:

3. Notice for the Remote Charging

Ÿ Connect USB cable to the mobile charger or computer to charge remote
Ÿ During charging Blue indicator light ickers and turns Red upon complete charging. The remote can be
chargeable even at off mode, in which indicator light is dark.
Ÿ No memory effect in the lithium battery of remote. Follow the standard charging procedures, do not over
charge
Ÿ Red light icker indicates low charging. Charging in low battery will affect the life of battery
Ÿ When remote not using for long time, do full charge and store under low cold dry location. It is
recommended to full recharge at every 3 months.
1/4
Copyright © 2015 LED WORLD INC™. All Rights Reserved. We are not responsible for errors or omissions. Product and specications subject to change without notice. Registered trademarks are owned by their respective registers, or licensee(s).
DC5V Built-in Lithium Battery
≤30mA
2.4GHZ
15m (49.5 feet)
Sync/Zone/Programming Control
1024 x 1024 x 1024
1000mAh
L168 x W96 x H34mm
220g (0.48lbs)
5.7"
145mm
Remote
LED World Inc. | #130 10615 48 ST SE | CALGARY, AB T2C 2B7 | CANADA
1.06"
2.36"
27mm
60mm
3.38"
86mm
Remote Holder
5 Years
Ltd Warranty
