Summary of Contents for Astor-Bannerman ABW-CP

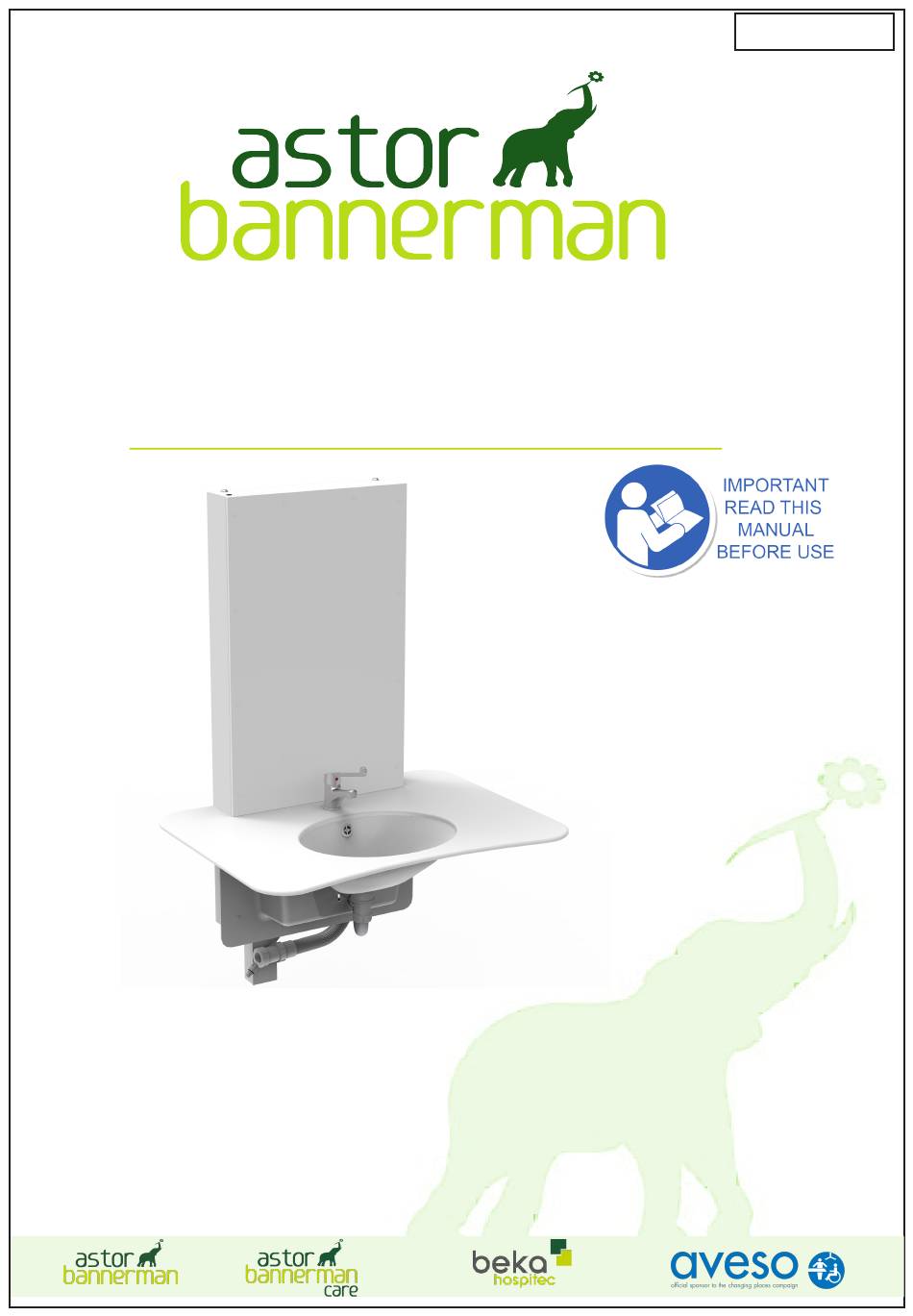

- Page 1 Warranty No: ABW-CP Height Adjustable Basin INSTALLATION and USER GUIDE Version 4 : 25-09-019...
-
Page 2: Operation
Operation Fig 1 Press and hold button Press and hold button to lower basin to raise basin Operation of the lever tap system The lever should be FULLY DOWN when off. To operate, rotate the lever clockwise to turn on the flow of water;... -
Page 3: Troubleshooting
Depress the ‘Up’ button on the handset to gain clearance from the obstruction and then remove the obstruction. The rise & fall unit should then resume normal function. If the problem persists after carrying out these remedies, please contact Astor-Bannerman (contact details can be found on the back page of this user guide). -
Page 4: Technical Specification
Technical Specification. Duty cycle: 10%, Maximum min use/18 min rest IP Rating: IP X4 Supply voltage: 30V ac Power: 0.5KW Dry weight: 50Kg A weighted sound emission<70dB(A) All dimensions in mm Fig 3 Our policy is one of continuous improvement and we therefore reserve the right to make technical alterations without notice. -
Page 5: Pre-Installation Information
Electrics: The ABW-CP is supplied by mains electric (30v) and transformed to 4v within the unit. A 30mA RCD protected fused spur is required, with a flush mounted flex outlet cover, on the wall behind the unit at a height of 1100mm from the floor on the centreline of the unit. -
Page 6: Installation
Installation Please Note: Due to the complexity of different building methods Astor-Bannerman do not supply installation fixings and anchors. Important: The attachment rail is designed to only support the weight of the unit and not the rated load of the sink, this is an installation aid only Fig 5 •... -
Page 7: Electrical Connection
• Fit the trunking (the following steps describe how to mark up and drill the trunking so that it can be fitted over the top of the supply pipes and isolation valves): o Position the trunking in front of the hot and cold water outlets and with its end resting on the floor o Remove and retain the trunking cap o Mark on the back of the trunking the top of the isolation valves and the bottom of the... - Page 8 Fig 9 Assemble the Basin: • Cover the support arms to protect the basin. Rotate the support arms so they are horizontal and place the up-turned basin on the arms • Fit the overflow, hose and waste connection (all from the packing kit) to the basin •...
- Page 9 Fit the mains water supply: • Ensure both the hot and cold mains water supplies have been flushed and only then fit the open ends of the supply hoses with the filter screens supplied onto the isolation valves • Thread the free end of the supply hoses up through the trunking and through the recess in the bottom left hand side of the carcass of the rise and fall unit.
- Page 10 • • • • , with the elbow horizontal and pointing to your right (Fig 13) • Test and set the tap: • Turn on both water supplies and move the tap handle to both cold and hot positions, letting the water flow for a few minutes to finish flushing through the system •...
-
Page 11: Certificate Of Conformity
ABW-CP Height adjustable basin Equipment Type: I hereby declare that the above product conforms to the following specification: Signed: Technical Director For and on behalf of Astor-Bannerman (Medical) Ltd Date: Directors: Dr. K D Kwok J Stuart-Smith P G Deverson... - Page 12 Our policy is one of continuous development, and we therefore reserve the right to make technical alterations without notice. The content of this publication may not be copied either whole or in part without the consent of Astor-Bannerman (Medical) Limited. Astor-Bannerman Ltd...
