RAVEN
PN:60-0001 • NSN: 6530-01-432-5114

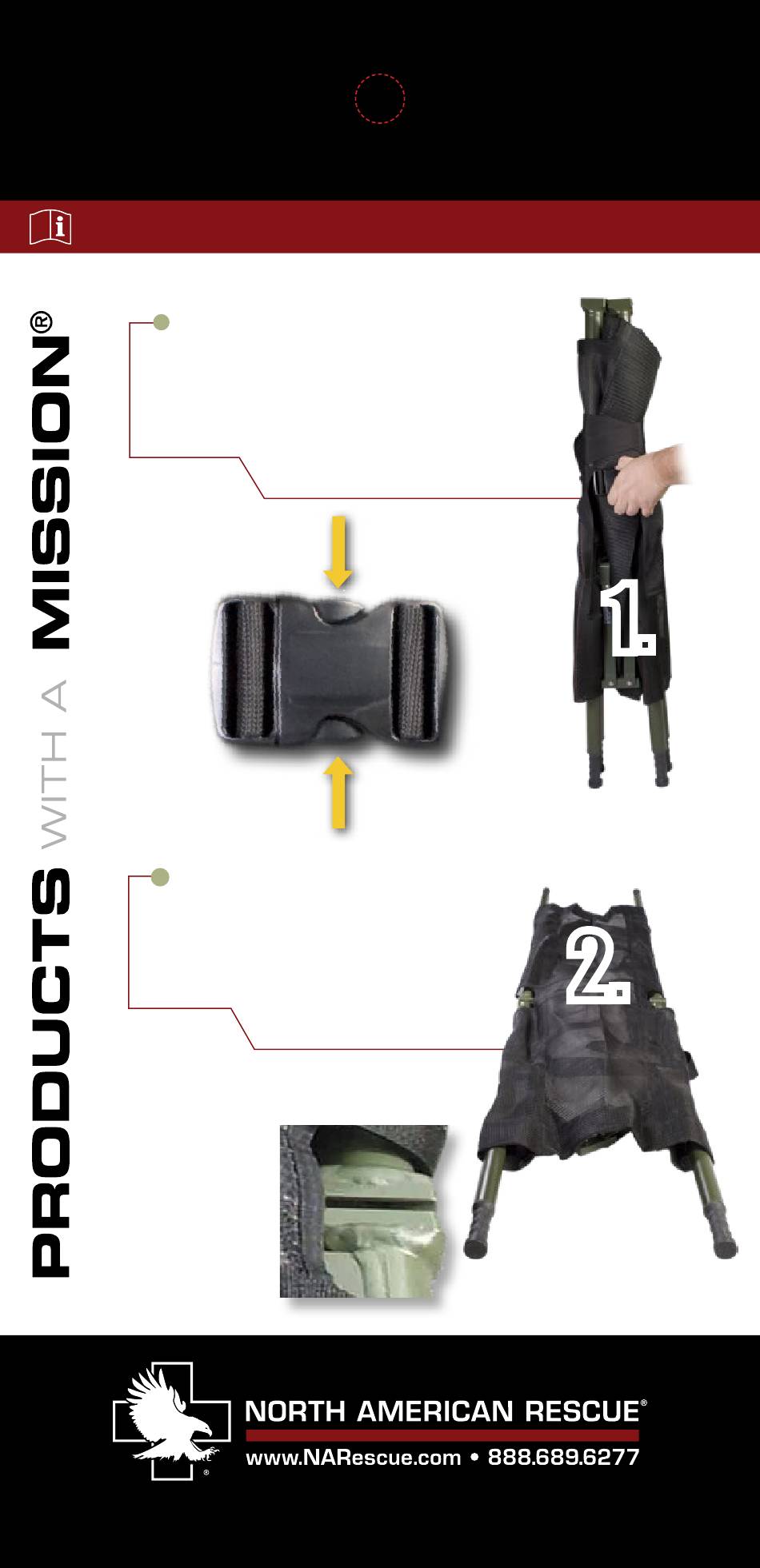

INSTRUCTIONS FOR USE
STEP 1:
While standing
upright, release
buckles from litter.
STEP 2:
Place litter on the ground
and completely extend with
the fabric side up.
NOTE:
When litter
is in the relaxed
position,
the hinges
closest to
you (when
holding the
handles)
will look like
Figure 1.
35 Te d w a l l C o u r t • G r e e r S C 29650 • US A
LITTER SERIES
®
Raven
II Model 90C Litter
®
Figure 1
1.
2.
Relaxed
Position
Advertisement
Table of Contents
Summary of Contents for Raven 90C
- Page 1 RAVEN LITTER SERIES ® Raven II Model 90C Litter ® PN:60-0001 • NSN: 6530-01-432-5114 INSTRUCTIONS FOR USE STEP 1: While standing upright, release buckles from litter. STEP 2: Place litter on the ground and completely extend with the fabric side up.
- Page 2 RAVEN LITTER SERIES ® Raven II Model 90C Litter ® PN:60-0001 • NSN: 6530-01-432-5114 OPENING INSTRUCTIONS CONTINUED STEP 3: Keeping the litter straight as possible, grab handles and rotate inward until all hinges rotate & lock (see Figure 2). Figure 2...
