Summary of Contents for Asada UE-30

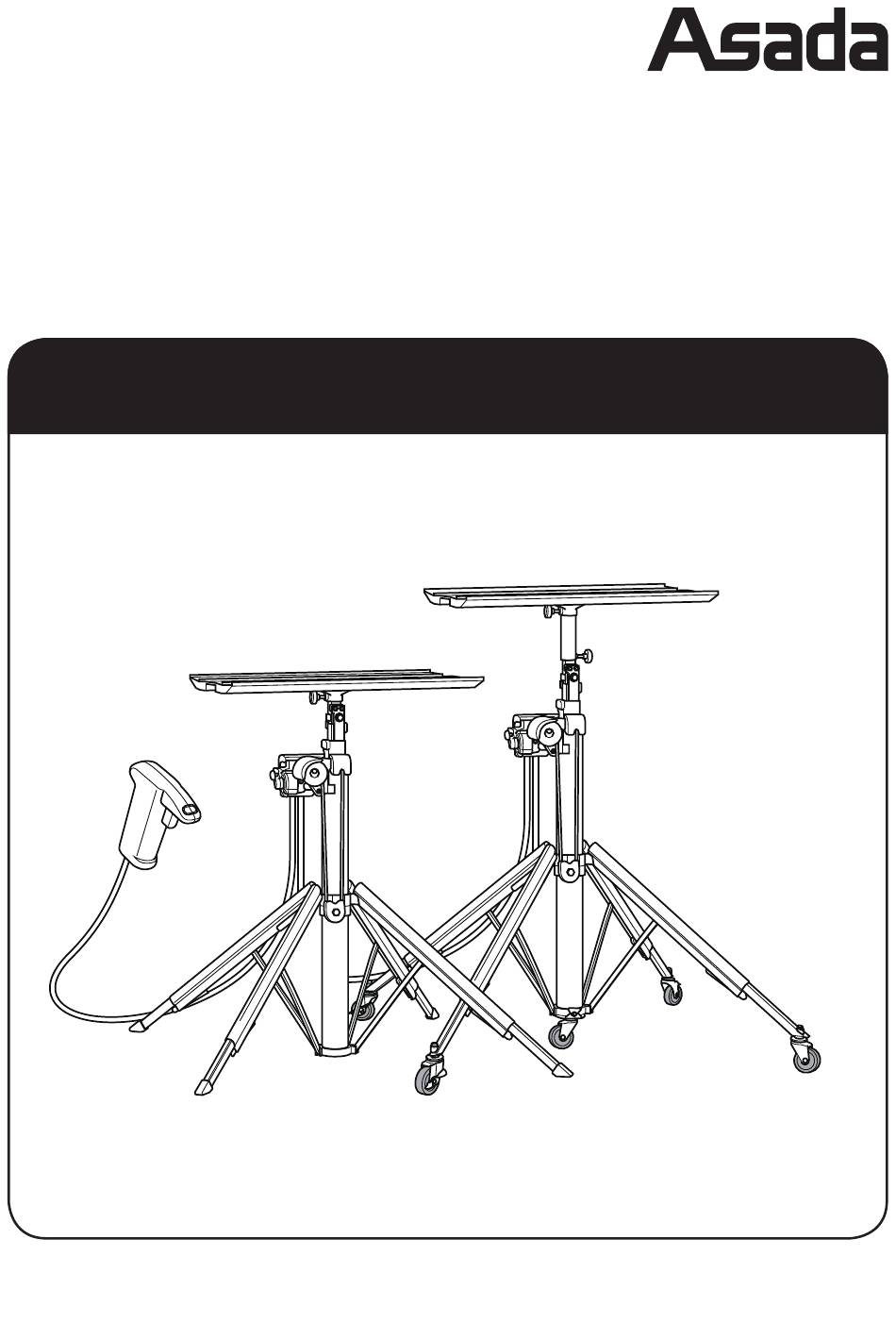

- Page 1 Wire Lift Electric Wire Lift I N ST R U C T I O N MA NU A L Please read through this manual before operating.
-
Page 2: Table Of Contents
ELECTRIC WIRE LIFT SAFETY PRECAUTIONS Thank you for selecting Electric Wire Lift. ● Please give this operation manual to anyone who operates this unit. ● For safe and efficient operation any operator should read this manual thoroughly before operation. ● Do not use this unit for purposes other than originally intended. ●... -
Page 3: General Safety Instructions
ELECTRIC WIRE LIFT GENERAL SAFETY INSTRUCTIONS ● Before using the unit, read all safety instructions to use it correctly according to the instructions. ● Detailed function of the operation is described in each chapter after this. CAUTION ◆ Do not use the unit in a place where has flammable liquid such as gasoline and thinner or flammable gas. - Page 4 ELECTRIC WIRE LIFT WARNING ◆ When using the unit, gravity of the load should come at the center of the aluminum plate. ◆ Do not climb up the unit or set a ladder and put a load on one side of the mast.
- Page 5 ELECTRIC WIRE LIFT CAUTION ◆ Do not give a strong shock to the unit. Also do not pull the mast with a force. ◆ Make sure that there is no trouble with the unit by idling two or three times before use. Especially when the unit hasn't been used for long time, please idle.
-
Page 6: Special Safety Instructions
ELECTRIC WIRE LIFT SPECIAL SAFETY INSTRUCTIONS WARNING ◆ The unit is a lift for the load. Do not lift people or animal. ◆ Check all the parts before use and confirm whether there is no damage or lack of the parts. In case of any damage or lack of the parts, stop using the unit immediately and repair or change. -
Page 7: Parts Identification
Mast Motor & Gear Box Wire Emergency Stop Button Aluminum Cylinder Slide Ring Pulley with cover Fix Screw for legs Leg Fix Ring Mast Holding Belt Legs Slide Button Controller Slide Legs Explaining with model UE-30 on this instruction manual. -
Page 8: Positions Of Warning Label
High Voltage Warning Label （SS0334） （SS0146） Emergency Stop Button Label （SS0335） Max Load Capacity Label (SS0332） Contact Warning Label （SS0147） Specification Models UE-30 UE-33C UE-37 UE-40C Code No. UE301 UE331 UE371 UE401 Power Supply 1 phase 220-240V 50/60 Hz Hoisting Time... -
Page 9: Standard Accessories
ELECTRIC WIRE LIFT Standard Accessories Code No. Models UE-30 UE-33C UE-37 UE-40C ○ UE3002 Electric Wire Lift UE-30 ○ UE3302 Electric Wire Lift UE-33C ○ UE3702 Electric Wire Lift UE-37 ○ UE4002 Electric Wire Lift UE-40C ○ ○ UE3079 Extension Adaptor ○... -
Page 10: Preparation
ELECTRIC WIRE LIFT PREPARATION Assembling ① Set the lift on a flat and solid ground. Mast In case the setting position is not stable, cover the position where the aluminum cylinder is grounded. holding belt ② Remove the mast holding belt from the mast. Aluminum Cylinder Ground ③... -
Page 11: Horizontal Value
③ If the unit is not vertical, adjust the length of the slide legs to make the unit vertical. Use in Step（without caster model UE-30/37） The slide legs are adjustable. The unit can be set on even a step as right drawing. -
Page 12: Maximum Load Capacity
ELECTRIC WIRE LIFT Maximum Load Capacity（without caster model UE-30/37） Maximum load capacity varies by following, Max. load capacity（kg） ・Max. height (including extension adaptor) UE-30 ・Length of slide legs ・Existence of casters U E - 3 7 w i t h... -
Page 13: Aluminum Plate
ELECTRIC WIRE LIFT Aluminum Plate ① Remove the hook holding the aluminum plate. Aluminum Plate ② Open the aluminum plate. ③ Set the aluminum plate on top of the mast edge and fix it with the fix screw for aluminum plate. Hook WARNING ◆... -
Page 14: Emergency Stop Button
ELECTRIC WIRE LIFT Emergency Stop Button ① Emergency Stop Button is equipped into the lift. Emergency Stop Button Make sure that the emergency stop button is pulled up. Pulled up Power Supply Plug into the outlet 220V -240V 50/60Hz. -
Page 15: Operation
ELECTRIC WIRE LIFT OPERATION WARNING ◆ Do not use extension cord except when it is necessary. Using an inappropriate extension cord may cause of fire, getting electric shock or damage to the unit. In case of necessity of using an extension cord for outside work, use a cord which is a length of 20m or less and wire diameter of 2.0m㎡... -
Page 16: Emergency Stop
ELECTRIC WIRE LIFT Emergency Stop For the emergency case, push the emergency stop Emergency Stop Button button. The unit will stop immediately regardless of operation for lift up or down. The aluminum plate is kept to the same position when the unit is stopped. Release from Emergency stop condition. -
Page 17: Manual Operation
ELECTRIC WIRE LIFT Manual Operation The unit can operate manually using the manual Manual Handle handle. ① Unplug the unit. ② Press the emergency stop button. ③ Remove the manual handle from its fixing hook. Fixing Hook for the manual handle ④... -
Page 18: Overload Protection Device
ELECTRIC WIRE LIFT Overload Protection Device The overload protection devise works to prevent over loading. The devise works when the load is over approximately 150kg. Once the devise is worked, it rumbles. And the lifting movement is stopped. To restart, make the load lighter than the maximum load capacity. -
Page 19: Maintenance & Spection
ELECTRIC WIRE LIFT MAINTENANCE & INSPECTION ● Inspect and clean the unit regularly as instructed below and perform correction or replacement timely. WARNING ◆ Do not remodel the unit. It leads to injury or death. CAUTION ◆ Replace worn and damaged parts with the original parts. Otherwise damage on the unit and injury may occur. - Page 20 ELECTRIC WIRE LIFT ② Check if the all bolts and nuts are Winch tightened. ③ Check if the winch works correctly and the wire is not twined around the winch-drum. Wire Also check if the wire is in correct position. （Refer to P17 for Position of the Wire）...
-
Page 21: Month Inspection
ELECTRIC WIRE LIFT ⑨ Check if the mast moves smoothly. Check if any dust or rust on the slide part of the wire and apply silicon lubricant little. ⑩ Check if any abnormal condition on the casters or the slide legs. Check if any defect, damage or warp on the casters and bearing. -
Page 22: How To Adjust Slide Fixed Resin
ELECTRIC WIRE LIFT How to Adjust Slide Fixing Plate In case some gaps at the mast connection, adjust Slide Fix Plate the slide fixing plate. Hex Nut ① Loosen the hex nut. ② Tighten the stop bolt. Stop Bolt ③ Loosen the stop bolt by 90° and adjust the gap. ④... -
Page 23: Before Requesting Repair Or Service
ELECTRIC WIRE LIFT BEFORE REQUESTING REPAIR OR SERVICE ● Inspect the unit as below before requesting repair or service. If the problem is not solved after an inspection, please contact us or authorized distributors for repair. ● If the unit got broken under improper usage or usage other than original application, the repair is not covered by warranty. - Page 24 Code No. IM0444 Ver.03...
