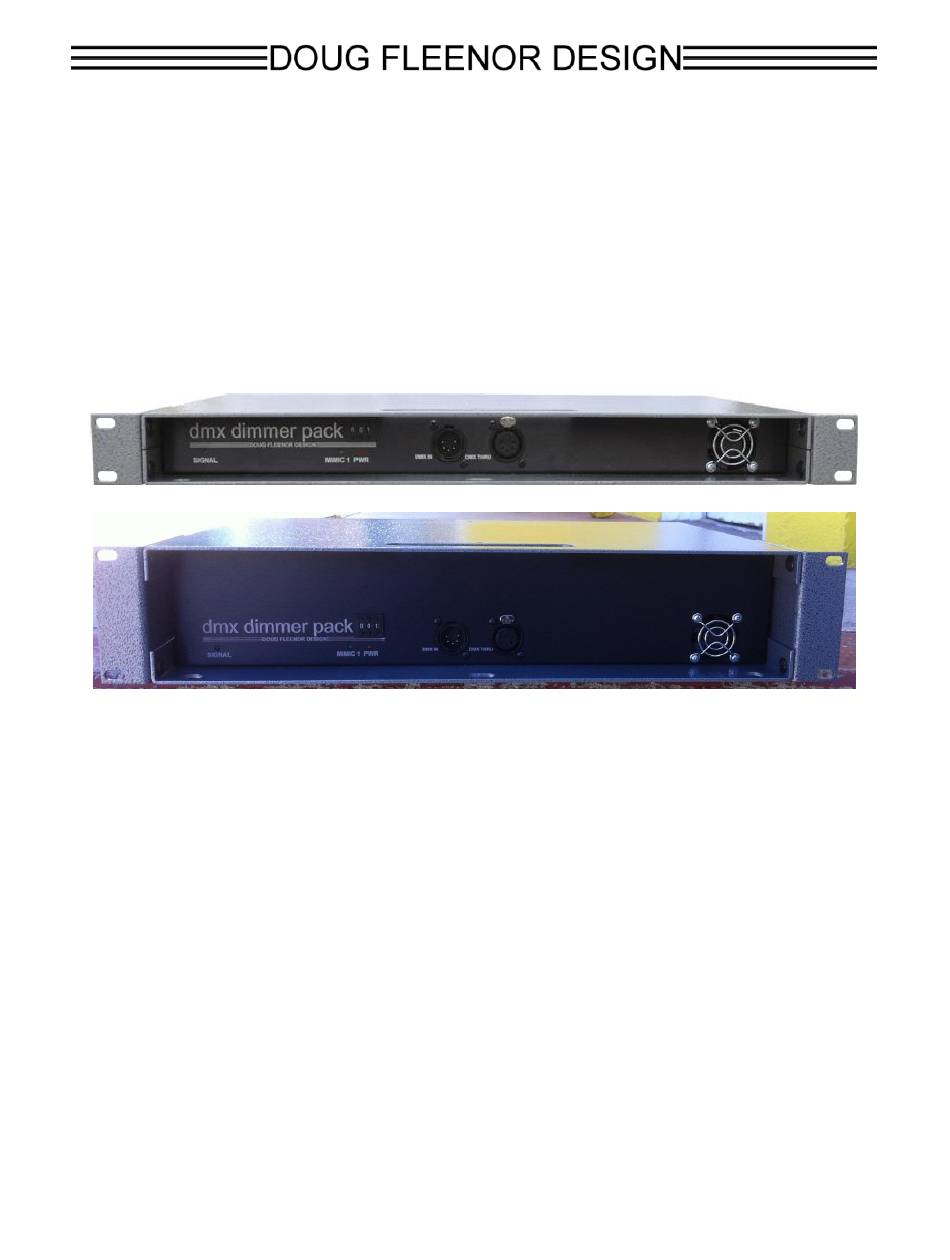

- Page 1 Models DMX24DIM and DMX24DIM-2U Installation and Operations Manual Doug Fleenor Design, Inc. 396 Corbett Canyon Road Arroyo Grande, CA 93420 (805) 481-9599 Voice and FAX Manual revision May 2019 Page 1 of 5...
- Page 2 The DMX24DIM and DMX24DIM-2U are ETL Listed under safety Standard UL 508 Mounting/installation The DMX24DIM or DMX24DIM-2U can be used as a portable unit or it can be mounted in a standard 19" equipment rack. Care must be taken to allow for unobstructed airflow around the unit. There must be at least 6 inches of clearance in front of the DMX24DIM or DMX24DIM-2U and two inches of clearance on the left side of the enclosure (as viewed from the front panel).
- Page 3 There is no internal termination. The last device in the DMX512 daisy chain should be fitted with a DMX512 terminator. Only pins 1, 2, and 3 are used by the DMX24DIM or DMX24DIM-2U, however all 5 pins are passed through to the “thru” connector.
- Page 4 On when power is on Loss of DMX512 signal Upon loss of the DMX512 input, the DMX24DIM will begin fading all of its outputs to zero. The fade out time is about 60 seconds from the loss of signal. Page 4 of 5...
- Page 5 Fan operation The fan in the DMX24DIM or DMX24DIM-2U will run any time any of the levels of any dimmer in the pack is above 0%. The fan will continue to run for about 30 seconds after all dimmers are at zero.
