Powermatic 6294924 Manual

#6294924, LED lamp with PM2014 bracket
WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause
cancer and birth defects or other reproductive harm. For more information go to http://www.p65warnings.ca.gov.
WARNING: Drilling, sawing, sanding or machining wood products generates wood dust and other substances known to
the State of California to cause cancer. Avoid inhaling dust generated from wood products or use a dust mask or other
safeguards for personal protection. Wood products emit chemicals known to the State of California to cause birth defects or
other reproductive harm. For more information go to http://www.p65warnings.ca.gov/wood.
This accessory, when mounted to the bracket, is designed
for use with the Powermatic model PM2014 Lathe.

Contents of container:

1 LED lamp
1
Mounting bracket
2 Socket head cap screws M12
4 Pan head screws M4
1 Instruction sheet

Assembly and operation

See Figure 1.
1. Mount the bracket to the two threaded holes atop the
lathe head with the socket head screws, and tighten.
2. Mount the lamp to the bracket with the four pan head
screws, and tighten.
Loosen hand knobs to adjust lamp position. Tighten knobs
to secure in position. The LED head can be rotated on its
own axis until it contacts the stop pin.
Before turning on lathe, make sure
spinning workpiece will not contact lamp. Ensure that
hand knobs are tight to prevent lamp from migrating
into workpiece during operation.

GROUNDING INSTRUCTIONS

This tool must be grounded. In the event of a malfunction
or breakdown, grounding provides a path of least
resistance for electric current to reduce the risk of electric
shock. This tool is equipped with an electric cord having an
equipment-grounding conductor and a grounding plug. The
plug must be plugged into a matching outlet that is properly
installed and grounded in accordance with all local codes
and ordinances.
Powermatic
427 New Sanford Road
LaVergne, Tennessee 37086
Ph.: 800-274-6848
www.powermatic.com
Do not modify the plug provided - if it will not fit the outlet,
have the proper outlet installed by a qualified electrician.
Improper connection
conductor can result in a risk of electric shock.
The conductor with insulation having an outer surface that
is green with or without yellow stripes is the equipment-
grounding conductor. If repair or replacement of the electric
cord or plug is necessary, do not connect the equipment-
grounding conductor to a live terminal.
Check with a qualified electrician or
service personnel if the grounding instructions are not
completely understood, or if in doubt as to whether the
tool is properly grounded. Failure to comply may
cause serious or fatal injury.
Use only 3-wire extension cords that have 3-prong
grounding plugs and 3-pole receptacles that accept the
tool's plug.
Copyright © 2020 Powermatic, a division of JPW Industries

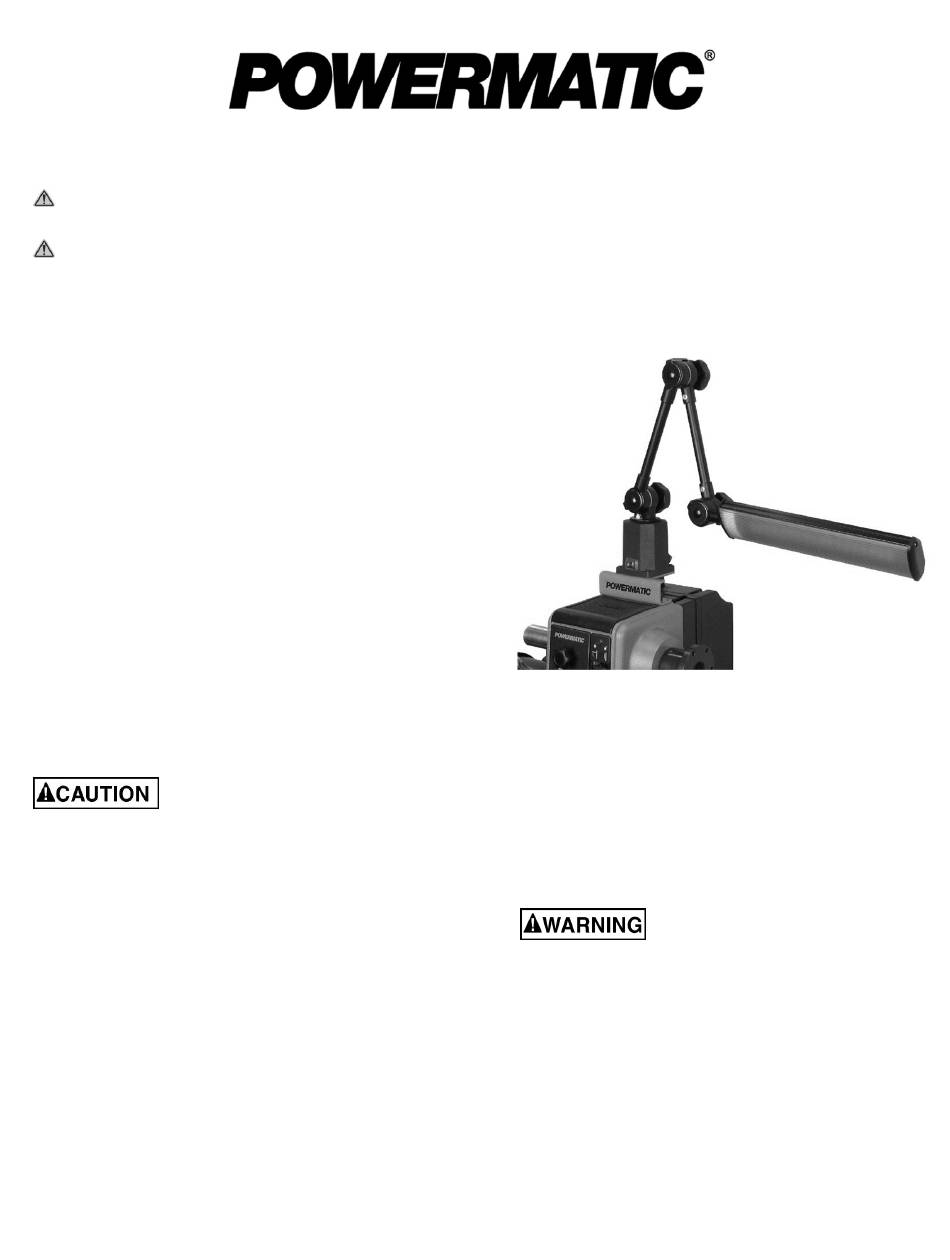

Figure 1
of the equipment-grounding
(continued)
Document No. M-6294924
Edition 1 04/2020
