MetalMaster SHST2.0HD Operation Manual

Shrinker stretcher

Advertisement

Quick Links

OPERATION MANUAL
Model. SHST2.0HD
Order Code S2268
Edition No
: SHST2.0HD-2
Date of Issue
: 08/2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHST2.0HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MetalMaster SHST2.0HD

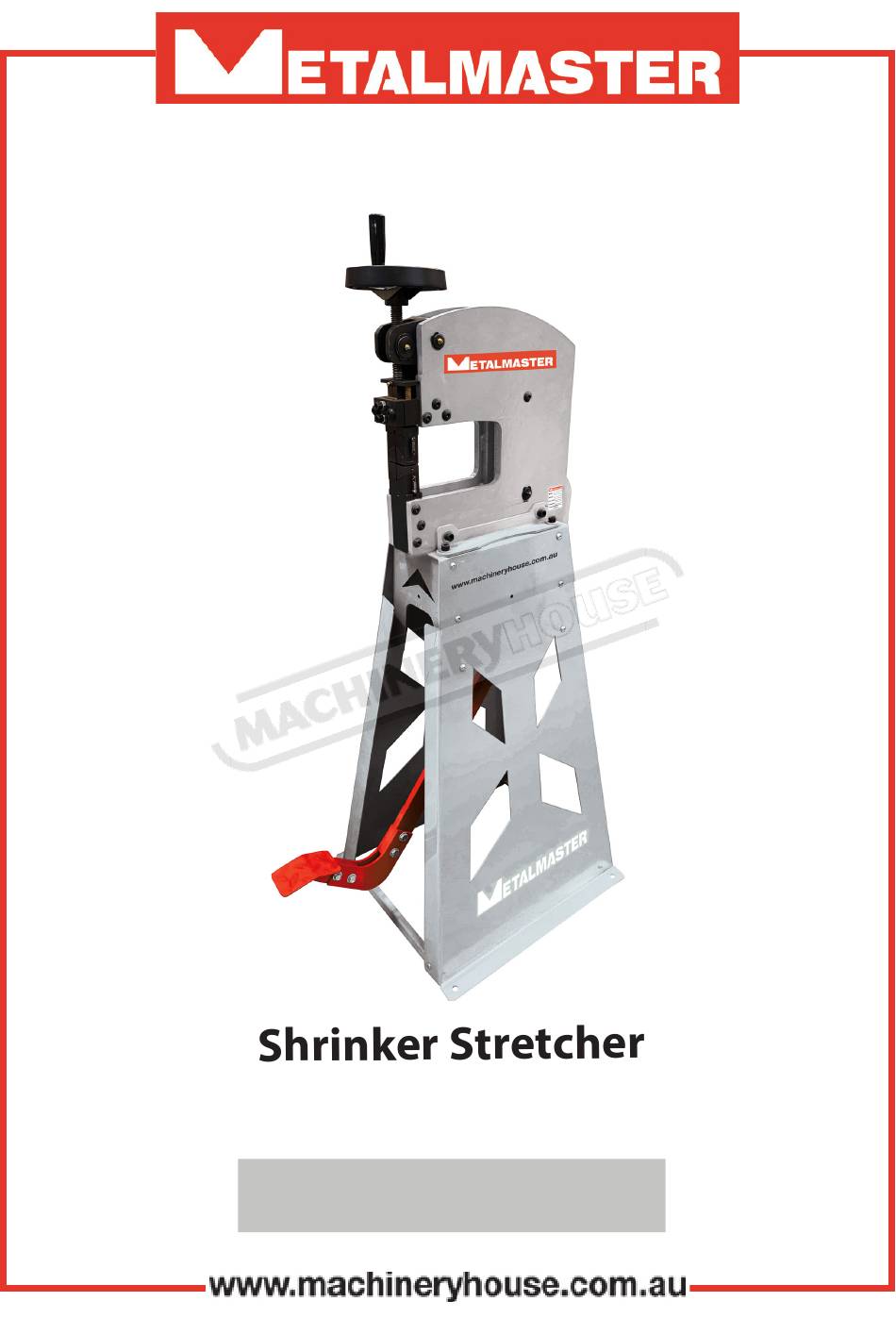

  • Page 1 OPERATION MANUAL Model. SHST2.0HD Order Code S2268 Edition No : SHST2.0HD-2 Date of Issue : 08/2020...
  • Page 2 This manual is only for your reference. Owing to the continuous improvement of the Metalmaster machine, changes may be made at any time without obligation or notice. Please ensure the local voltage is the same as listed on the specification plate before operating any electric machine.
  • Page 3: Table Of Contents

    OPERATION MANUAL C O N T E N T S: 1. GENERAL MACHINE INFORMATION 1.1 Specifications.............. 4 1.2 Accessories Included..........4 1.3 Identification............... 5 2. IMPORTANT INFORMATION 2.1 General Metalworking Machine Safety..... 6 2.2 Specific Safety For Shrinker Stretchers....9 2.3 Lifting Instructions............
  • Page 4: Specifications

    OPERATION MANUAL 1.1 SPECIFICATION Order Code S2268 MODEL SHST2.0HD Operation (Type) Foot Operated Mild Steel - Capacity (mm/gauge) 2.0 / 14 Aluminium - Capacity (mm/gauge) 2.5 / 12 Throat Depth (mm) Working Height (mm) 1078 Dimensions (L x W x H) (mm)
  • Page 5: Identification

    OPERATION MANUAL 1.3 IDENTIFICATION Main Frame Bottom Jaw Stand Top Jaw Foot Pedal Adjusting Handle...
  • Page 6: General Metalworking Machine Safety

    OPERATION MANUAL 2.1 GENERAL METALWORKING MACHINE SAFETY DO NOT use this machine unless you have read this manual or have been instructed in the use of this machine in its safe use and operation WARNING This manual provides safety instructions on the proper setup, operation, maintenance, and service of this machine.
  • Page 7 OPERATION MANUAL 2.1 GENERAL METALWORKING MACHINE SAFETY Cont.  Ensure that keys and adjusting wrenches have been removed from the machine before turning on the power. Appropriate storage for tooling should be provided.  Ensure that all cutting tools and blades are clean and sharp. They should be able to cut freely without being forced.
  • Page 8 OPERATION MANUAL 2.1 GENERAL METALWORKING MACHINE SAFETY Cont. HAZARDS ASSOCIATED WITH MACHINES include, but are not limited to: • Being struck by ejected parts of the machinery • Being struck by material ejected from the machinery • Contact or entanglement with the machinery •...
  • Page 9: Specific Safety For Shrinker Stretchers

    OPERATION MANUAL 2.2 SPECIFIC SAFETY FOR SHRINKER STRETCHERS DO NOT use this machine unless you have been instructed in its safe use and operation and have read and understood this manual. Safety glasses must be worn at Close fitting protective clothing or all times in work areas.
  • Page 10: Lifting Instructions

    OPERATION MANUAL 2.3 LIFTING INSTRUCTIONS This machine is extremely heavy. Serious personal injury may occur if safe moving methods are not followed. To be safe, you will need assistance and power equipment when moving the shipping crate and removing the machine from the crate.
  • Page 11: Setup

    3. SETUP 3.1 ASSEMBLY THE METALMASTER Shrinker & Stretcher will require minor assembly prior to operation. It is important that the entire manual is read to become familiar with the unit BEFORE you assemble and use the Machine. Before assembling the Metal Shrinker Stretcher, be sure that you have all parts described in the Parts List.
  • Page 12: Clean Up

    OPERATION MANUAL 3.2 CLEAN - UP The unpainted surfaces of the machine have been coated with a waxy oil to protect them from corrosion during shipment. Remove the protective coating with a solvent cleaner or a citrus based degreaser. Optimum performance from your machine will be achieved when you clean all moving parts or sliding contact surfaces that are coated with rust prevented products.
  • Page 13: Operation

    2. Select and fit either the shrinking jaws or the stretching jaws. 3. If creating a flanged form, before working the material on a Metalmaster Shrinker Stretcher bend the piece of sheet metal to 90° on a folder. (Maximum flange width is 204mm) 4.
  • Page 14: Maintenance

    OPERATION MANUAL 5. MAINTENANCE 5.1 CLEANING AND OILING When finished with the machine always clean down the machine and oil with a light oil all moving parts and machined surfaces. Clean both of the jaws when finished. Using an air gun of vacuum will remove the surface dirt but to clean them properly, disassemble the jaws as follows.
  • Page 15: Spare Parts

    OPERATION MANUAL SPARE PARTS SECTION Model. SHST2.0HD Order Code S2268 Edition No : SHST2.0HD-2 Date of Issue : 08/2020 The following section covers the spare parts diagrams and lists that were current at the time this manual was originally printed. Due to continuous improvements of the machine, changes may be made at any time without notification.
  • Page 16 OPERATION MANUAL SPARE PARTS DIAGRAM...
  • Page 17 OPERATION MANUAL SPARE PARTS LIST ITEM DESCRIPTION QTY. ITEM DESCRIPTION QTY. Right Side Plate Washer 4mm Left Side Plate Bushing Copper Bushing Spring Driving Arm Spring Shaft 20mm Copper Bushing Fixed Seat Spring Washer Spring Fish-Eye Joint Bearing Screw M6X16 Hexagonal Screw Side Plate Nut M6...
  • Page 18: Risk Assessment Sheets

    General Machinery Safety Instructions Machinery House requires you to read this entire Manual before using this machine. 1. Read the entire Manual before starting 14. Use correct amperage extension cords. machinery. Machinery may cause serious injury if Undersized extension cords overheat and lose not correctly used.
  • Page 19 Shrinker Stretcher Safety Instructions Machinery House requires you to read this entire Manual before using this machine. 1. Maintenance. 8. Guards. Make sure all moving parts are Do not operate this machine without the locked down before any inspection, adjustment or correct guards in place.
