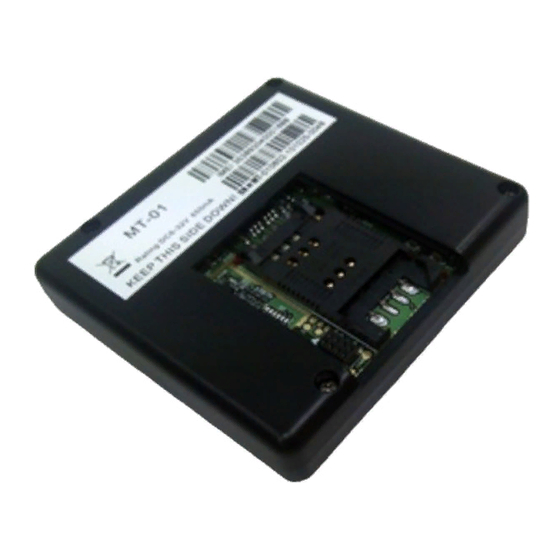

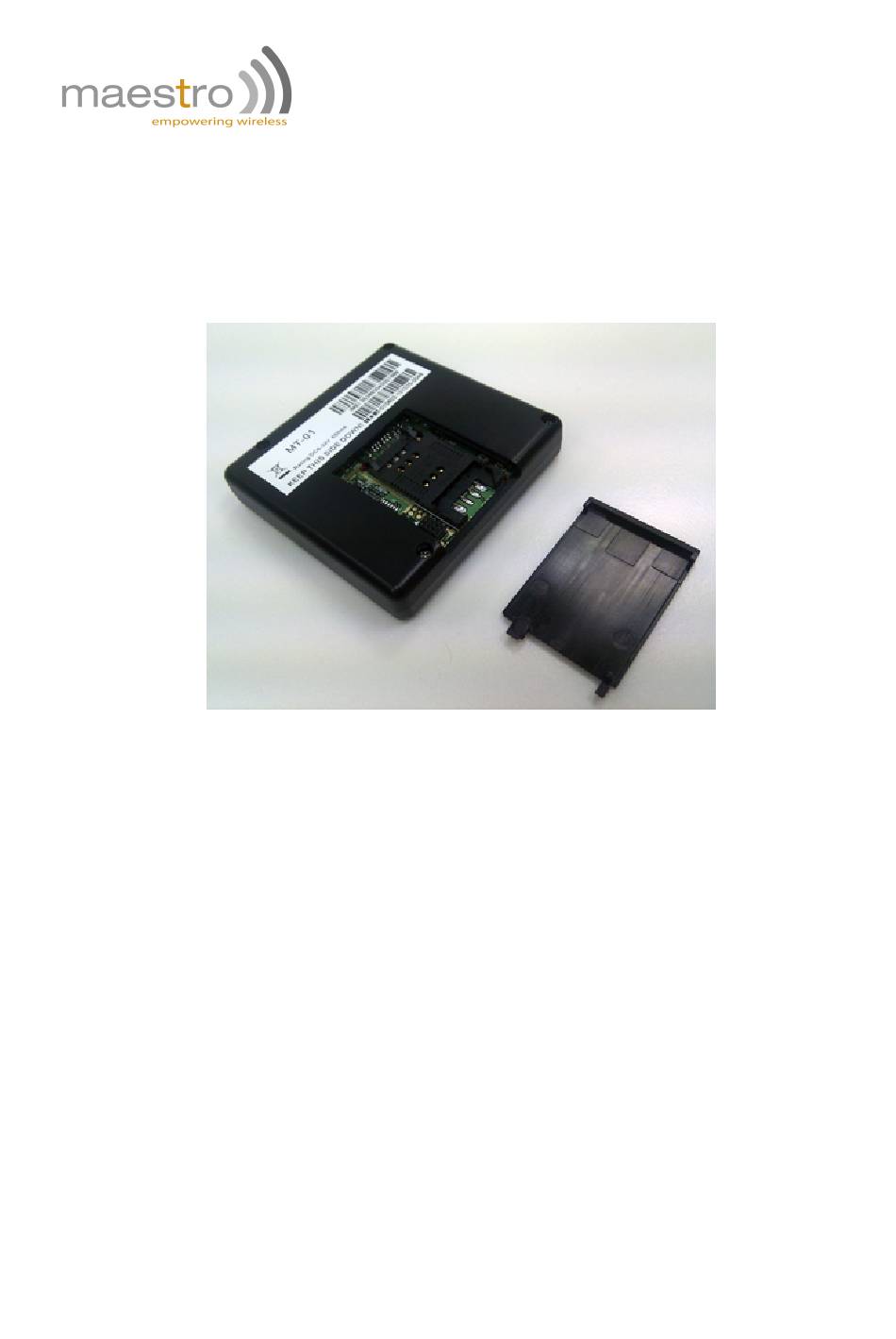

- Page 1 MT-01 ICRO RACKER & S RODUCT PECIFICATIONS OFTWARE MANUAL FOR VERSION MAESTRO WIRELESS MAIL CONTACT MAESTRO WIRELESS : 852 2869 0688 : 852 2525 4701 3603-3609, 36/F, 118 C DDRESS ONNAUGHT HEUNG...
- Page 2 Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com...
- Page 3 User shall assume the entire risk of using or relying on this software, solution, application. In no event will Maestro Wireless Solutions Ltd. be liable for any loss or damage including without limitation, indirect or consequential loss, damage, or any loss, damage whatsoever arising from loss of data or profit arising out of, or in connection with, the use of this software, application or solution.
- Page 4 Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com...
-
Page 5: Table Of Contents
4.2 Run a test in your car ........23 5 Software Manual Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong... - Page 6 SG303: Set Polygon region ....... . . 37 Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd.
- Page 7 Condition ......... . . 51 Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd.
- Page 8 7.4 Reports example for parser development ......54 Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd.
- Page 9 – Connect the modem only according to the instruction manual. Failure to do it will void the warranty Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong...
- Page 10 Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com...
-
Page 11: Product Specifications
Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong... -
Page 12: Environmental
– Shock & Vibration: SAE J1211 compliant 1.3 Power Supply – Supply voltage range: 6 to 32V DC Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com... -
Page 13: Gsm / Gprs
16±3dB (DC=3.0V) Noise Figure 1.3dB typical (DC=3.0V) Voltage 3.0±0.3V Current(DC= 3.0±0.01V) 5.0±1mA as defined in Chapter 5 Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com... -
Page 14: Status Indicator
– Periodic reporting of vehicle status (time and/or distance based) – Call screening See section 2.1.2 Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com... -
Page 15: Compliance
– FCC Part 15B, 22H & 24E certification – PTCRB certification – CE (R&TTE directive) – ROHS Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com... - Page 16 Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com...
-
Page 17: Optional Accessories
– 10 pin molex connector – In-line Fuse holder with glass fuse on the cable – Relay socket – Relay Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com... -
Page 18: 10-Pin Connector Assignment
It embeds its own charging circuit, a two cells Lithium Polymer battery and protection circuits in a single housing. Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong... -
Page 19: Specifications
The backup battery has been custom made, it includes a protection and charging circuit. Don’t try to use any third-party battery on the wire harness connector. Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong... - Page 20 Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com...
-
Page 21: Do And Do Not
– Send all the configurations commands in a row without waiting for the SMS acknowledgment. Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong... - Page 22 Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com...
-
Page 23: Step By Step - Quick Start Guide
8. Put the tracker under the sky (follow instructions on the MT-01 casing), verify that the G red LED goes solid. You can now connect to the m2mgateway.net website. 9. Please contact Maestro Wireless Solutions to get access credentials for the M2Mgateway.net website if necessary (provide the IMEI number of the tracker) to obtain login informations 10. - Page 24 5. Back on the website, log on the m2mgateway.net platform, and check your trip on the map. Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong...
-
Page 25: Software Manual
It is recommended that this is the first command to send when setting up the unit (although it can be replaced by the more versatile SG106) Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong... -
Page 26: Sg102: Set Username, Password, Apn
M2Mgateway.net evaluation page. These settings are automatically stored in flash memory Example: Need to configure TCP server for report on port 6000 Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com... -
Page 27: Sg104: Select Wired Ignition Or Virtual Ignition Types
SG106: Set port, IP address, username, password, APN, SMS number, and protocol Command: SG106,<PORT>,<IPA>,<UN>,<PW>,<APN>,<SVN>,<UT> Response (SMS): @<ID>,106,<PORT>,<IPA>,<UN>,<PW>,<APN>,<SVN>,<UT>! Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com... -
Page 28: Sg131: Query Device Firmware Revision
– Where <IPA> is server’s IP address – Where <UN> is user name – Where <PW> is password Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com... -
Page 29: Sg133: Query Ftp Settings
If value set to 0, then periodic location reporting will be disabled. Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong... -
Page 30: Sg202: Set Ignition Off Periodic Location Reporting & Alert
Example: Set alert of Ignition OFF and report every hour Command: SG202,3600,1 Response: @352238020015913,202,3600,1! SG203: Set direction change threshold Command: SG203,<TH_DC> Response (SMS): @<ID>,203,<TH_DC>! Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com... -
Page 31: Sg204: Set Speed Threshold
For the format of this alert message, please refer to event number 607 described in chapter 6. Default setting: <TH_MI> = 0 Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong... -
Page 32: Sg206: Set Low Battery Detection
Example: Set battery disconnection alert and report every 15min. Command: SG207,900,1 Response: @352238020015913,207,900,1! SG208: Set Heartbeat reporting / Power up alert Command: SG208,<INT_HB>,<ALT_PU> Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com... -
Page 33: Sg209: Set Idle Alert Period
Response (SMS): @<ID>,210,<TOW>! Tow means your car engine is not running, but your car is moving. Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com... -
Page 34: Sg211: Sets Commands From Sg201 To Sg210 In One, With Profile Name
– Where <TOW> is for controlling the detection of tow – Where <PF> is the profile name (max. 10 char.) Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong... -
Page 35: Sg231: Query Current Interval, Alert And Threshold Settings
– Where <TOW> is for controlling the detection of tow – Where <PF> is the profile name Example: Command: SG231 Response: @352238020015913,231,0,0,0,0,0,0,0,0,0,0,0,0,0,0,3,0,0,FGT! Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com... -
Page 36: Commands For Setting Up Geofence
– Where <C_LAT> is the latitude of center (max 8 char, 0.00000) – Where <C_LON> is the longitude of center (max 8 char, 0.00000) Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong... -
Page 37: Sg303: Set Polygon Region
– Where <IDX> is the index number 0 to 9 assigned to each geofence – Where <MODE> is mode: Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong... -
Page 38: Sg351: Delete All Geofences
Note: If no change the <SSN>, you can use the “SG401,1„,” to just enable it. Example: Set SMS number screening 99887766 Command: SG401,1,99887766„ Response: @352238020015913,401,1,99887766,*,*! Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com... -
Page 39: Sg401,2: Query Sms Number Screening List
This will reset the entire modem and revert back to all non-volatile parameters Example: One shot reboot Command: SG501 Response: @352238020015913,501! Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com... -
Page 40: Sg502: Erase Entire Non-Volatile Memory
– Where <D> is the date (10 characters YYYY/MM/DD) – Where <T> is the time (8 characters HH:MM:SS) Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong... -
Page 41: Sg532: Query Diagnostics Values
5 = roaming Note: for SMS response GSM registration is required, so only states 1 and 5 will appeared. Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong... -
Page 42: Sg533: Check Gps And Communication Status
– Where FC is the FTP connect state during DOTA operation – Where <x> is the state of respective functions Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong... -
Page 43: Sg551: Sets Output For External Starter Relay
Default setting: <STARTER> = 1 meaning that the starter is enabled. Example: One shot set output for starter relay Command: SG551,0,2 Response: @352238020015913,551,FGT,1,13.4,23,0,1,2009/08/22,02:24:49,22.58552,145.4589,100,20.5, 25.5,5,1.5,104.25! Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com... -
Page 44: Sg552: Set Buzzer Pattern
/!\ Warning: Turning on AGPS will increase the GPRS data traffic, one AGPS fix requires data traffic of approximately 2KB. Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong... -
Page 45: Sg555: Change The Voltage Detection Level For The Virtual Ignition
Example: Switch the digital output 2 to High. Send: SG556,1 Response: @0123456789012,556,1! SG557: Read the Analog input Command: SG557 Response (SMS): @UID,557,<AI value>! Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com... - Page 46 Default setting: <AI_L> = 0 & <AI_H> = 0 Example: Setup an alert report when analog input goes over 3.75V. Send: SG558,0,1500 Response: @0123456789012,558,0,1500! Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com...
-
Page 47: Event-Triggered Periodic Reporting & Alert Message
Second digit = 1 or 2 (1 means out of fence violation; 2 means inside the fence violation) Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong... -
Page 48: Syntax #1: Tcp/Udp/Sms
Alert message when analog input under limit is When AI1 < AI_L, same as 531 breached Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com... -
Page 49: Syntax #2: Tcp/Udp/Sms - Geofence Reports
– Where <CR> is the Carriage Return character – Where <LF> is the Line Feed character Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com... - Page 50 Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com...
-
Page 51: Annex
Condition – The serial port is accessible after removing the lid covering the SIM card holder. – Maestro Wireless has given you a serial port adaptor that will be hooked up to the MicroTracker. Procedure 1. Load the .dwl file of the desired version into designated directory 2. -
Page 52: Procedure
Note: If DOTA is unsuccessful, the operation will be aborted and device continues to operate with the old firmware version. Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong... -
Page 53: Gps Good Fix Algorithm
7.2 GPS good fix algorithm Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong contact@maestro-wireless.com... -
Page 54: Power Saving Mode Behavior
Periodic reporting with wired ignition OFF - 705: @ 123451234512345, 705, FGT, 1, 12.5, 30, 0, 0, 2010/10/10, 09:09:09, 22.222222, 114.141414, 45.6, 0.0, 160.0, 8, 1, 25 ! Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong... - Page 55 Alert message when wired ignition ON detected - 611: @ 123451234512345, 611, FGT, 1, 14.7, 30, 0, 1, 2010/10/10, 09:09:09, 22.222222, 114.141414, 45.6, 0.0, 160, 8, 1, 25 ! Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong...
- Page 56 Alert message when analog input under limit is breached - 621: @ 123451234512345, 621, FGT, 1, 12.5, 30, 0, 0, 2010/10/10, 09:09:09, 22.222222, 114.141414, 45.6, 0.0, 160, 8, 1, 25 ! Confidential, the whole document is the sole property of Maestro Wireless Solutions ltd. 3603-9, 36/F., 118 Connaught Road West, Sheung Wan, Hong Kong...
