Summary of Contents for EAW CIS300

  • Page 1 2-Way Ceiling Monitor INSTRUCTION MANUAL �� �� �� ��� �� ��� ���� ��� ��� ���� ���� ����� ����� ���� ��������� ����...
  • Page 2 EAW Commercial product and in the instruction manual. 1.3. Water and Humidity — Do not use this EAW Commercial product near water; for example, in the vicinity of a bath tub or sink, in a damp cellar, near a swimming pool, etc.
  • Page 3: Product Description

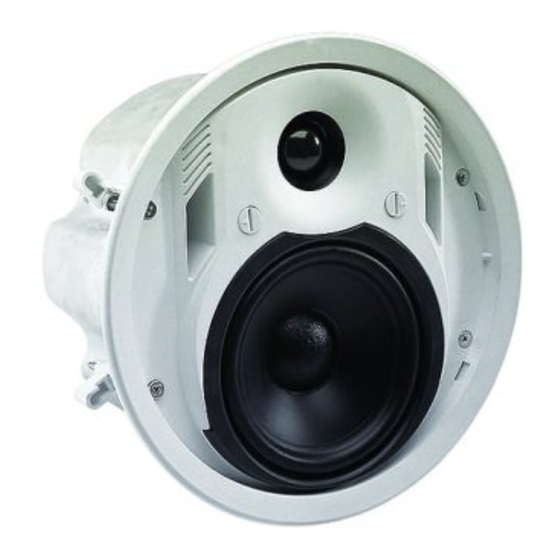

    The CIS300 is ideal for use in business music systems and foreground/background music applications. Installing the CIS300 is simple. The one-piece assembly includes the backcan, mounting tabs (clamps), front baffle rim,...
  • Page 4 SPL at the outer edges of the listening plane. The CIS300 is –6 dB at a horizontal off-axis angle of 70º from 1 kHz to 6 kHz (140º...
  • Page 5 B2. Open the terminal cover plate (7) on the back of the CIS300. Use a threaded conduit set-screw coupler (not supplied: For 1/2" conduit, use Thomas&Betts Steel City model TC221-SC or UL listed equivalent into the opening exposed by removing the strain relief assembly.
  • Page 6: Specifications

    IN. If connecting another speaker in a distributed system (in parallel), connect the speaker cable running to the next speaker to the “+” and “–” terminals labeled LOOP THRU. B7. Close the terminal cover plate (7) and tighten the locking screw (7a) firmly.
  • Page 7 Release for Discrete Products and Their Accessories Installed in Air- handling Spaces ������� �������� ������� �������� CIS300 Frequency Response vs. Impedance CIS300 Beamwidth vs. Frequency Vert BW Horz BW Inputs/Outputs: Dimensions Diameter x Height: Front of Ceiling Tile to Back of Back Can:...
  • Page 8: Service Information

    TEL toll free within US/Canada 888.337.7404 | TEL outside US 425.892.6503 | FAX 425.485.1152 © 2004 LOUD Technologies Inc. All Rights Reserved. EAW Commercial is a registered trademark of LOUD Technologies Inc. 8. SERVICE INFORMATION In the event that your CIS300 should require servicing, please follow these instructions: 1.
