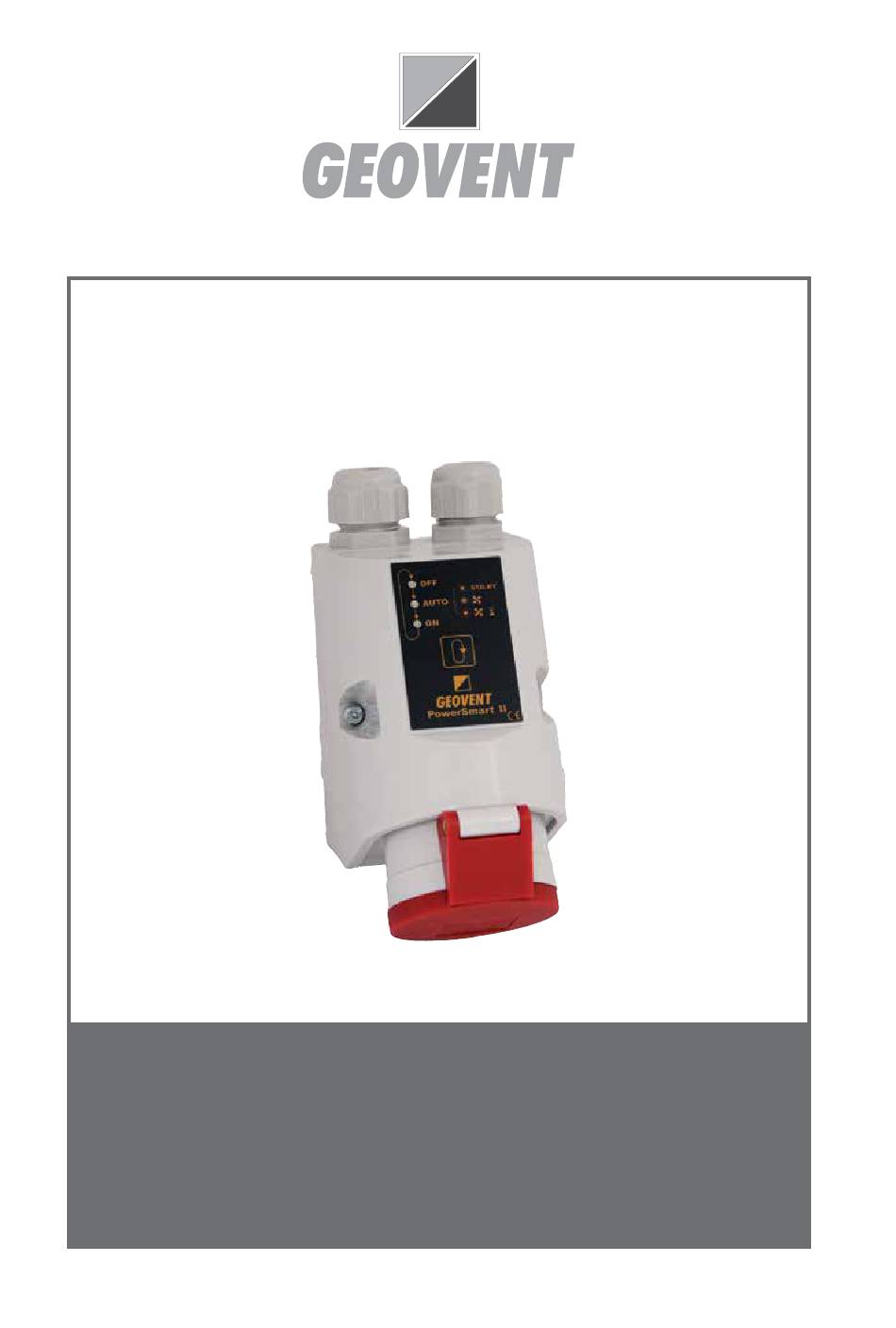

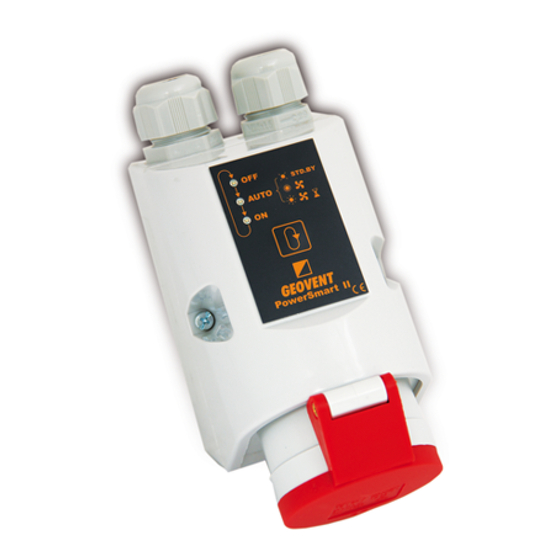

- Page 1 U S E R M A N U A L G e o v e n t P o w e r S m a r t I I with built-in 24V transformer for direct connection of motordamper www.geovent.com.pl Version 2.0 29.08.12...
- Page 2 Table of content Usage 1.0 General safety measures 2.0 Usage Geovent PowerSmart II with a built-in 24 volt trans- 3.0 Technical Data former for direct connection to motor damper. 4.0 Touch options in front panel 5.0 Adjustment PowerSmart is a powerful power outlet with a built- 6.0 Daily use...
- Page 3 will light. Technical Data: Short press again: PowerSmart goes into the Supply: 3x230 volts or 4x400 volts ac afterrunning mode and the LED flashes amber Afterrunning time: Adjustable from 2 during the preset time. sec. and 4 minutes in the standard Long press: PowerSmart turns off.
- Page 4 NB: When closing the lid, Phase from installation ensure that the flat cable in not damaged. through sensor to terminal in CEE-outlet Afterrun trim 5 4 3 2 1 Sensitivity trim Connection to external, Sensorcoil manual switch e.g. single polar switch mounted in the funnel.
- Page 6 Setup Calibrating the PowerSmart II The PowerSmart II outlet is set to OFF mode (red LED When using, press the button just briefly. Pressing the ligths continuously). Set the connected machine button for longer time will initiate the calibration process.
- Page 7 Pressing the button wil put the PowerSmart in manual mode and override the relay activation. Pressing the button again will cancel the override and initiate the set afterrn time. Troubleshooting The protective fuse in the PowerSmart II can be blown. Change if needed. The fuse is 200mA.
- Page 8 (89/392/EEC amended by the directive 91/368/EEC) with special reference to appendix 1 ____________________________ in the Directive regarding basic health and safety requirements in connection with the construction and manufacturing of machinery. www.geovent.com.pl • tel. +48 799923945 • e-mail:biuro@geovent.com.pl...
