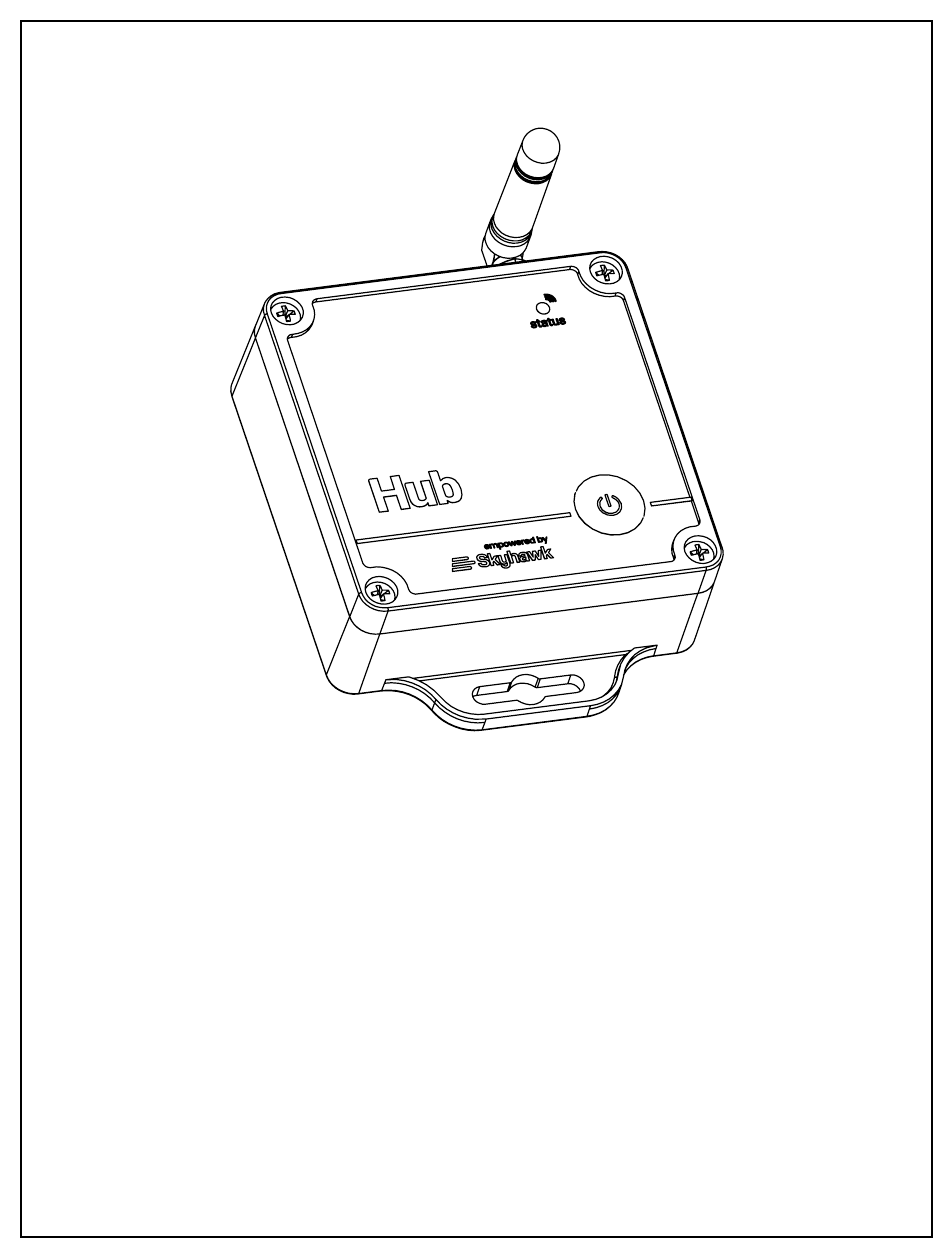

Hub Lite & Hub Pro
Installation & User Manual
Please setup and register this device FIRST!
In order to receive alerts, the Skyhawk Hub must be used in conjunction with a
Skyhawk Sensor (sold separately) and the Skyhawk CE smartphone app.
See the specific Skyhawk Sensor users manual for additional information
on connecting your devices.
Advertisement
Summary of Contents for Skyhawk Hub Lite
- Page 1 Installation & User Manual Please setup and register this device FIRST! In order to receive alerts, the Skyhawk Hub must be used in conjunction with a Skyhawk Sensor (sold separately) and the Skyhawk CE smartphone app. See the specific Skyhawk Sensor users manual for additional information...
-
Page 3: Table Of Contents
Safety, FCC and Warranty....................16 - 17 In order to receive alerts, the Skyhawk Hub must be used in conjunction with a Skyhawk Sensor (sold separately) and the Skyhawk CE smartphone app. See the specific Skyhawk Sensor users manual for additional information on connecting your devices. -
Page 4: Layout Summary
14. Function Button - This multi-use button can be used for various functions. See pages 10 and 11 for more details. Antenna - This adjustable screw-on antenna is used to receive RF signals from the Skyhawk Sensors. - Page 5 Front of Unit (with cover removed) Cover Overlay Connector Battery Holder Cover Overlay Connector - This connector is used to connect the cover’s overlay 6-pin connector. Battery Holder - The battery holder accommodates 3 x AA batteries. It is suggested that 1.5 volt lithium batteries are used for extended life.
-
Page 6: Installation
Hub Installation The Hub can be installed using various methods including, but not limited to, dual-lock strips, magnets or rubber feet. Some of these mounting accessories may be included with the Hub accessory kit. Method 1 : Dual-Lock Strips (if included) Step 1: In the accessory kit, locate the two sets of dual-lock strips. - Page 7 Hub Installation (continued) Method 2 : Self-Stick Mounting Magnets (if included) Step 1: In the accessory kit, locate the two self-stick mounting magnets. Step 2: Clean the rear surface of the Hub with 70% isopropyl alcohol for proper bonding of the magnets. Step 3: Peel off the paper to expose the adhesive and affix magnets to the rear of the unit.
- Page 8 Step 3: Peel back the paper on the rubber feet to expose the adhesive and affix them to the designated areas on the back of the unit. Step 4: The Hub is ready to be mounted. Place the Skyhawk on a flat surface, such as a table or shelf.
- Page 9 Hub Installation (continued) Installation - Safety Guidelines: Make sure when placing the Hub on an object that it is securely attached and cannot fall off and injure someone or fall onto a hard surface and damage the unit. Make sure that when placing the Hub that it will not interfere with other equipment. Prevent Falling Hazard Prevent Unit Fall Damage...
-
Page 10: Start-Up Operation
Step 3: After unit finishes the power ON process, the GREEN LED will blink twice and the unit will automatically send a power ON alert to the Skyhawk CE app via the cellular network. If the connection is unsuccessful, then the Skyhawk CE will not acknowledge any communication and the LED will blink RED twice. -
Page 11: Shut-Down Operation/Reset Operation
Hub Shut-Down Operation When the Hub is not going to be used for more than a few weeks it should be powered down to conserve battery life. Step 1: Power OFF the Hub by pressing and holding the function button; release when RED LED starts blinking. Unit will continue to power OFF by flashing the RED LED until process is completed. -
Page 12: Battery Replacement
Hub Battery Replacement The Hub comes with three AA 1.5 volt lithium batteries already installed but in time these will need to be replaced. When they are replaced it is suggested to use a high quality name brand AA lithium battery like an Energizer Advanced Lithium or Ultimate Lithium battery. - Page 13 Hub Battery Replacement (continued): Step 3: Remove and dispose of the old batteries properly. Step 4: Insert new batteries taking note of the direction symbols. Step 5: Replace cover making sure overlay connector is seated to the on-board connector. Replace cover screws. Turn screws clockwise until top is seated.
-
Page 14: Led Indicators & Sensitivity Adjustment
* These indicators are used to verify that the data from a sensor trigger, configuration change or firmware update has been successfully or unsuccessfully communicated between the unit and cloud server/Skyhawk app. While unit is ON and not being triggered a status LED will flash every 5 seconds: Last transmission was successful -------------->... - Page 15 This page intentionally left blank.
-
Page 16: Safety, Fcc And Warranty
IMPORTANT NOTICE: The Skyhawk Hub uses a 3rd-party Wireless Service which uses radio technologies and is subject to transmission and service area limitations, which may include inter- ruptions and dropped connections caused by atmospheric, topographical or environmental conditions, cell site availability, cellular network equipment or its installation, governmental regulations, system limitations, maintenance or other conditions or activities affecting the operation of the Wireless Service. - Page 17 Product (“you”/ “your”). It does not extend to any subsequent owner or other transferee of the Product. WHAT DOES THIS WARRANTY COVER? This limited warranty covers defects in materials and workmanship of the SKYHAWK HUB (the “Product”) for the Warranty Period as defined below. WHAT DOES THIS WARRANTY NOT COVER? This limited warranty does not cover any damage due to: (a) transportation;...
